Section 5 Voltage Detection Circuit (LVD)
Rev. 2.00 Sep. 24, 2008 Page 109 of 1468
REJ09B0412-0200
5.3
Voltage Detection Circuit
5.3.1
Voltage Monitoring Reset

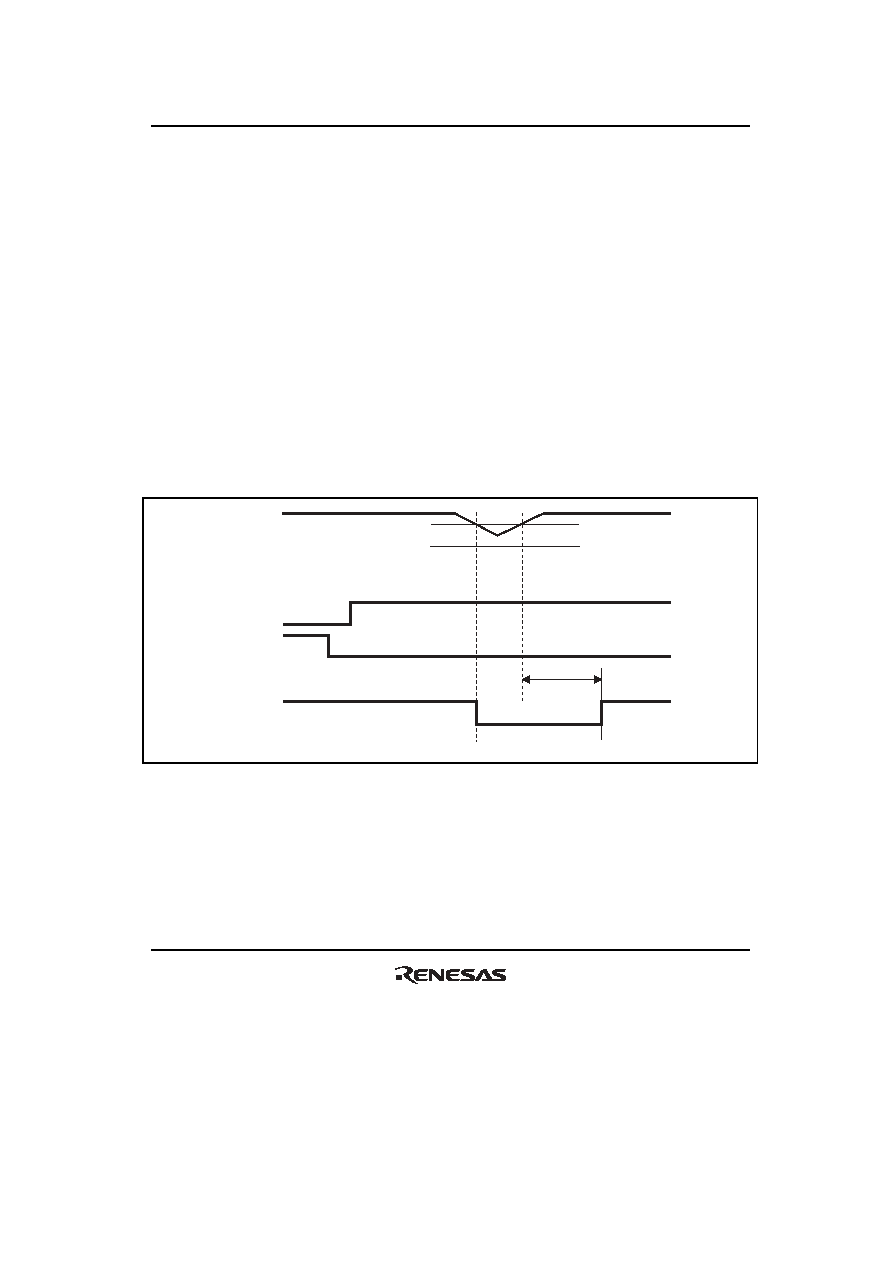

Figure 5.2 shows the timing of a voltage monitoring reset by the voltage-detection circuit.
When Vcc falls below Vdet in the state where the LVDE bit in LVDCR has been set to 1 and the
LVDRI bit has been cleared to 0, the LVDF bit is set to 1 and the voltage-detection circuit
generates a voltage monitoring reset.
Next, after Vcc has risen above Vdet, release from the voltage-monitoring reset takes place after a
period for stabilization (t
por) has elapsed. The period for stabilization (tpor) is a time that is generated
by the voltage detection circuit in order to stabilize the Vcc and the internal circuit of the LSI.
When a voltage-monitoring reset is generated, the LVDF bit is set to 1.
For details, see section 30, Electrical Characteristics.
Vdet
Vpor
LVDE
LVDRI
Internal
reset signal
(Low)
Stabilization time (t
POR)
Vcc
↓Write 1
↓Write 0
Figure 5.2 Timing of the Voltage-Monitoring Reset
