Data Sheet
ADP1053
Rev. A | Page 41 of 84
SOFTWARE GUI
A free software GUI is available for programming and config-
uring the ADP1053. The GUI is designed to be intuitive and
dramatically reduces power supply design and development time.
The software includes filter design and power supply PWM
topology windows. The GUI is also an information center,
displaying the status of all readings, monitoring, and flags on
the ADP1053.
For more information about the GUI, contact Analog Devices
for the latest software and a user guide.

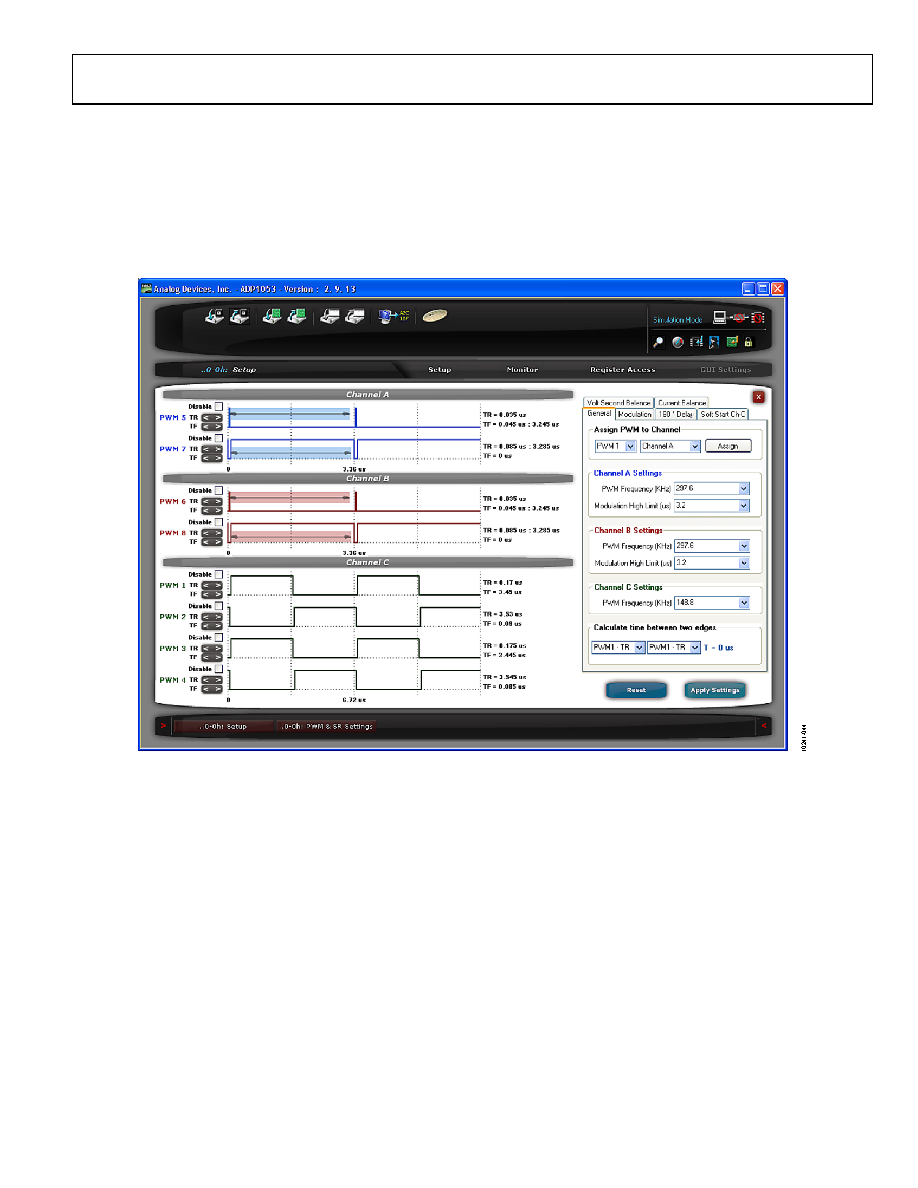

Figure 39. ADP1053 GUI, PWM Setup Window
