SSM2518
Data Sheet
Rev. A | Page 32 of 48

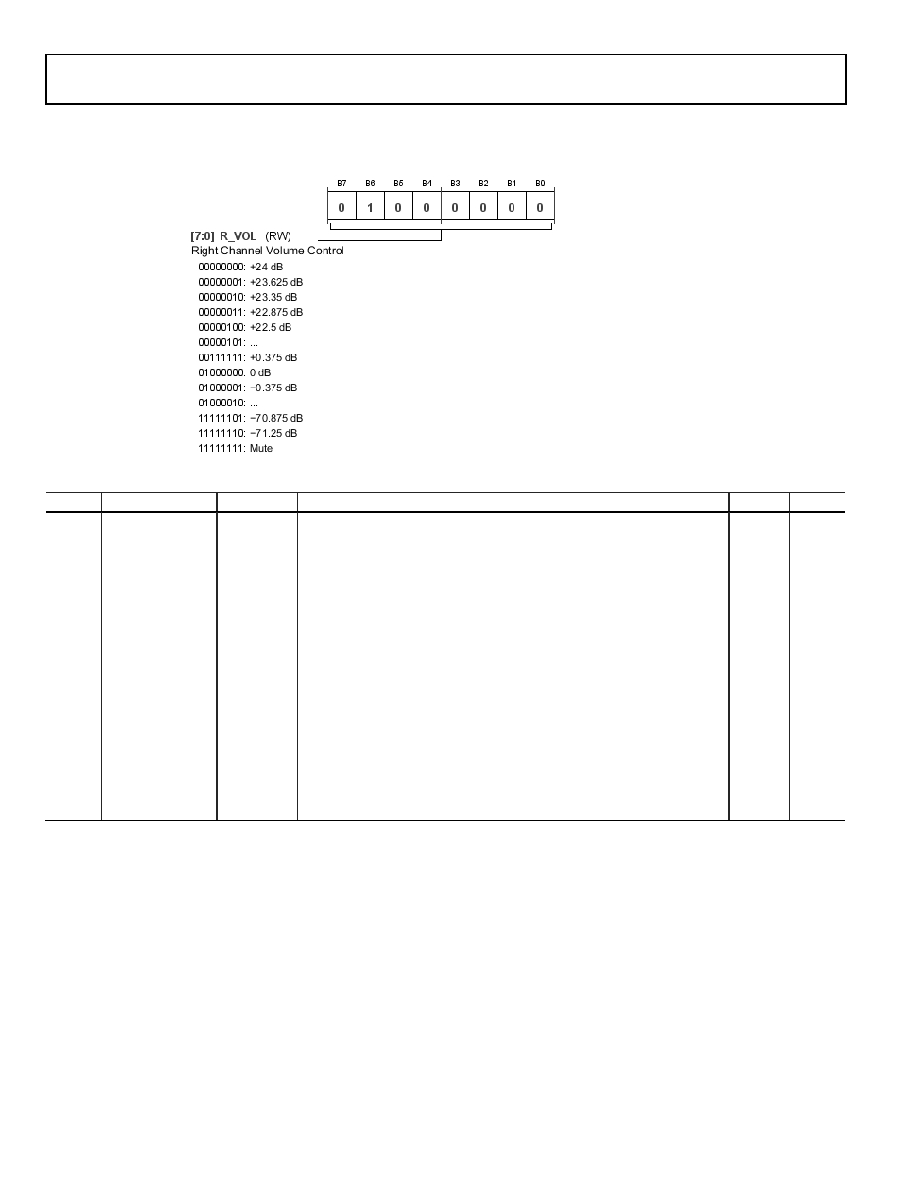

RIGHT CHANNEL VOLUME CONTROL REGISTER
Address: 0x06, Reset: 0x40, Name: Right_Volume_Control
Table 19. Bit Descriptions for Right_Volume_Control
Bits
Bit Name
Settings
Description
Reset
Access
[7:0]
R_VOL
Right Channel Volume Control. Adjusts the digital gain in 0.375 dB
increments.
0x40
RW
00000000
+24 dB
00000001
+23.625 dB
00000010
+23.35 dB
00000011
+22.875 dB
00000100
+22.5 dB
00000101
+22.125 dB
…
…
00111111
+0.375 dB
01000000
0 dB
01000001
−0.375 dB
01000010
−0.750 dB
…
…
11111101
−70.875 dB
11111110
−71.25 dB
11111111
Mute
