Data Sheet
SSM2518
Rev. A | Page 33 of 48

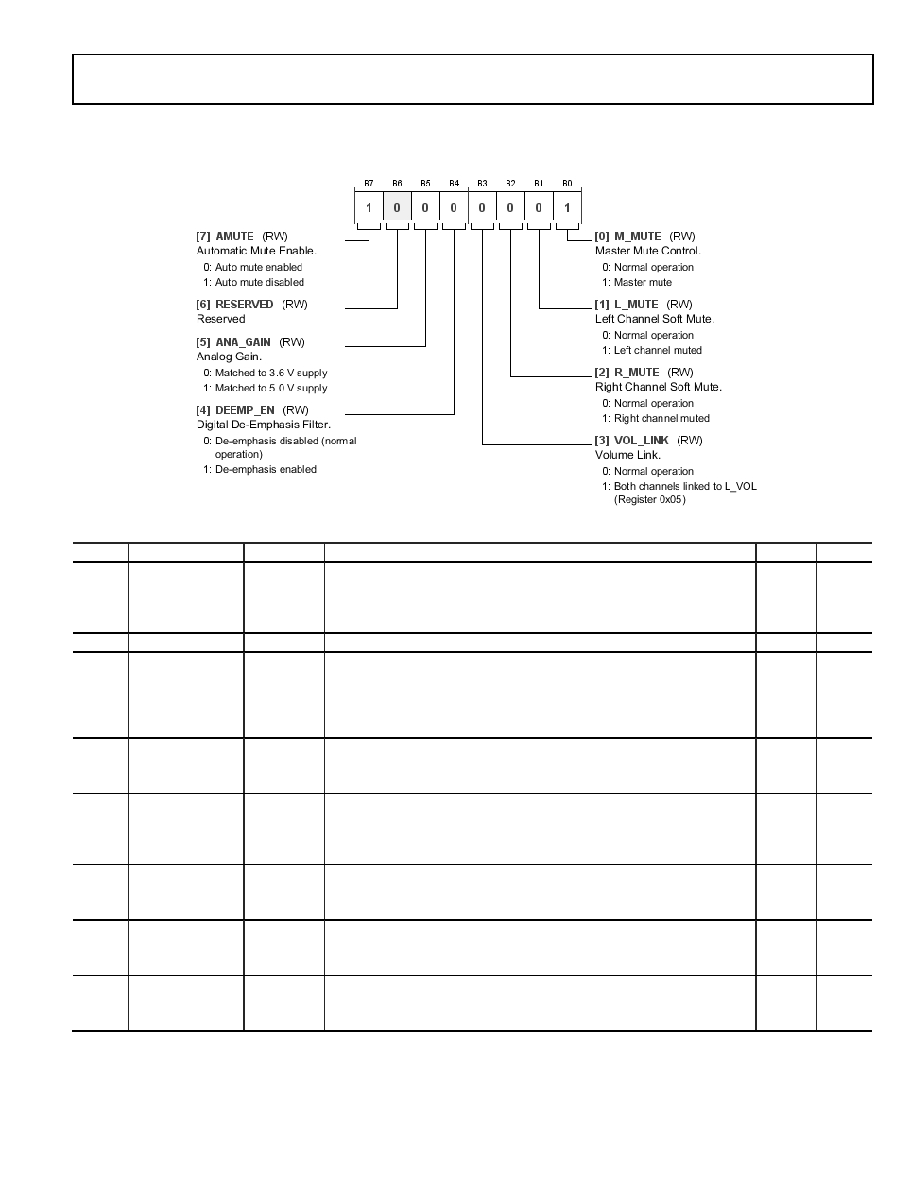

VOLUME AND MUTE CONTROL REGISTER
Address: 0x07, Reset: 0x81, Name: Volume_Mute_Control
Table 20. Bit Descriptions for Volume_Mute_Control
Bits
Bit Name
Settings
Description
Reset
Access
7
AMUTE
Automatic Mute Enable. After 2048 slots (1024 stereo samples) have been
received with zero data, the outputs mute until nonzero data arrives.
0x1
RW
0
Automute enabled
1
Automute disabled
6
RESERVED
Reserved.
0x0
RW
5
ANA_GAIN
Analog Gain. This sets the full-scale output level of the amplifier. The two
settings are scaled appropriately for 3.6 V and 5.0 V nominal supply
voltages.
0x0
RW
0
Matched to 3.6 V supply
1
Matched to 5.0 V supply
4
DEEMP_EN
Digital De-Emphasis Filter.
0x0
RW
0
De-emphasis disabled (normal operation)
1
De-emphasis enabled
3
VOL_LINK
Volume Link. When this bit is enabled, both channels respond to the left
channel volume register.
0x0
RW
0
Normal operation
1
Both channels linked to L_VOL (Register 0x05)
2
R_MUTE
Right Channel Soft Mute.
0x0
RW
0
Normal operation
1
Right channel muted
1
L_MUTE
Left Channel Soft Mute.
0x0
RW
0
Normal operation
1
Left channel muted
0
M_MUTE
Master Mute Control. This bit soft mutes both channels.
0x1
RW
0
Normal operation
1
Master mute
