M24LR16E-R

M24LR16E-R to VCD frames

Doc ID 018932 Rev 8

57/143

M24LR16E-R to VCD frames

Frames are delimited by an SOF and an EOF. They are implemented using code violation.

Unused options are reserved for future use. For the low data rate, the same subcarrier

frequency or frequencies is/are used. In this case, the number of pulses is multiplied by 4.

For the Fast commands using one subcarrier, all pulse numbers and times are divided by 2.

12.1

SOF when using one subcarrier

12.1.1

High data rate

The SOF includes an unmodulated time of 56.64 µs, followed by 24 pulses at 423.75 kHz

(fC/32), and a logic 1 that consists of an unmodulated time of 18.88 µs followed by eight

pulses at 423.75 kHz, as shown in Figure 35.

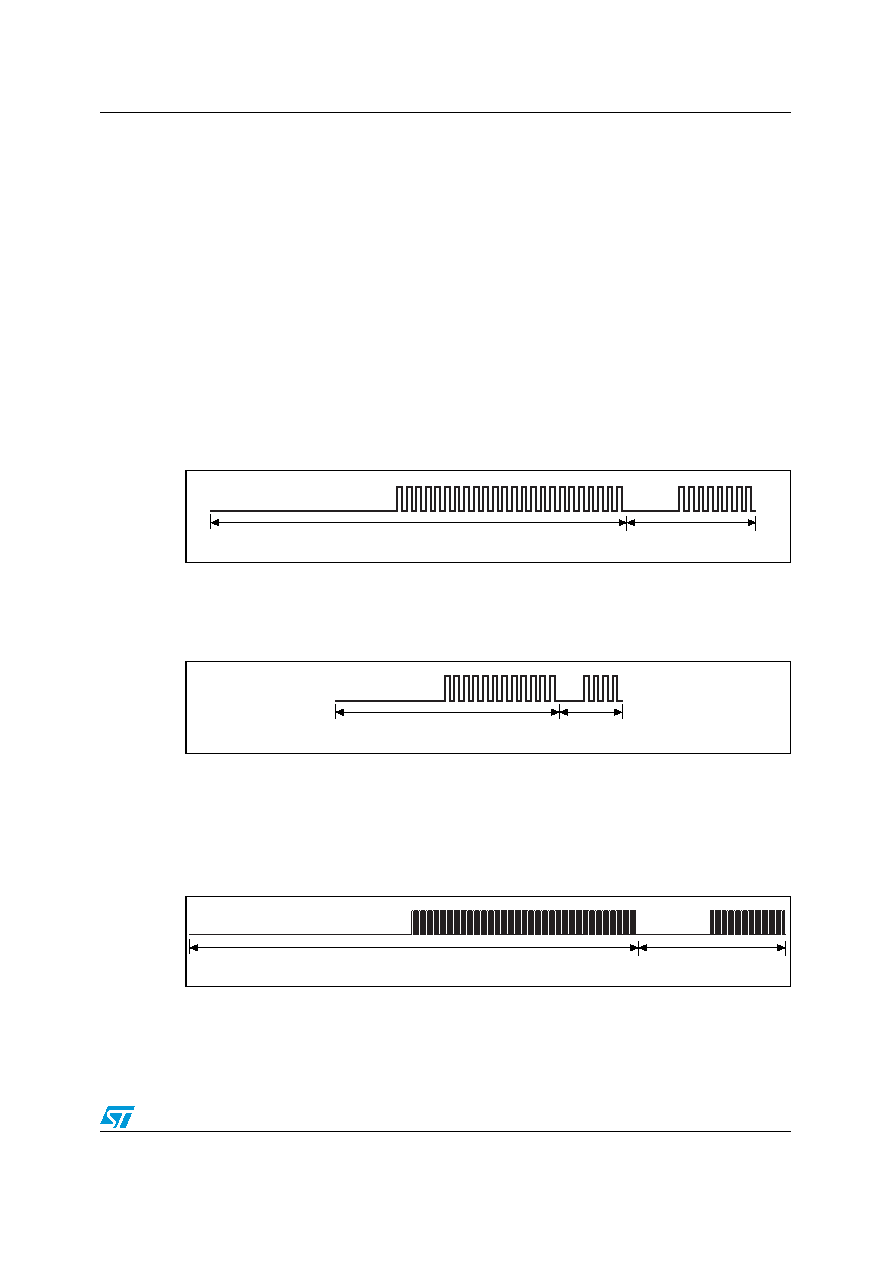

Figure 35.

Start of frame, high data rate, one subcarrier

For the Fast commands, the SOF comprises an unmodulated time of 28.32 µs, followed by

12 pulses at 423.75 kHz (fC/32), and a logic 1 that consists of an unmodulated time of

9.44 µs followed by four pulses at 423.75 kHz, as shown in Figure 36.

Figure 36.

Start of frame, high data rate, one subcarrier, fast commands

12.1.2

Low data rate

The SOF comprises an unmodulated time of 226.56 µs, followed by 96 pulses at 423.75 kHz

(fC/32), and a logic 1 that consists of an unmodulated time of 75.52 µs followed by 32 pulses

at 423.75 kHz, as shown in Figure 37.

Figure 37.

Start of frame, low data rate, one subcarrier

113.28µs

ai12078

37.76µs

56.64µs

ai12079

18.88µs

453.12µs

ai12080

151.04µs
