IR3447
37
www.irf.com
© 2013 International Rectifier
July 17, 2013

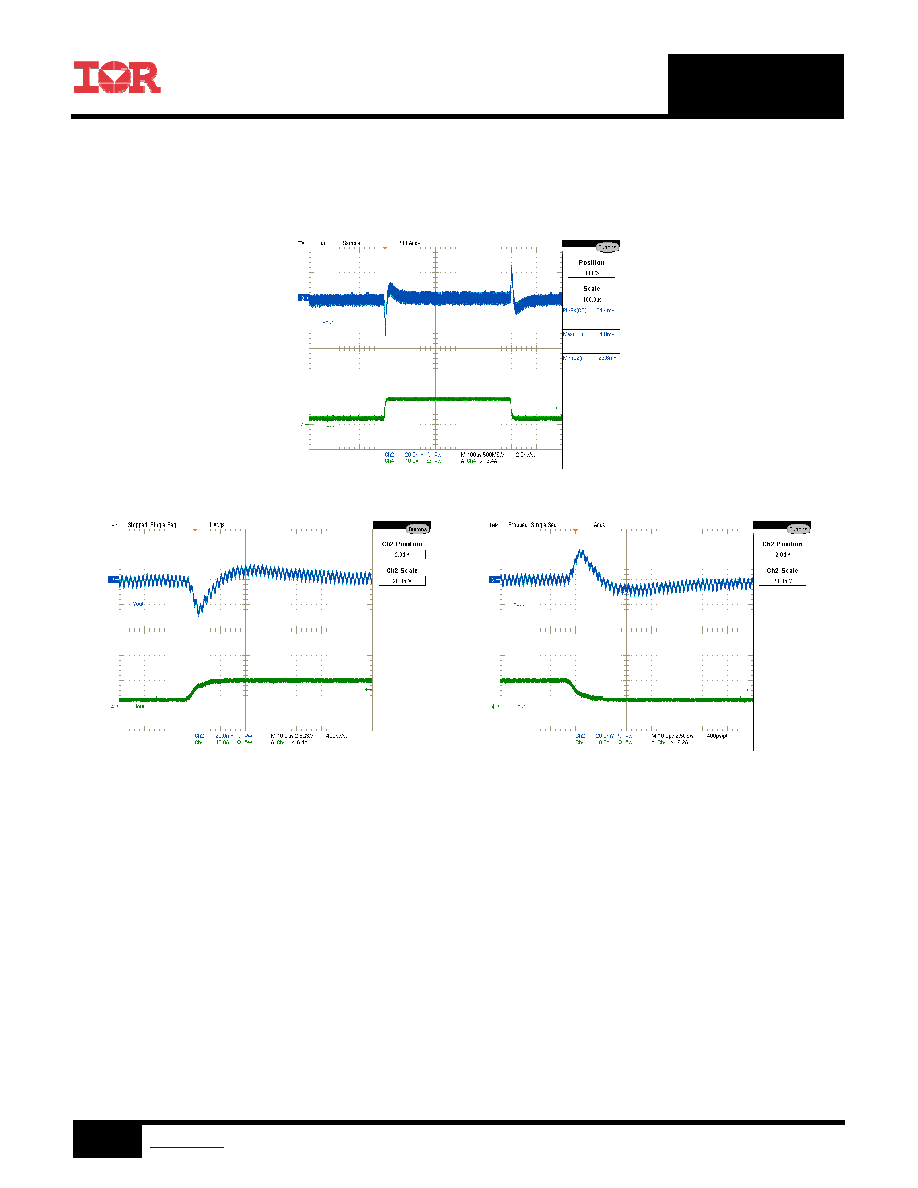

TYPICAL OPERATING WAVEFORMS
Vin=PVin=12V, Vout=1.2V, Iout=2.5A-10A, Fs=600kHz, Room Temperature, No air flow
Figure 37: Vout Transient Response, 2.5A to 10.0A step at 2.5A/uSec
CH2:Vout, CH4:Iout (10A/V)
