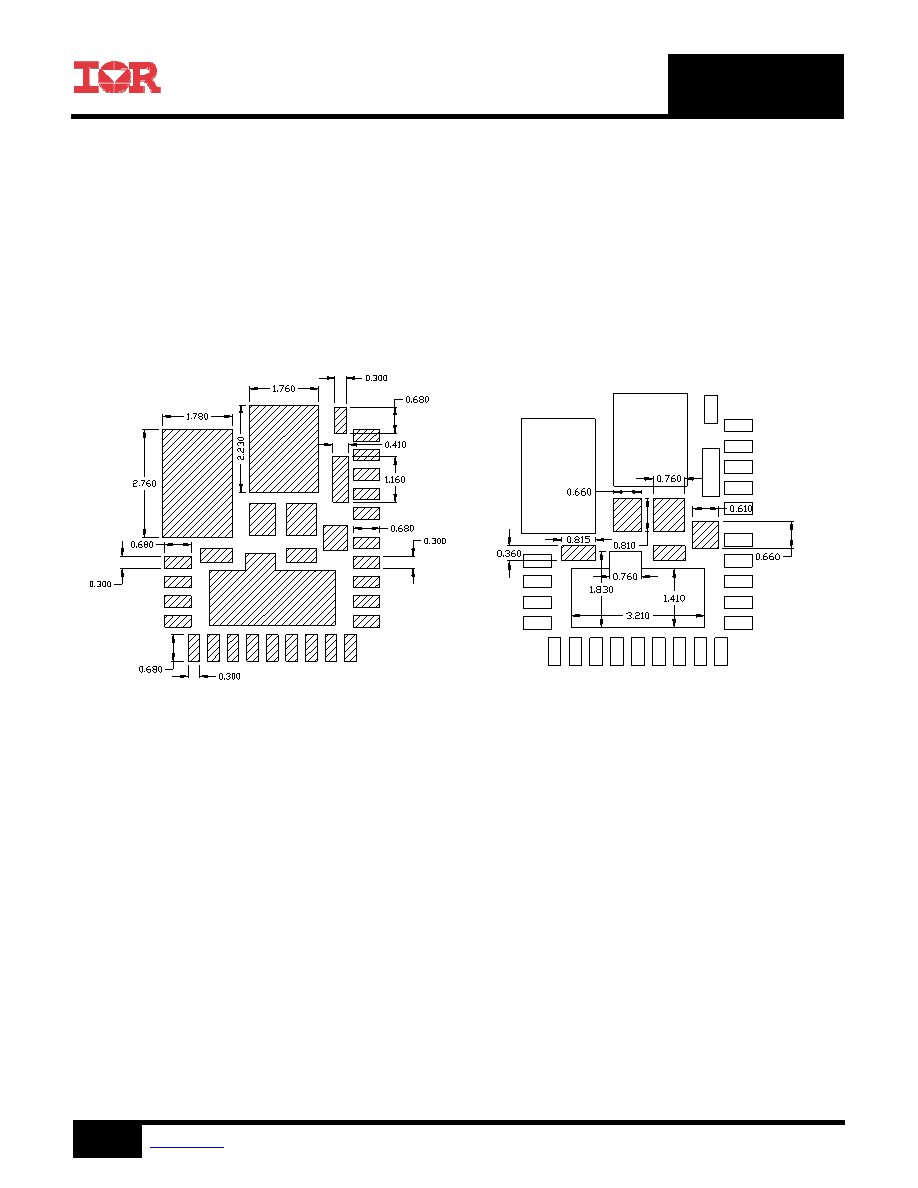

background image
IR3447
44
www.irf.com
© 2013 International Rectifier
July 17, 2013
PCB METAL AND COMPONENT PLACEMENT
Evaluations have shown that the best overall
performance is achieved using the substrate/PCB
layout as shown in following figures. PQFN devices
should be placed to an accuracy of 0.050mm on both
X and Y axes. Self-centering behavior is highly
dependent
on
solders
and
processes,
and
experiments should be run to confirm the limits of self-
centering
on
specific
processes.
For
further
information, please refer to “SupIRBuck™ Multi-Chip
Module (MCM) Power Quad Flat No-Lead (PQFN)
Board Mounting Application Note
.” (AN1132)
PCB PAD SIZES (DETAIL 1)
PCB PAD SIZES (DETAIL 2)
