AB18X5 Real-Time Clock with Power
Management Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 19 of 37
Abracon Drawing #453568
Revision: C

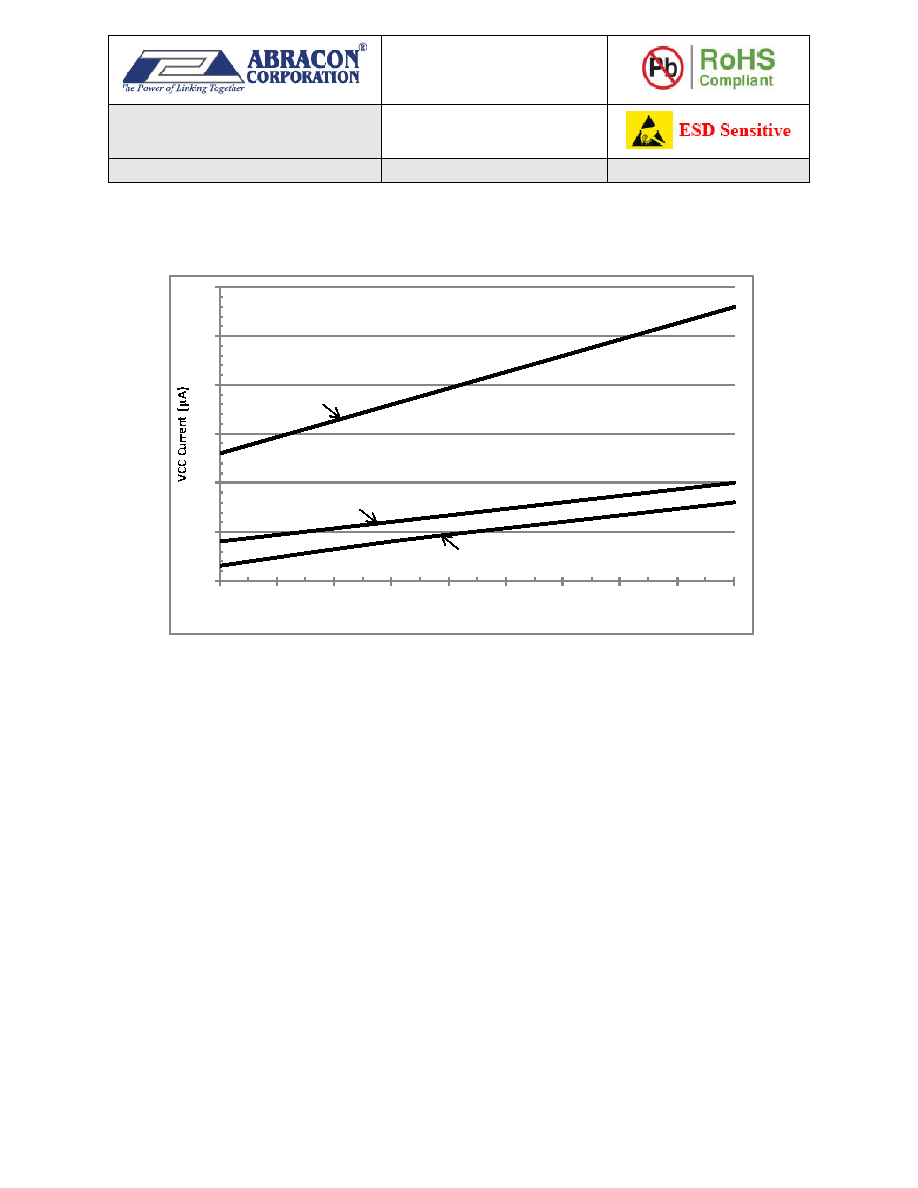

Figure 10 shows the typical VCC power state operating current during continuous I2C and SPI burst read
and write activity. Test conditions: TA = 25 °C, 0x55 data pattern, 25 s between each data byte, 20 pF
load on each bus pin, pull-up resistor current not included.
Figure 10. Typical VCC Current vs. Voltage, I
²C and SPI Burst Read/Write
0
5
10
15
20
25
30
1.8
2
2.2
2.4
2.6
2.8
3
3.2
3.4
3.6
VCC  Voltage (V)
I2CBurst Read/Write
SPI Burst Read
SPI Burst Write
TA = 25 °C
