AB18X5 Real-Time Clock with Power
Management Family
Date of Issue: October 16, 2014
3.0 x 3.0 mm
Page 32 of 37
Abracon Drawing #453568
Revision: C
7. Reflow Profile

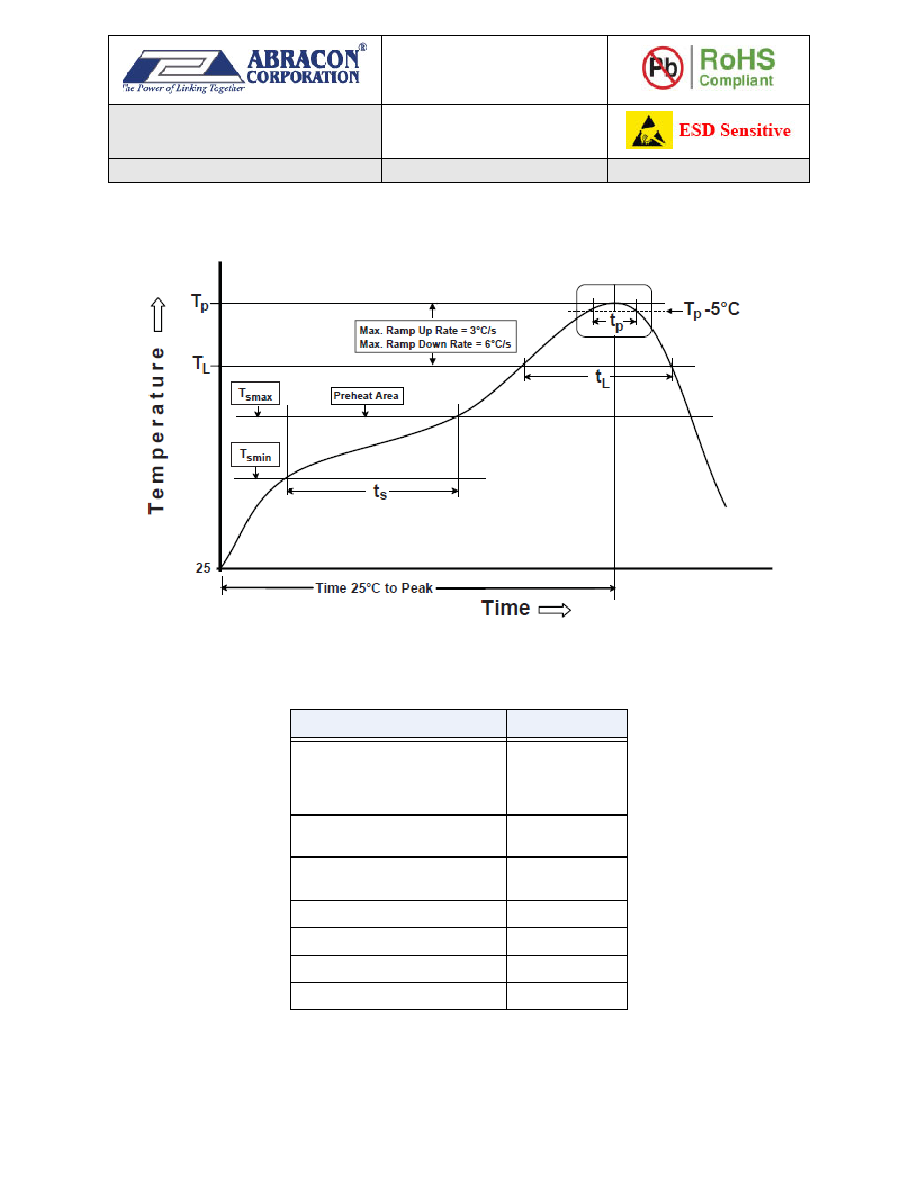

Figure 22 illustrates the reflow soldering requirements.
Figure 22. Reflow Soldering Diagram
Table 16: Reflow Soldering Requirements (Pb-free assembly)
Profile Feature
Requirement
Preheat/Soak
Temperature Min (Tsmin)
Temperature Max (Tsmax)
Time (ts) from (Tsmin to Tsmax)
150 °C
200 °C
60-120 seconds
Ramp-up rate (TL to Tp)
3 °C/second max.
Liquidous temperature (TL)
Time (tL) maintained above TL
217 °C
60-150 seconds
Peak package body temperature (Tp)
260 °C max.
Time (tp) within 5 °C of Tp
30 seconds max.
Ramp-down rate (Tp to TL)
6 °C/second max.
Time 25 °C to peak temperature
8 minutes max.
