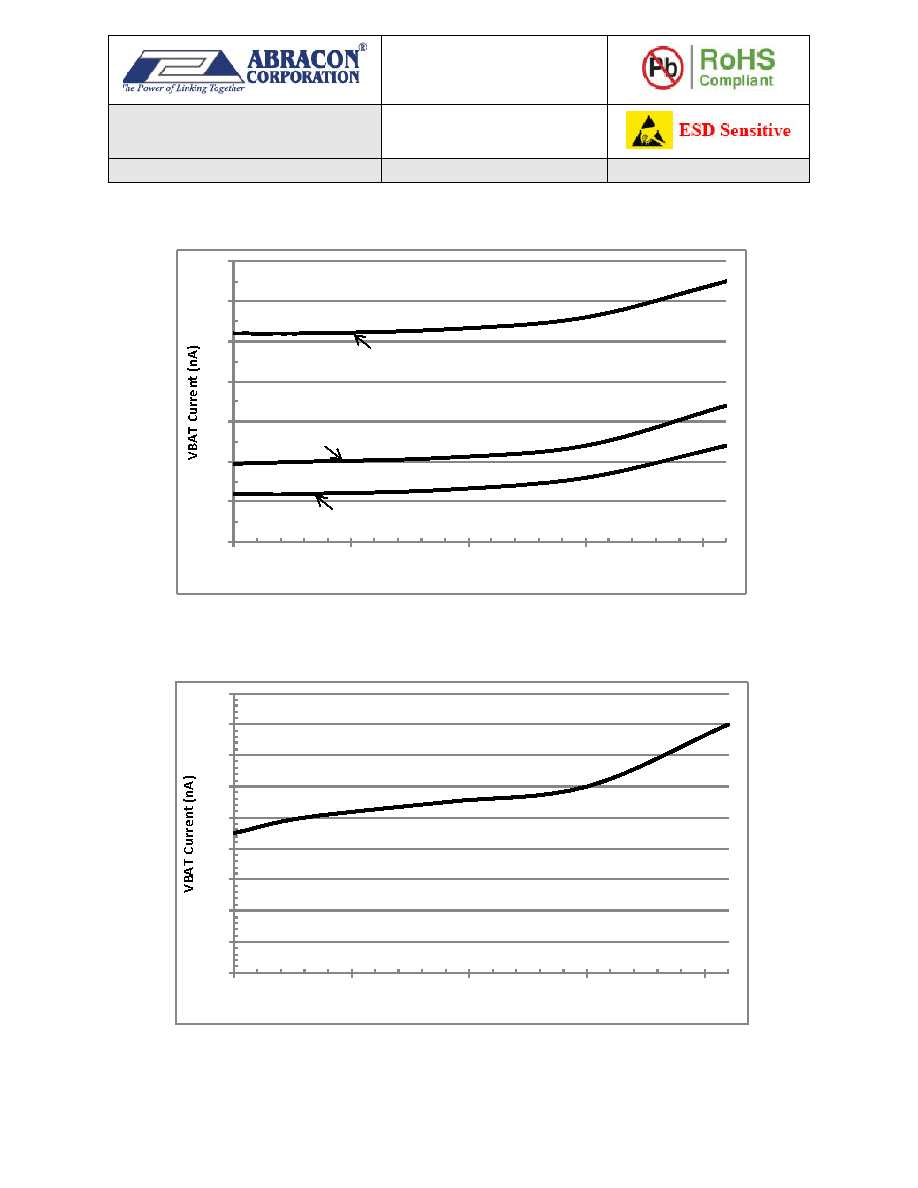

Figure 15 shows the typical VBAT power state operating current vs. voltage for XT Oscillator and RC

Oscillator modes and the average current in RC Autocalibrated mode, VCC = 0 V.

Figure 15. Typical VBAT Current vs. Voltage, Different Modes of Operation

Figure 16 shows the typical VBAT current when operating in the VCC power state, VCC = 1.7 V.

Figure 16. Typical VBAT Current vs. Voltage in VCC Power State
