SP2T PIN Diode Switch

Rev. V1

MSW200x-200

12

12

M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

DS-xxxxxxx

12

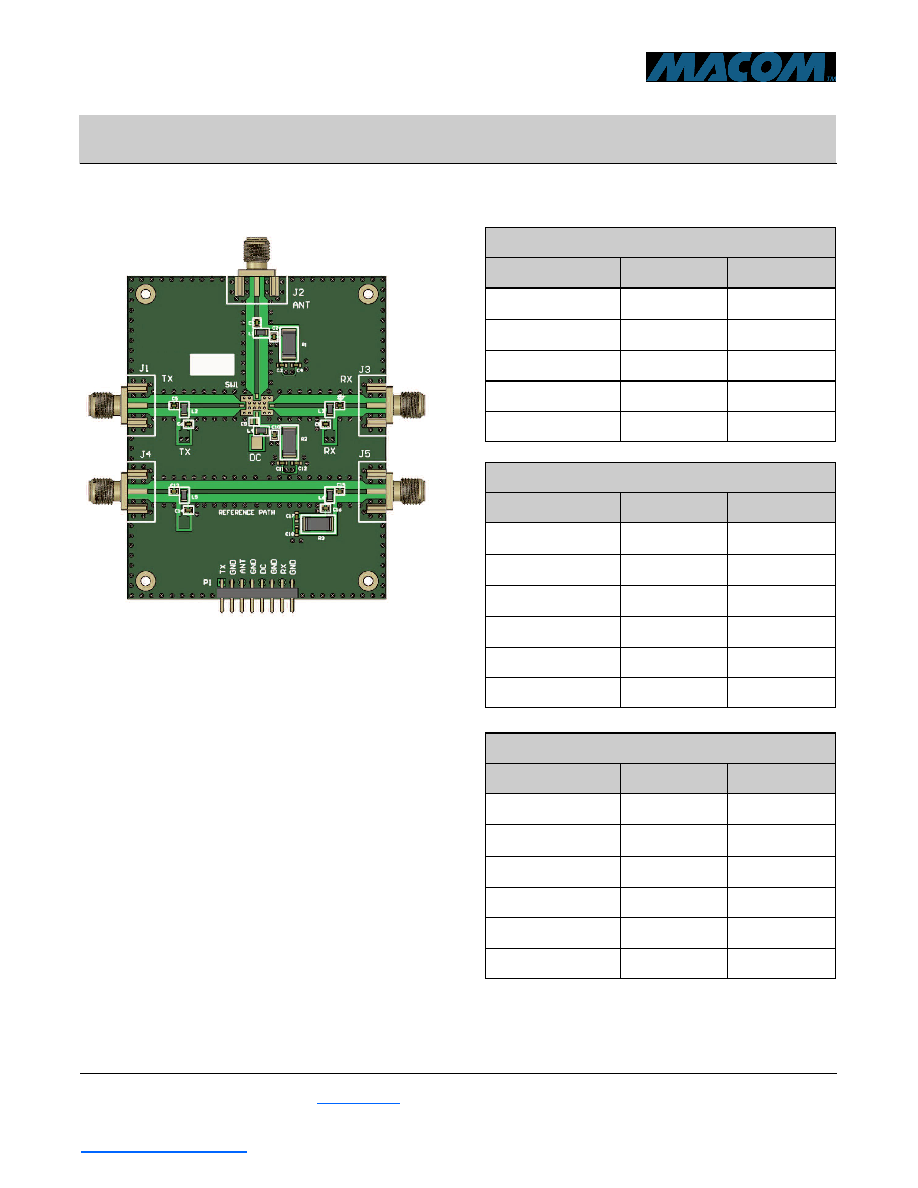

SP2T Switch Evaluation Board Layout

Evaluation Board Parts List

MSW2000-200 Band 1

Part

Value

Case Style

C1, C2, C5 - C8,

C13 - C16

0.1 µF

0603

C17, C18

0.1 µF

0603

L1 - L6

47 µH

1008

R1, R3

39 Ω

2512

R2

1200 Ω

2512

MSW2001-200 Band 2

Part

Value

Case Style

C1, C5, C7, C13, C15

47 pF

0603

C2, C6, C8, C9, C10,

C14, C16

220 pF

0603

C3, C4, C11, C12,

C17, C18

1000 pF

0603

L1 - L6

43 nH

0603

R1, R3

39 Ω

2512

R2

1200 Ω

2512

7. Second bypass capacitor is optional.

MSW2002-200 Band 3

Part

Value

Case Style

C1, C5, C7, C13, C15

10 pF

0603

C2, C6, C8, C9, C10,

C14

33 pF

0603

C3, C4, C10, C11,

C12, C17, C18

1000 pF

0603

L1 - L5

8.2 nH

0603

R1

39 Ω

2512

R2, R3

1200 Ω

2512
