SP2T PIN Diode Switch

Rev. V1

MSW200x-200

13

13

M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.

Visit www.macom.com for additional data sheets and product information.

For further information and support please visit:

https://www.macom.com/support

DS-xxxxxxx

13

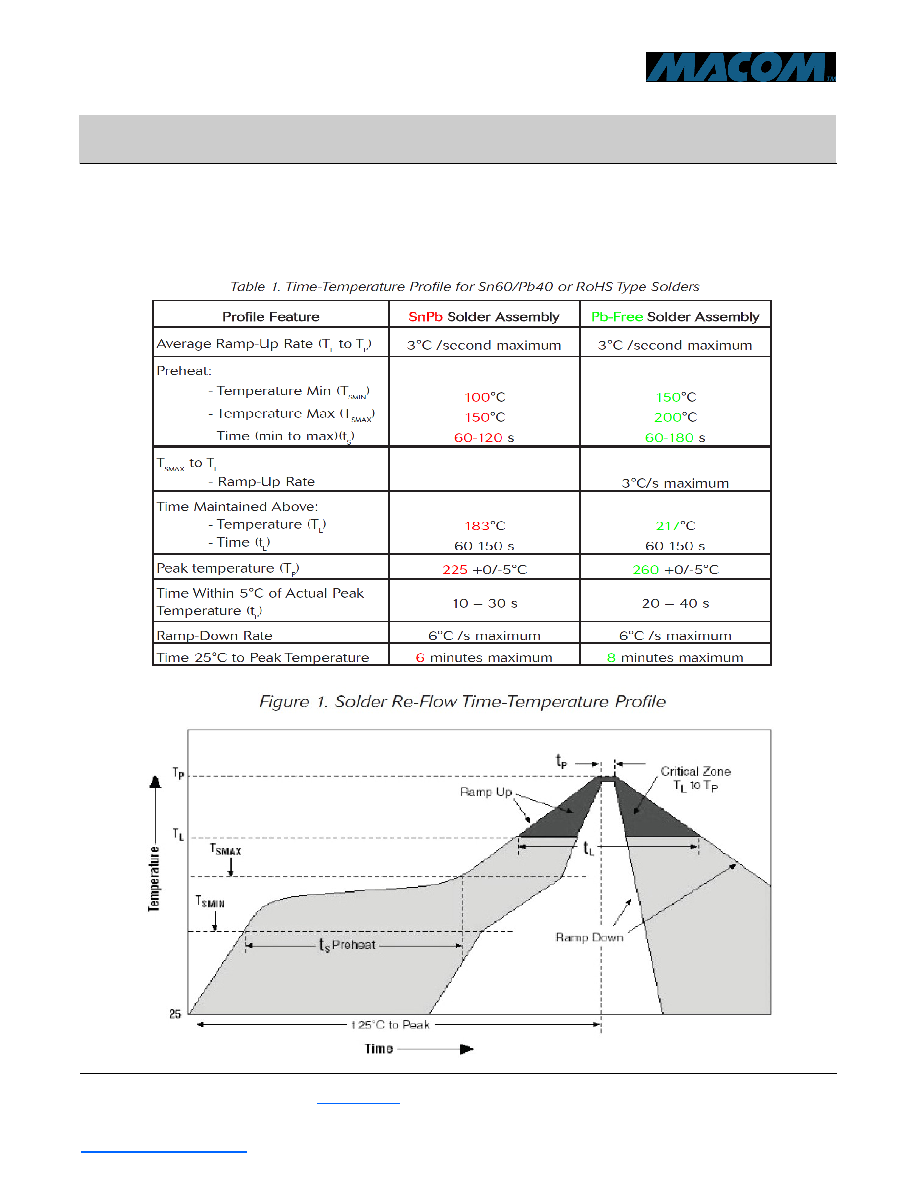

Assembly Instructions

SP2T PIN Diodes may be placed onto circuit boards with pick and place manufacturing equipment from tape and

reel. The devices are attached to the circuit using conventional solder re-flow or wave soldering procedures with

RoHS type or Sn 60 / Pb 40 type solders.
