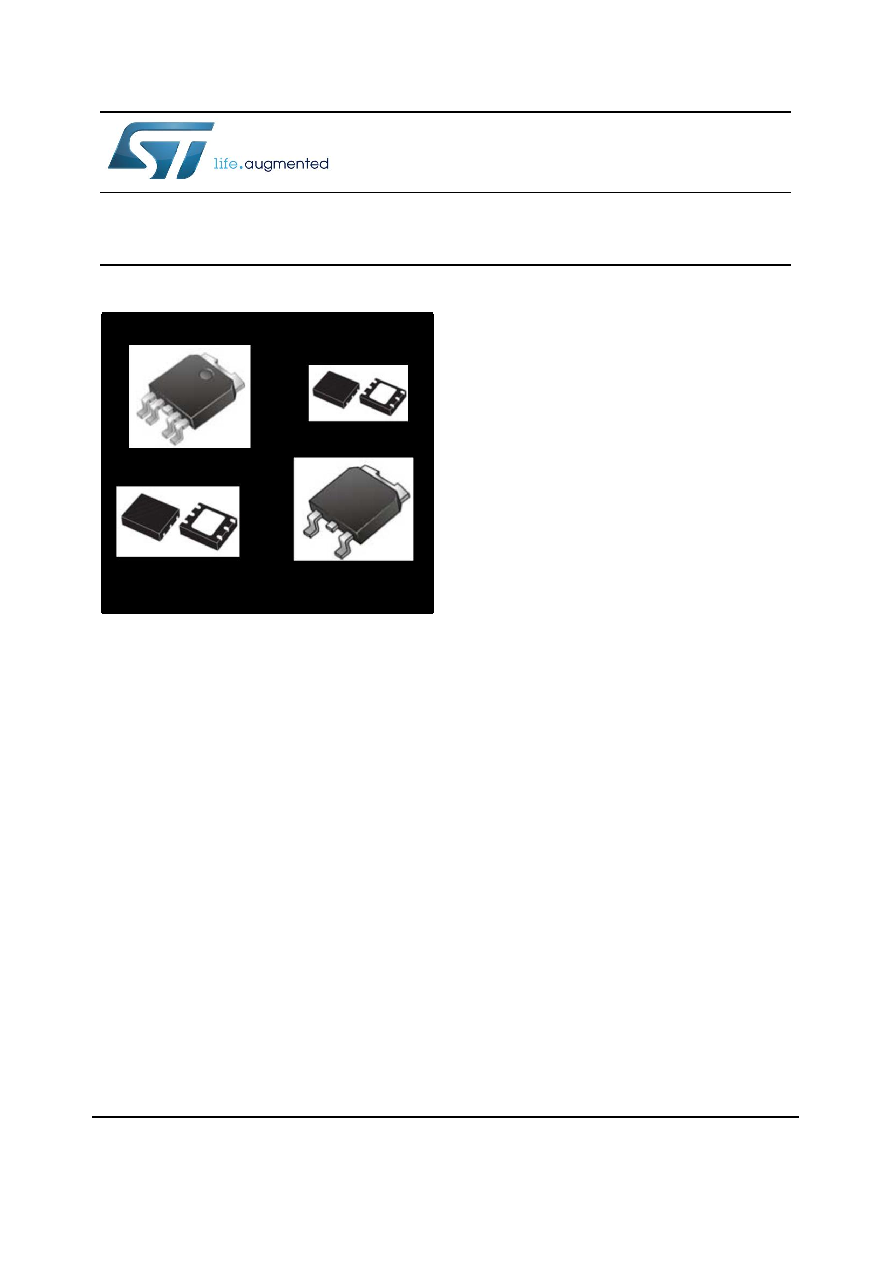

LDF

1 A very low drop voltage regulator

Datasheet - production data

Features



Input voltage from 2.6 to 16 V



Very low-dropout voltage (500 mV max. at

1 A load)



Low quiescent current (200 μA typ. @ 1 A

load)



Available in 1% precision in PPAK and

DFN6 packages, 2% in DPAK



1 A guaranteed output current



Wide range of output voltages available on

request: adjustable from 0.8 V, fixed up to

12 V in 100 mV steps



Logic-controlled electronic shutdown



Power Good (PPAK and DFN packages)



Fast dynamic response to line and load

changes



Internal current and thermal protections



Temperature range: -40 °C to 125 °C

Applications



Computer and laptop



Battery-powered equipments



Industrial and medical equipment



Consumer and set-top box

Description

The LDF is a fast, very low drop linear regulator

which operates from an input supply voltage in

the range of 2.6 V to 16 V.

It is available in fixed and adjustable output

voltage versions, from 0.8 V to 12 V.

The LDF features are: high output precision, very

low-dropout voltage, low noise, and low

quiescent current, therefore suitable for low

voltage microprocessors and memory

applications.

Enable logic control pin and power-good output

are featured on PPAK/DFN packages.

Current and thermal protection are provided.
