Typical characteristics
LDF
12/33
DocID025502 Rev 2
7

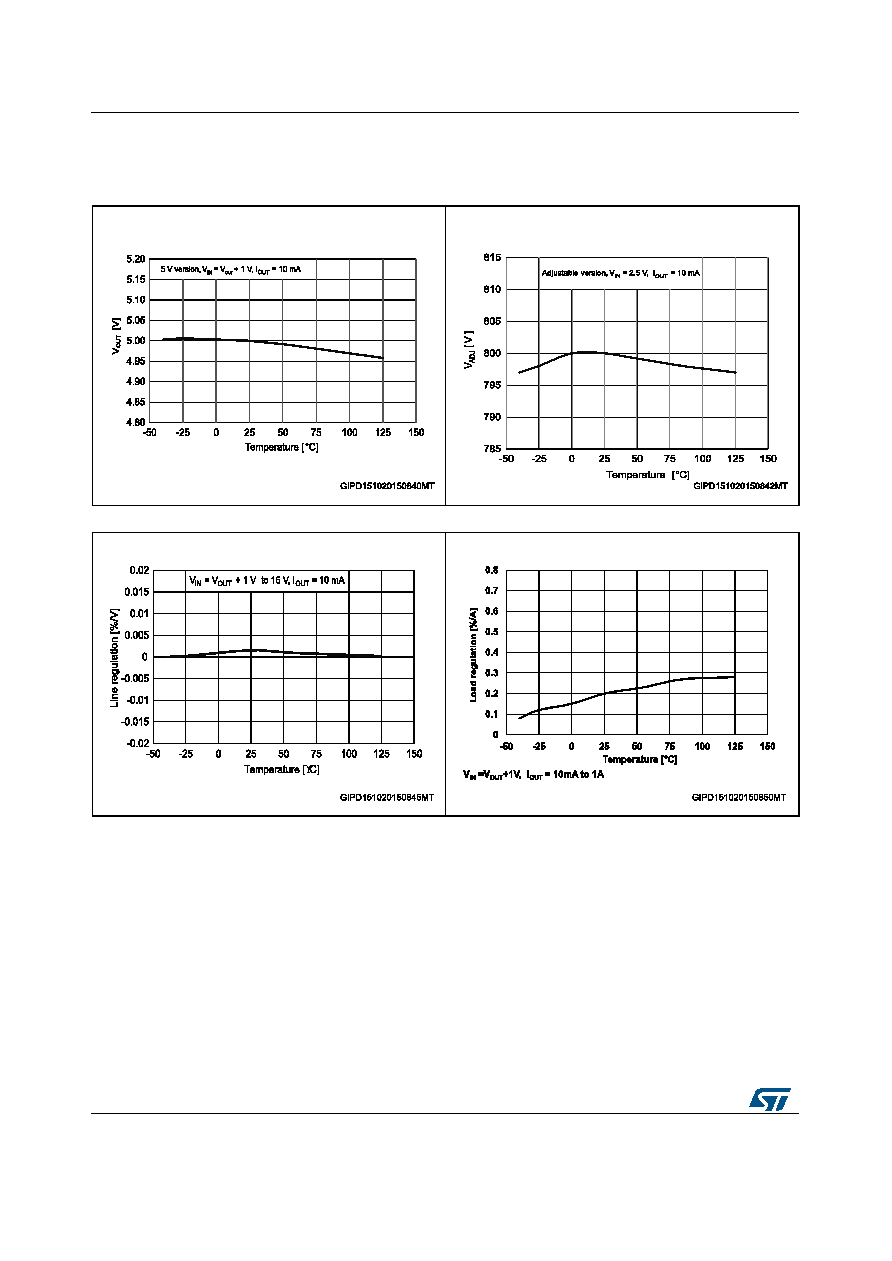

Typical characteristics
CIN = COUT = 1
μF, VIN = VOUT +1 V, VEN to VIN, IOUT = 10 mA, unless otherwise specified.
Figure 5: Output voltage vs. temperature, fixed
version
Figure 6: Output voltage vs. temperature, adjustable
version
Figure 7: Line regulation vs. temperature
Figure 8: Load regulation vs. temperature
