08 | Keysight | Infiniium Z-Series Oscilloscopes - Data Sheet

You need to be able to maximize

your margins by removing the

effects of cables and fixtures

As bandwidths continue to increase and

cable loss becomes more and more of a

problem, the Z-Series has the technology

to solve this issue. The Z-Series

oscilloscopes offer award-winning

PrecisionProbe Advanced technology.

You no longer need to ignore cable

loss because you are short on time or

budget. Using PrecisionProbe Advanced

technology, you can characterize cables

as fast as 63 GHz and remove the loss

they create. PrecisionProbe Advanced

technology gives you one of the world’s

fastest edges at less than 5 ps and

uses this edge to perform a TDT on

your cable. Based on the loss of your

cable, PrecisionProbe Advanced then

compensates your measurement system,

gaining back valuable margin typically lost

in cables.

You need to test multiple lanes

automatically and still maximize

margins

The Z-Series features many compliance

applications, which provide full automation

of any switch connected to your system.

The software is fully compatible with

PrecisionProbe Advanced compensation,

which allows you to characterize every

input using only your Z-Series oscilloscope

and then seamlessly automate every

measurement in your compliance

application. Save valuable time and

resources in such technologies as

DisplayPort and PCI Express® Gen3.

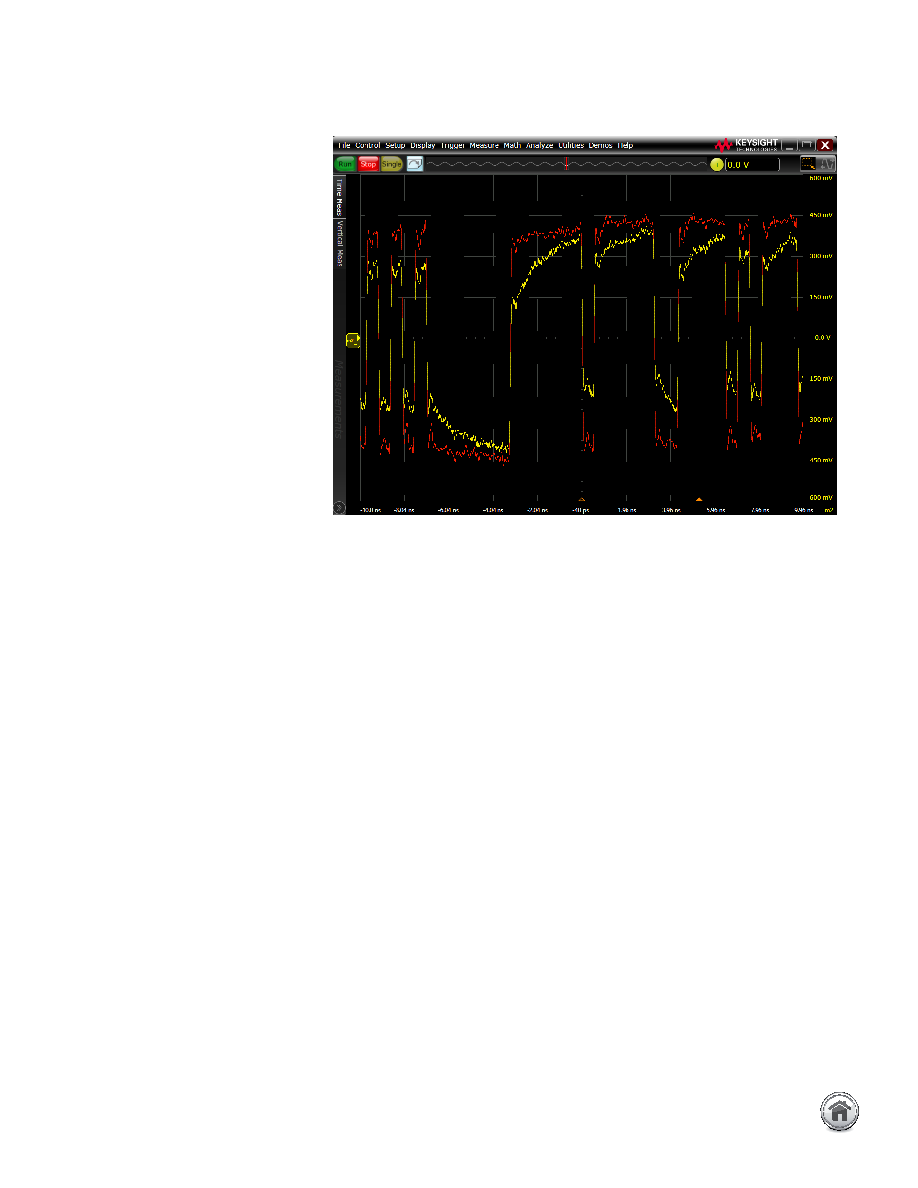

By analyzing cables you can increase your margins by removing insertion loss caused by cables.

The Network Analyzer — Time-Domain Transmission (TDT)
