12 | Keysight | Infiniium Z-Series Oscilloscopes - Data Sheet

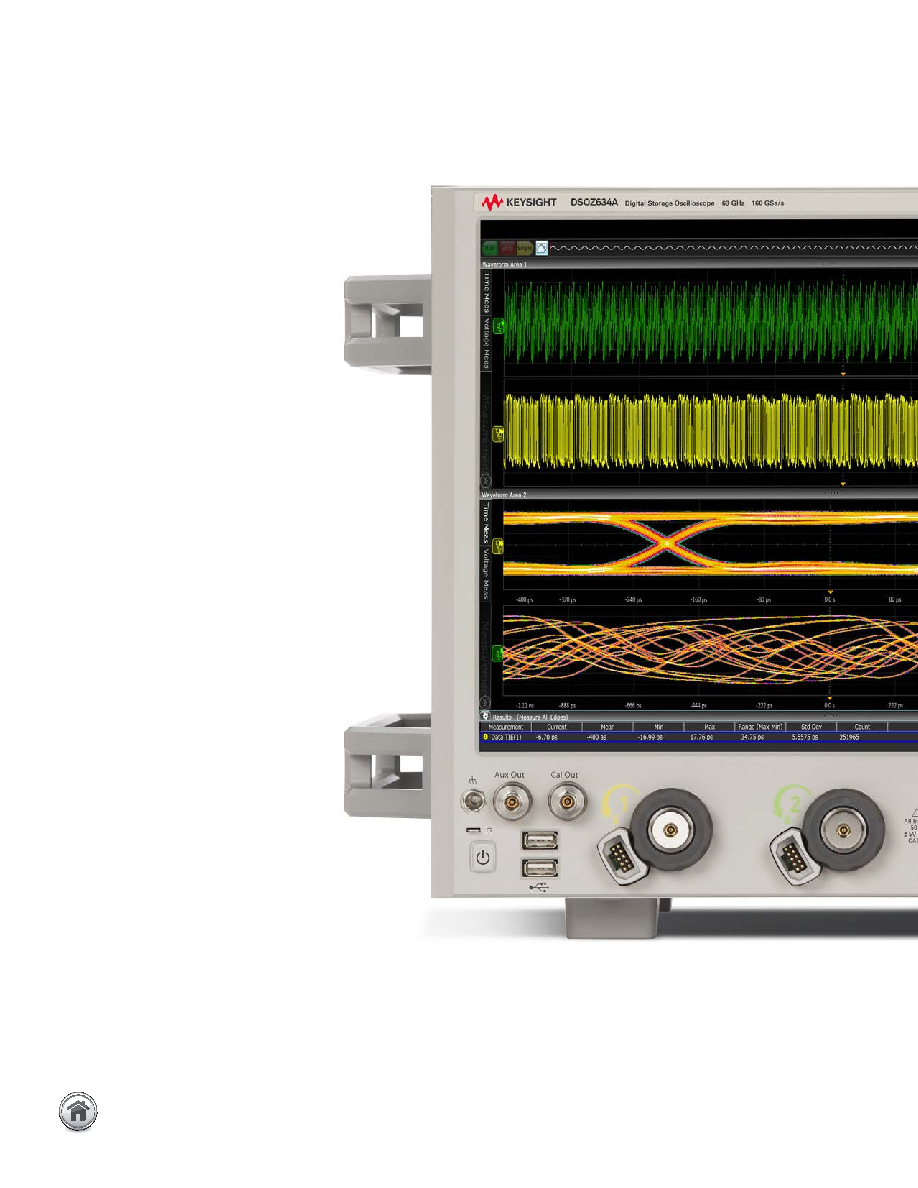

63 GHz of true analog bandwidth and

160 GSa/s on two channels.

See your signal more clearly with a large

15.4-inch capacitive touch-screen display.

16 GB RAM standard, quad core I5

processor and hardware acceleration

enable fast processing.

Remote access through Ethernet

10/100/1000BASE-T LAN interface with

Web-enabled connectivity uses ultra-

responsive UltraVNC.

USB and LAN provide remote

measurements. Infiniium application

remote program interface (now a standard

feature) allows application/compliance

software automation.

Calibration edge with a rise time

of less than 15 ps enables TDT

calibration with PrecisionProbe. Use

the Infiniium calibration source as part

of PrecisionProbe Advanced to extend

calibration to an unmatched 63 GHz.

Threaded RF connectors ensure the most reliable signal integrity for high-performance instruments. The

AutoProbe II interface combines the tried-and-true 3.5-mm threaded RF connector of Keysight sampling

oscilloscopes with a convenient automatic torque mechanism that ensures a consistent 8 in. lbs. connection

without the hassles of a torque wrench.

Achieve New Extremes

Introducing Infiniium Z-Series oscilloscopes
