Cool-Power® ZVS Switching Regulators
Rev 1.5
Page 38 of 41
03/2018
PI352x-00
D1
E1
L
D1
E1
L

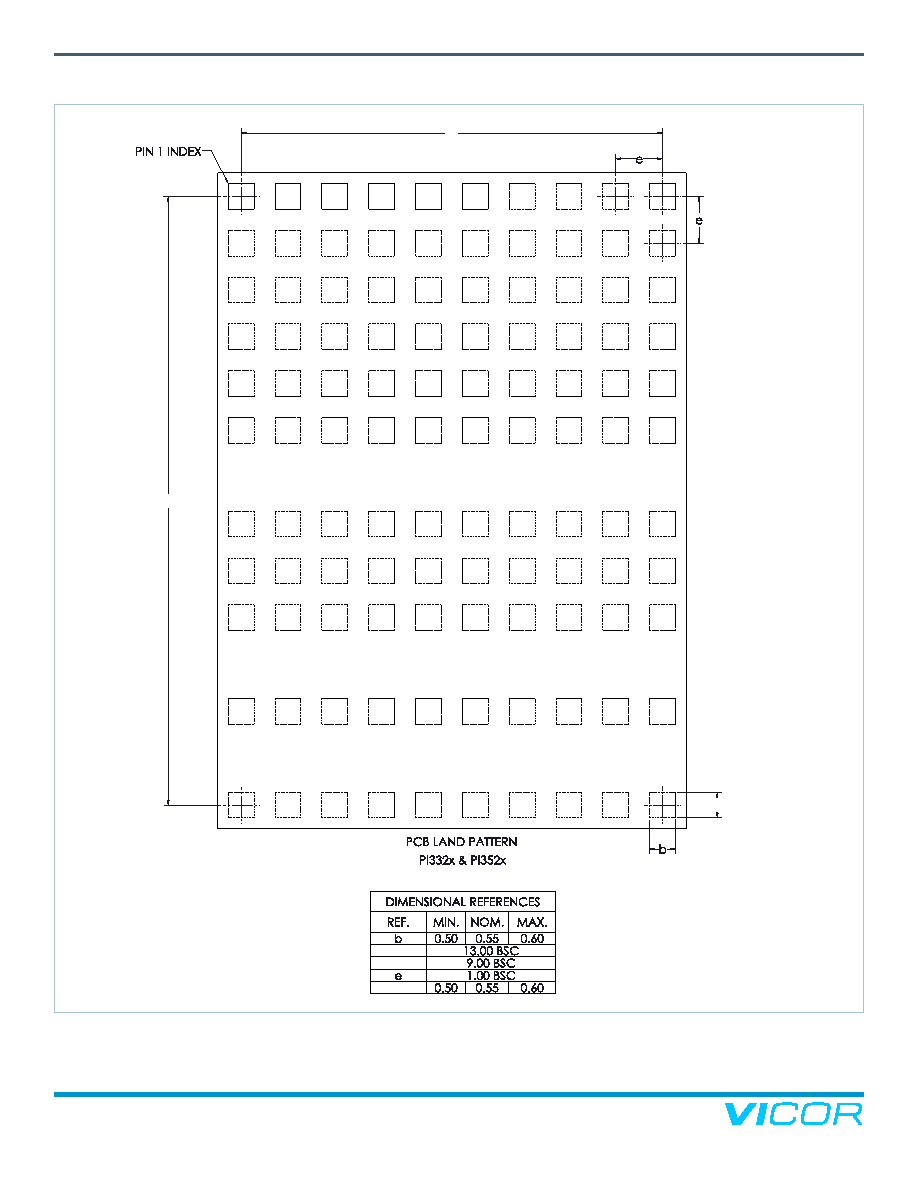

Recommended receiving footprint for PI352x-00 10 x 14mm package. All pads should have a final copper size of 0.55 x 0.55mm,
whether they are solder-mask defined or copper defined, on a 1 x 1mm grid. All stencil openings are 0.45mm when using either a
5mil or 6mil stencil.
Recommended PCB Footprint and Stencil
