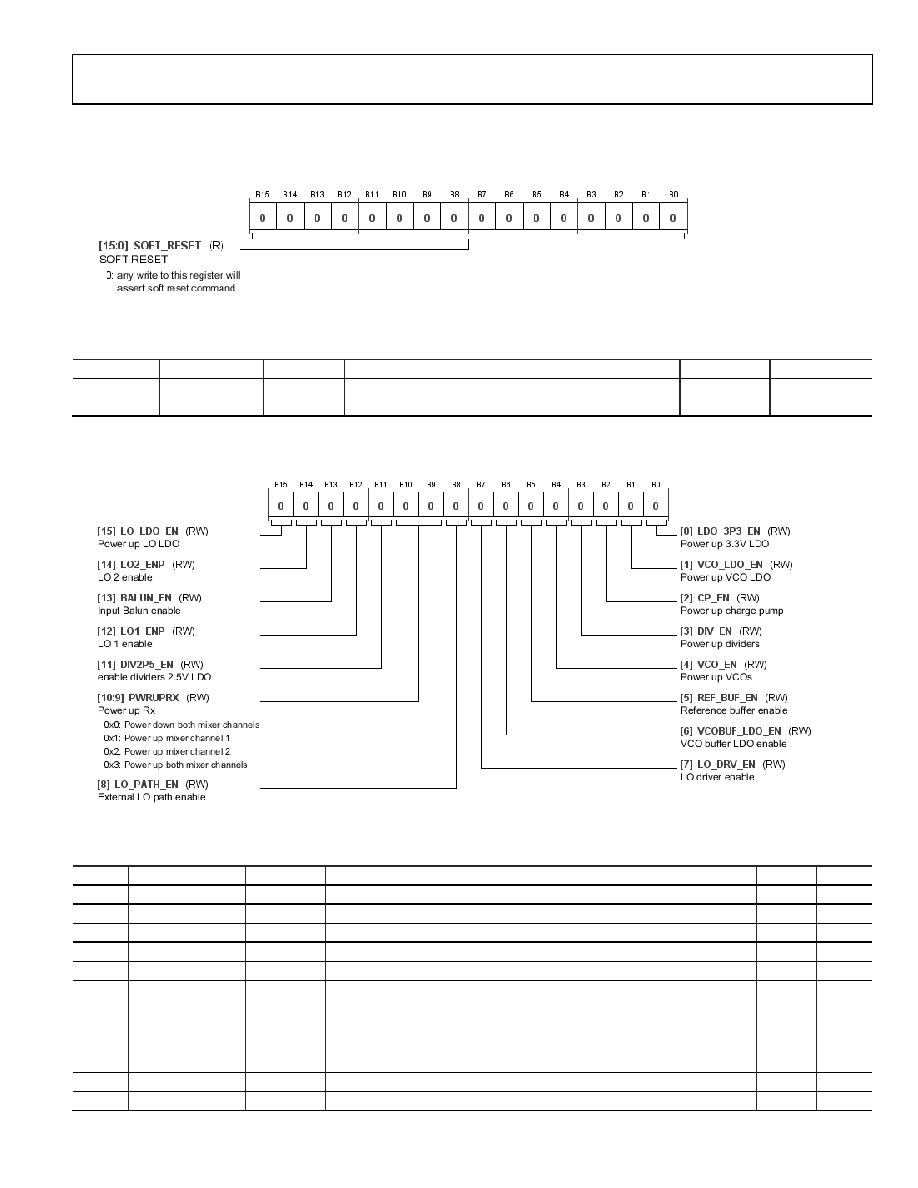

background image
Data Sheet
ADRF6614
Rev. 0 | Page 45 of 61
REGISTER DETAILS
Address: 0x00, Reset: 0x0000, Name: SOFT_RESET
Table 27. Bit Descriptions for SOFT_RESET
Bits
Bit Name
Settings
Description
Reset
Access
[15:0]
SOFT_RESET
Soft reset bit.
0x0
R
0
Any write to this register asserts a soft reset command.
0x0
R
Address: 0x01, Reset: 0x0000, Name: ENABLES
Table 28. Bit Descriptions for ENABLES
Bits
Bit Name
Settings
Description
Reset
Access
15
LO_LDO_EN
Power up LO LDO.
0x0
RW
14
LO2_ENP
LO 2 enable.
0x0
RW
13
BALUN_EN
Input balun enable.
0x0
RW
12
LO1_ENP
LO 1 enable.
0x0
RW
11
DIV2P5_EN
Enable dividers 2.5 V LDO.
0x0
RW
[10:9]
PWRUPRX
Power up Rx.
0x0
RW
0x0
Power down both mixer channels.
0x1
Power up mixer Channel 1.
0x2
Power up mixer Channel 2.
0x3
Power up both mixer channels.
8
LO_PATH_EN
External LO path enable.
0x0
RW
7
LO_DRV_EN
LO driver enable.
0x0
RW
