Data Sheet
ADRF6614
Rev. 0 | Page 19 of 61
0
1
2
3
4
5
6
7
8
9
10
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
VGS = 0
VGS = 1
VGS = 2
VGS = 3
VGS = 4
VGS = 5
VGS = 6
VGS = 7

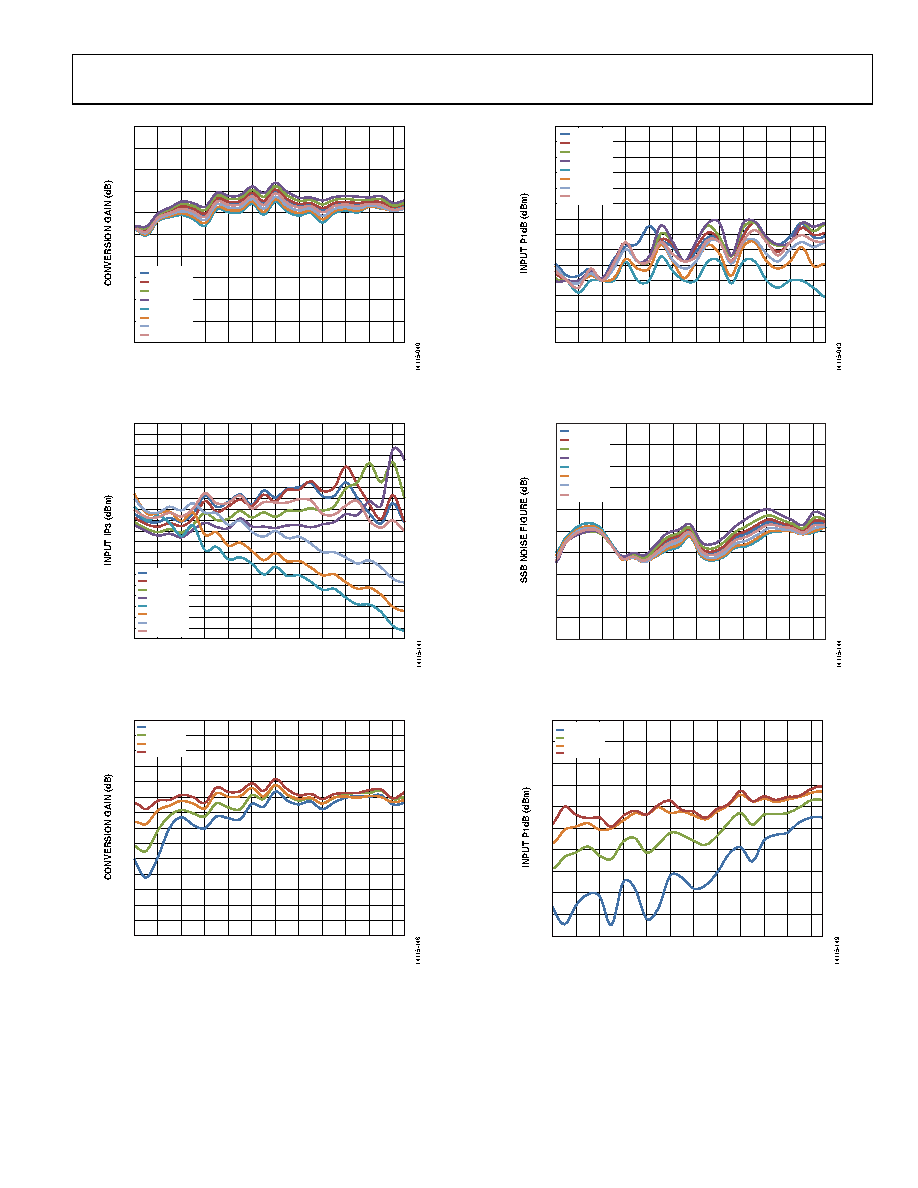

Figure 40. Conversion Gain vs. RF Frequency
for All VGS Bit Settings, RFB and LPF Use Optimum Settings
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
VGS = 0
VGS = 1
VGS = 2
VGS = 3
VGS = 4
VGS = 5
VGS = 6
VGS = 7
Figure 41. Input IP3 vs. RF Frequency for All VGS Bit Settings,
RFB and LPF Use Optimum Settings
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
LPF = 0
LPF = 2
LPF = 4
LPF = 6
Figure 42. Conversion Gain vs. RF Frequency for All LPF Settings,
RFB and VGS Bit Use Optimum Settings
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
14.5
15.0
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
VGS = 0
VGS = 1
VGS = 2
VGS = 3
VGS = 4
VGS = 5
VGS = 6
VGS = 7
Figure 43. Input P1dB vs. RF Frequency for All VGS Bit Settings,
RFB and LPF Use Optimum Settings
9.0
9.5
10.0
10.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
VGS = 0
VGS = 1
VGS = 2
VGS = 3
VGS = 4
VGS = 5
VGS = 6
VGS = 7
Figure 44. SSB Noise Figure vs. RF Frequency for All VGS Bit Settings,
RFB and LPF Use Optimum Settings
5
6
7
8
9
10
11
12
13
14
15
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700 2900
RF FREQUENCY (MHz)
LPF = 0
LPF = 2
LPF = 4
LPF = 6
Figure 45. Input P1dB vs. RF Frequency for All LPF Settings,
RFB and VGS Bit Use Optimum Settings
