ADRF6614
Data Sheet
Rev. 0 | Page 48 of 61

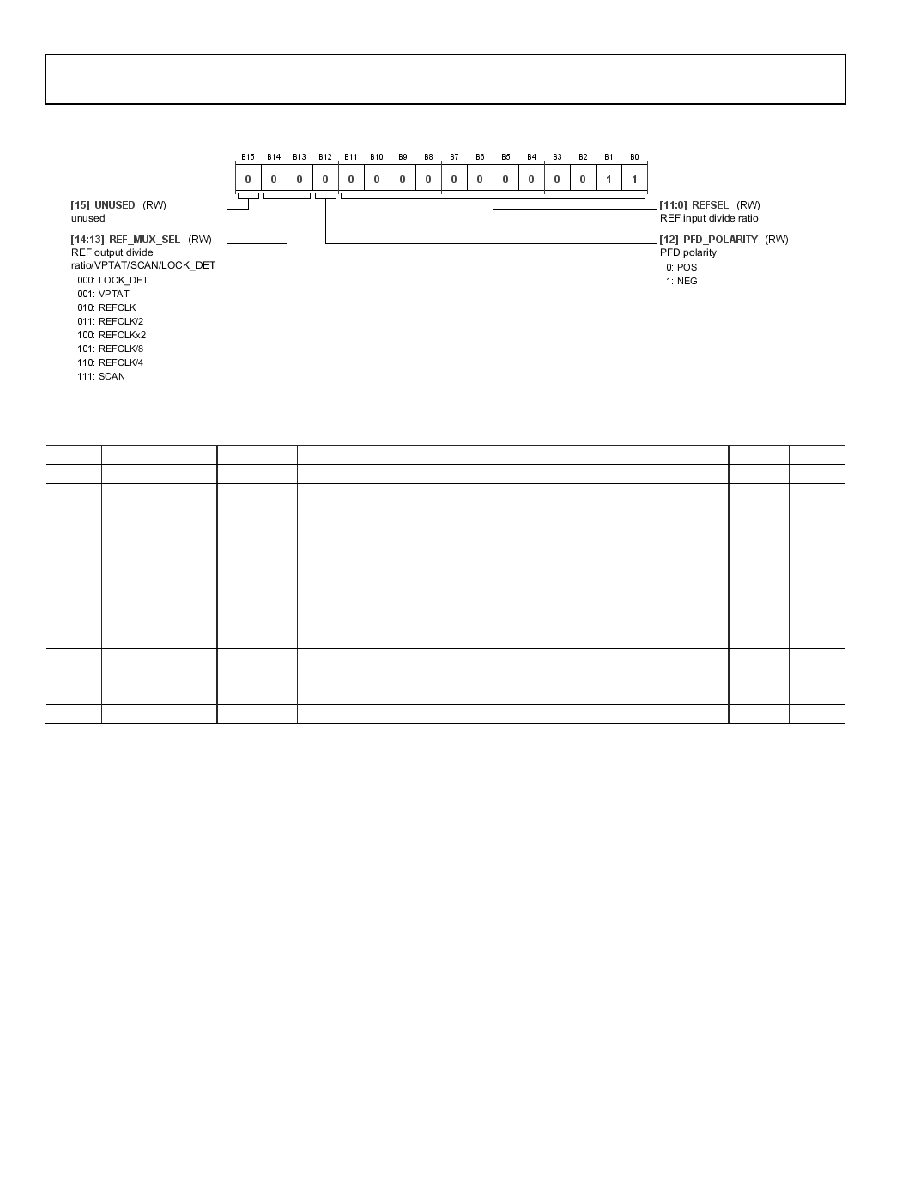

Address: 0x21, Reset: 0x0003, Name: PFD_CTRL1
Table 34. Bit Descriptions for PFD_CTRL1
Bits
Bit Name
Settings
Description
Reset
Access
15
UNUSED
Unused.
0x0
RW
[14:13]
REF_MUX_SEL
Reference output divide ratio/VPTAT/SCAN/LOCK_DET.
0x0
RW
000
LOCK_DET.
001
VPTAT.
010
REFCLK.
011
REFCLK/2.
100
REFCLK × 2.
101
REFCLK/8.
110
REFCLK/4.
111
SCAN.
12
PFD_POLARITY
PFD polarity.
0x0
RW
0
Positive.
1
Negative.
[11:0]
REFSEL
Reference input divide ratio.
0x3
RW
