Data Sheet
ADBMS1818

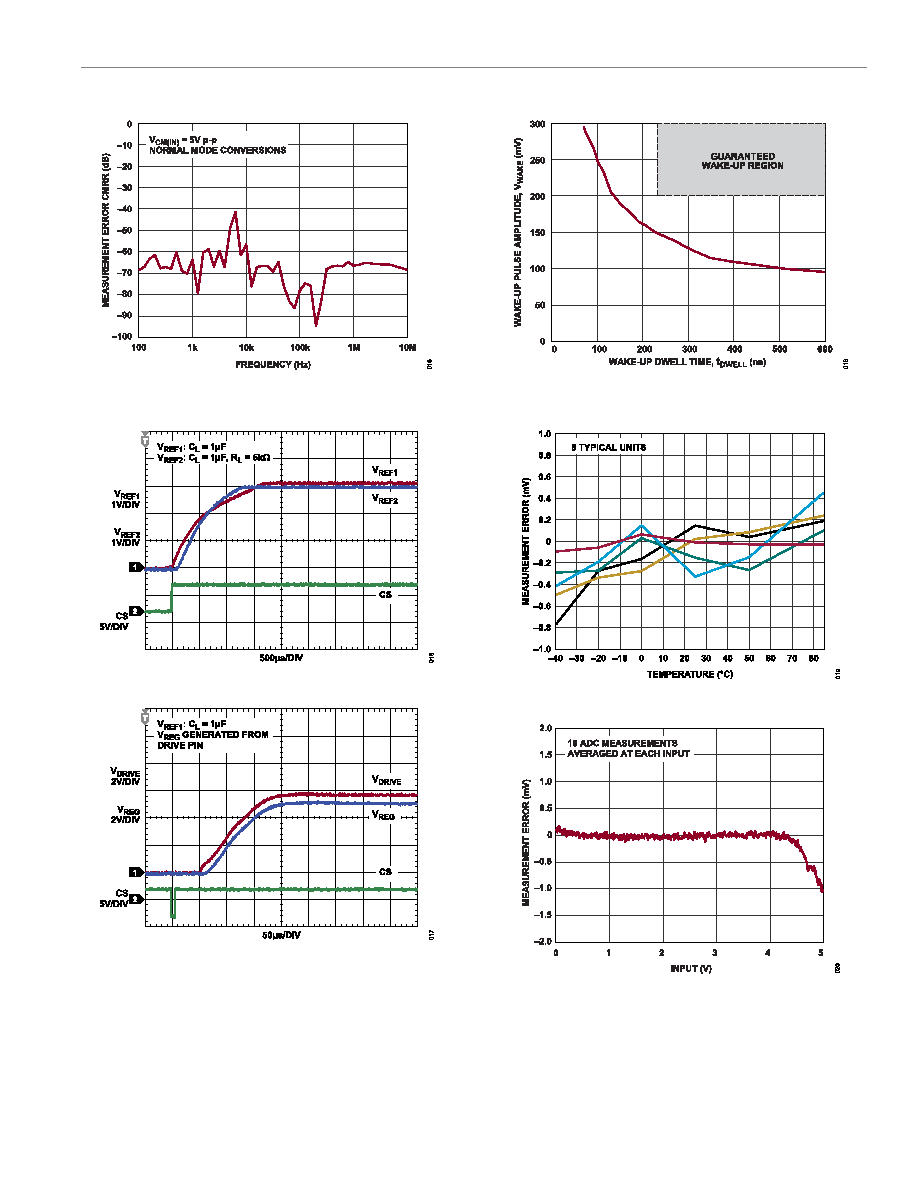

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 16 of 92
Figure 15. Measurement Error Common-Mode Rejection Ratio (CMRR) vs.
Frequency
Figure 16. VREF1 and VREF2 Power-Up
Figure 17. VREG and VDRIVE Power-Up
Figure 18. Typical Wake-Up Pulse Amplitude, VWAKE vs. Wake-Up Dwell Time,
tDWELL
Figure 19. Measurement Error vs. Temperature
Figure 20. Measurement Error vs. Input, Normal Mode
