Data Sheet
ADBMS1818

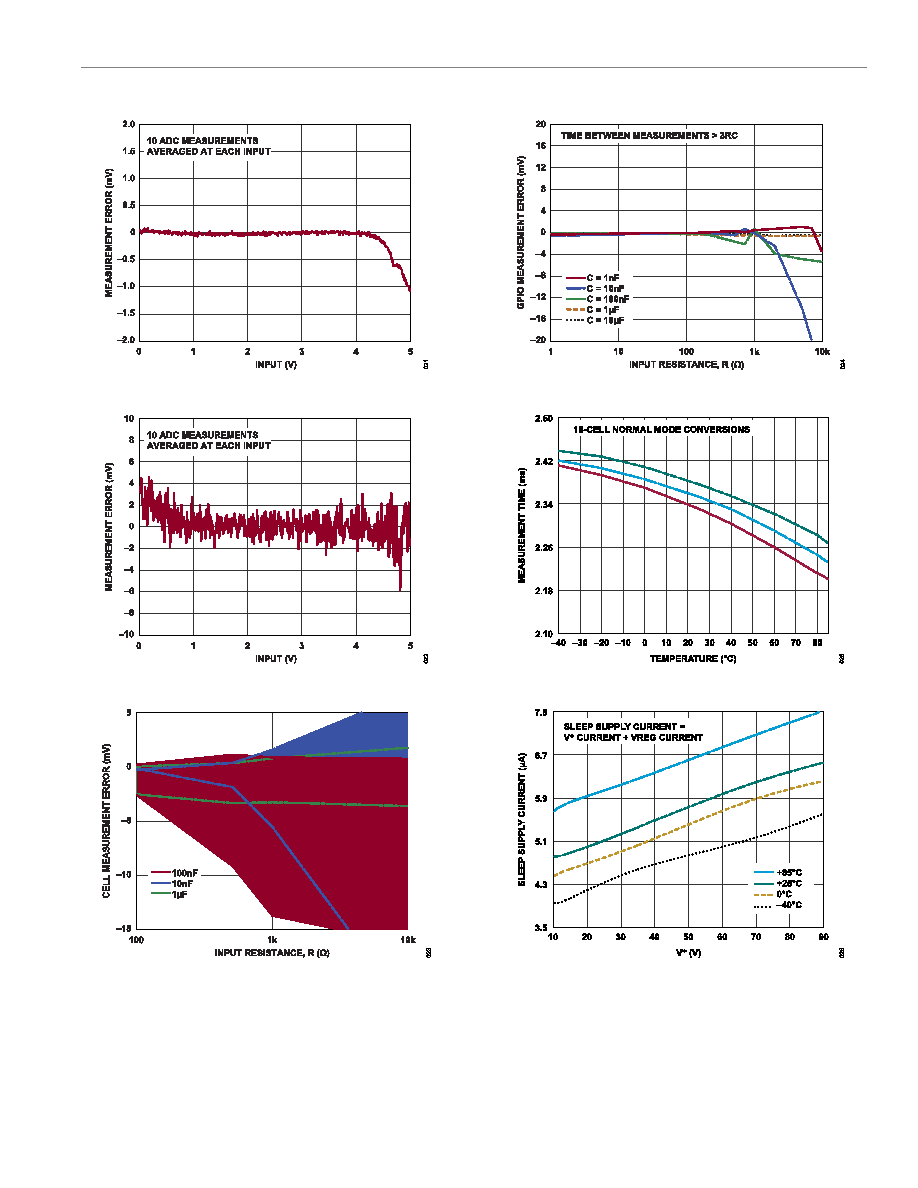

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 17 of 92
Figure 21. Measurement Error vs. Input, Filtered Mode
Figure 22. Measurement Error vs. Input, Fast Mode
Figure 23. Cell Measurement Error vs. Input RC Values
Figure 24. GPIO Measurement Error vs. Input RC Values
Figure 25. Measurement Time vs. Temperature
Figure 26. Sleep Supply Current vs. V+
