E3X

E3X-H11/-A

jj/-Fjj/-VGjj

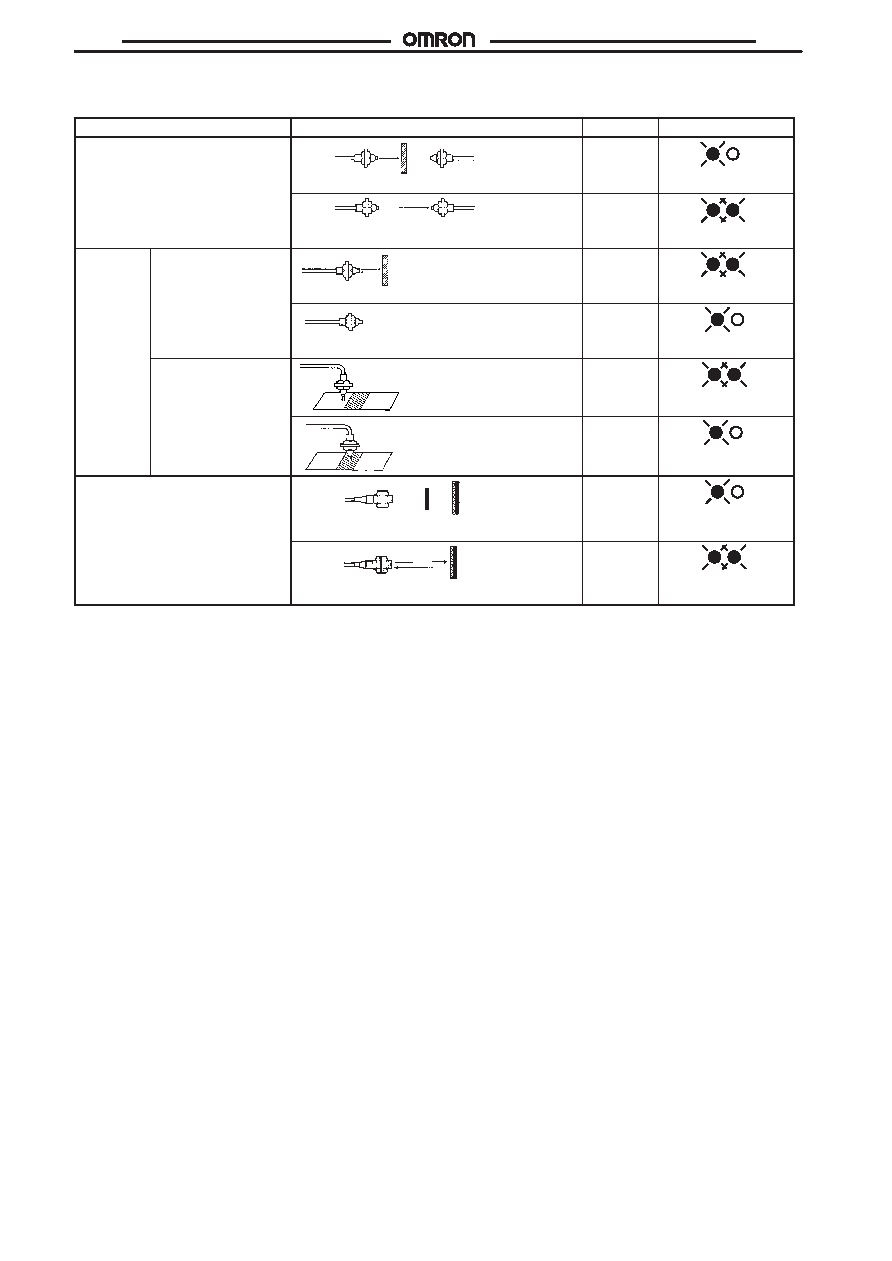

Using a sensing object, adjust Sensitivity Adjustor so that the indicators operate as described in the following table:

Sensing method

Sensing

Light

Indicators

Through-beam

With sensing object

Interrupted

Green: Light ON

Red:

Light OFF

Without sensing object

Incident

Green: Light ON

Red:

Light ON

Reflective

Sensing

With sensing object

Incident

Green: Light ON

Red:

Light ON

Without sensing object

Interrupted

Green: Light ON

Red:

Light OFF

Sensing of the

difference in color or

shade

Color that has a

high reflection ratio

Incident

Green: Light ON

Red:

Light ON

Color that has a

low reflection ratio

Interrupted

Green: Light ON

Red:

Light OFF

Retroreflective

With sensing

object

Reflector

Interrupted

Green: Light ON

Red:

Light OFF

Without sensing

object

Reflector

Incident

Green: Light ON

Red:

Light ON

Note:

1. If the indicators operate as described in the table, the E3X can operate in stable condition within the rated temperature range.

2. Even when the green indicator is OFF, the E3X will operate stably if the operating temperature change since the initial settings is

within +10

°C.
