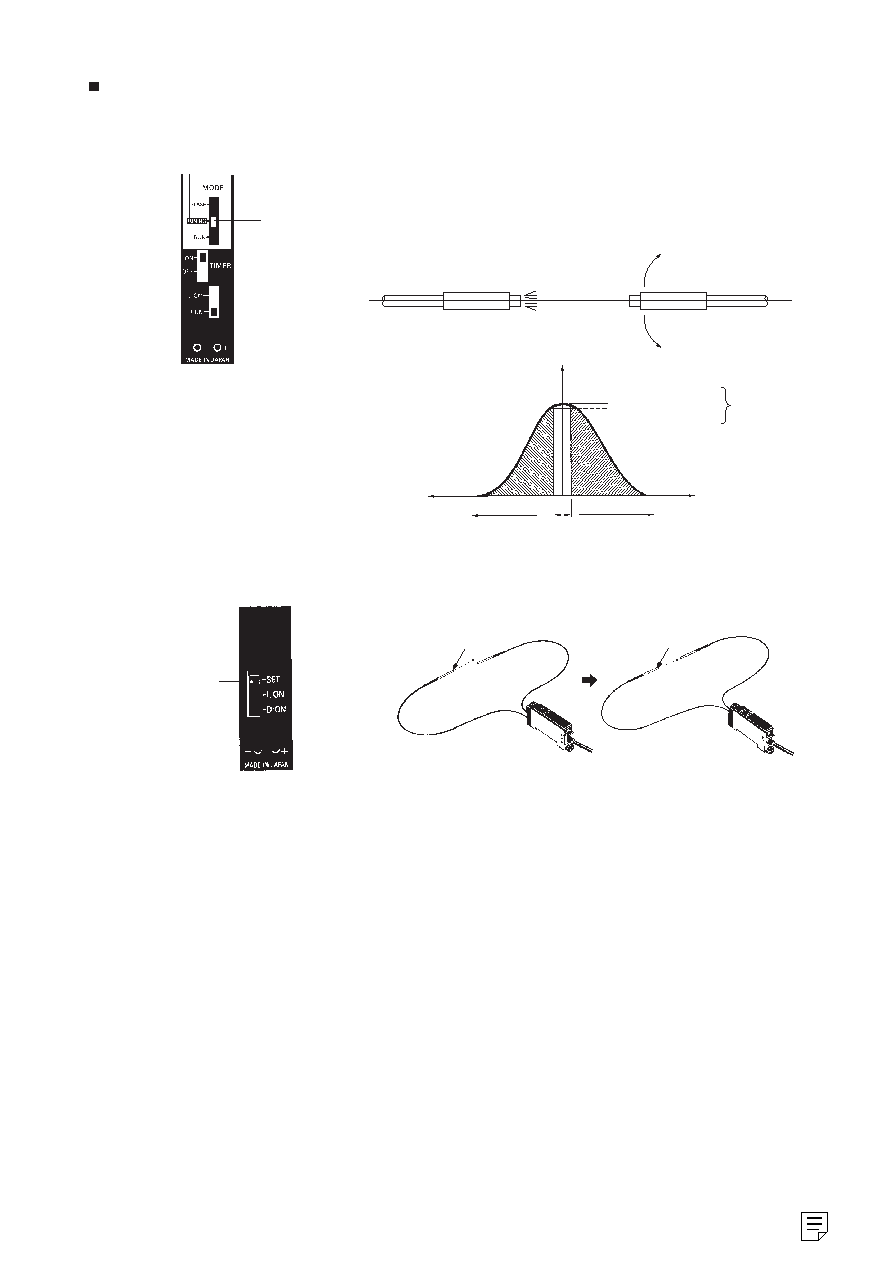

Light Axis Adjustment with Flashing Function

E3X-T

This function enables the user to adjust with ease the light axis of the through-beam fiber with the light source flashing. All E3X models have this

function.

1. Set the mode setting selector to FLASH.

2. If the axis of the light emission fiber head and that of the

light reception fiber head do not agree with each other

and the amount of light reception becomes 90% of the

peak value or less, the flashing function of the E3X will

work. The E3X retains the peak value when the mode

setting selector is set to FLASH and the axes of the

fiber heads are adjusted to agree with each other.

Mode Setting Selector

Fiber for light emission

Fiber for light reception

Optical input

The peak of light reception

90% of the peak value

Lit in this range.

Angle of the head (

θ)

Flashing

Lit

Flashing

E3X-A

jj/-Fjj/-VGjj

1. Set the mode selector to SET.

2. Adjust the light axis by moving the fiber with the light

flashing.

3. Set the mode selector to L-ON or D-ON after the light axis

is adjusted.

Mode Selector

Improper Light Axis

Proper Light Axis

Flashing

Light ON with

no flushing

Light axis

adjusted
