R3111x
41
 R3111E (TO-92) is the discontinued product as of April, 2017.

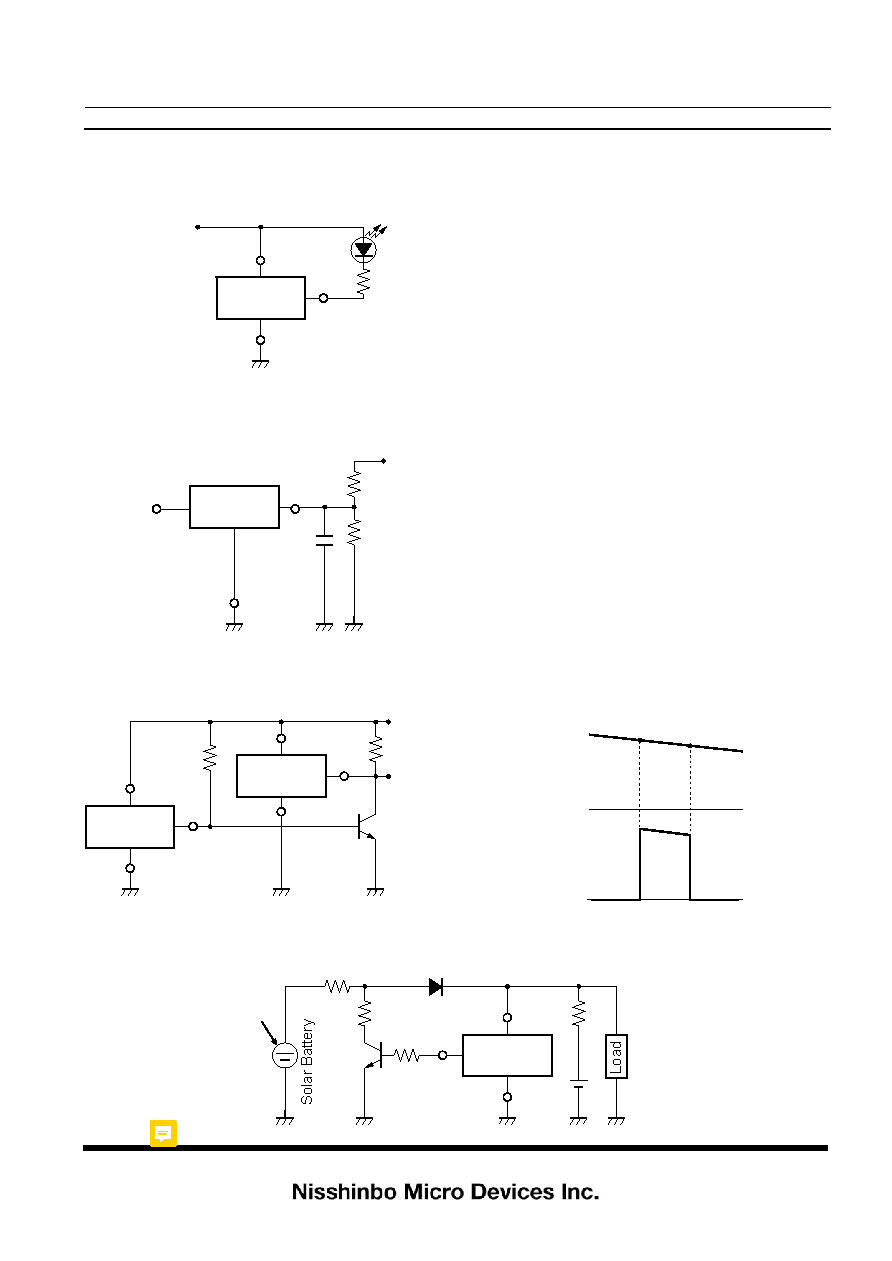

 Voltage level Indicator Circuit (lighted when the power runs out)
(Nch Open Drain Output)
R3111xxxxA
Series
VDD
GND
OUT
VDD
 Detector Threshold Adjustable Circuit
(Nch Open Drain Output)
R3111xxxxA
Series
GND
VDD
Rb
VDD
C
Ra
OUT
+
Adjusted Detector Threshold
(VDET)(RaRb)/Rb
Hysteresis Voltage
(VHYS)(RaRb)/Rb
) If the value of Ra is set excessively large, voltage
drop may occur caused by the supply current of IC
itself, and detector threshold may vary.
 Window Comparator Circuit
(Nch Open Drain Output)
R3111xxxxA
Series
VDD
GND
OUT
VDD
R3111xxxxA
Series
VDD
GND
OUT
VDET1
WC_OUT
VDET2
VDD
VDET1
GND
WC_OUT
VDET2
GND
 Over-charge Preventing Circuit
R3111xxxxC
Series
VDD
GND
OUT
R4
R2
R1
R3
Light
D1
