R3111x
15
 R3111E (TO-92) is the discontinued product as of April, 2017.

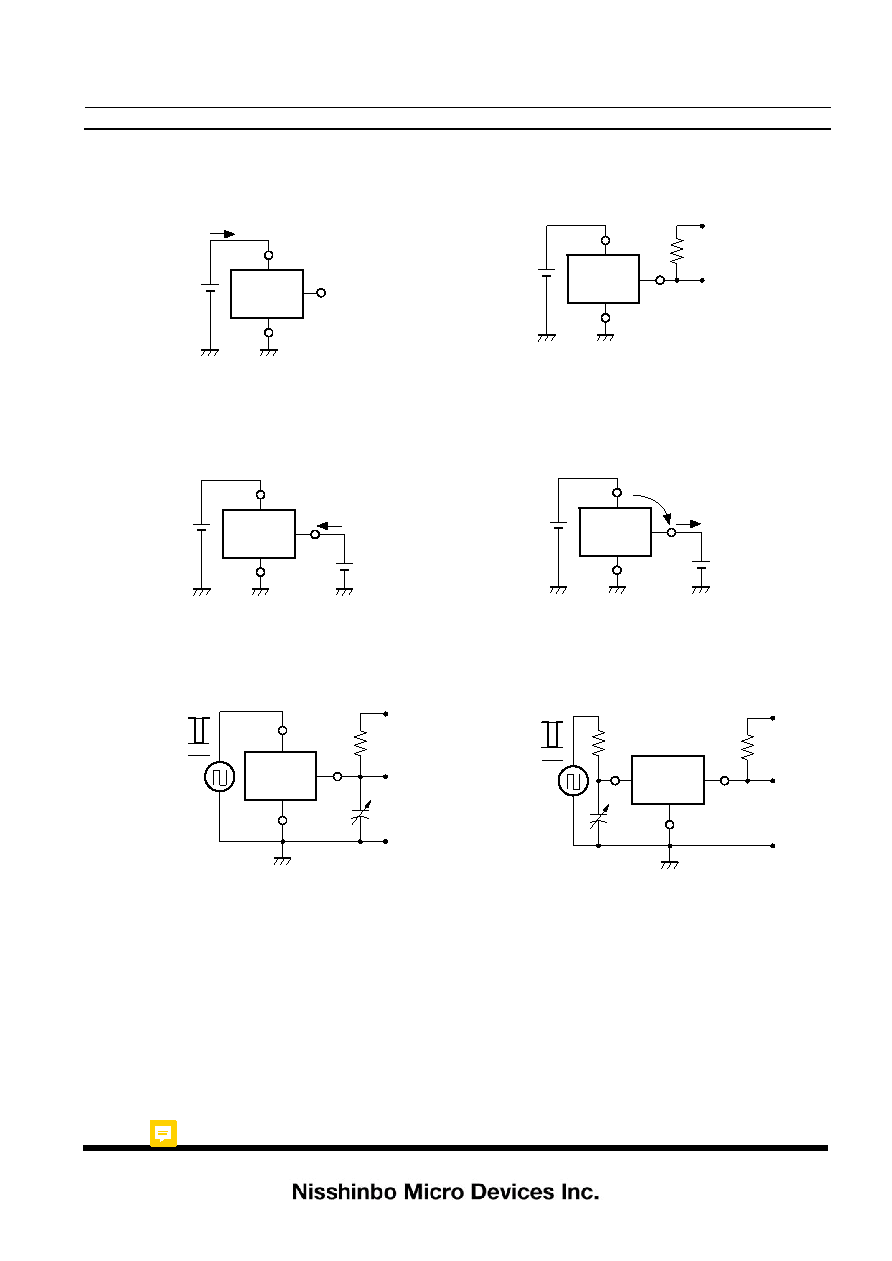

TEST CIRCUITS
GND
VDD
VIN
ISS
R3111x
Series
OUT
GND
VDD
VIN
R3111x
Series
OUT
470k
5V
VOUT
Supply Current Test Circuit
Detector Threshold Test Circuit
(Pull-up circuit is not necessary for
CMOS Output type.)
GND
VDD
VIN
R3111x
Series
OUT
VDS
IOUT
GND
VDD
VIN
R3111x
Series
OUT
VDD
VDS
IOUT
VDS
Nch Driver Output Current Test Circuit
Pch Driver Output Current Test Circuit
Apply to CMOS Output type only
GND
VDD
R3111x
Series
OUT
VDS
VOUT
5V
ROUT
470k
P.G.
+VDET+2.0V
0.7V
GND
COUT
GND
VDD R3111x
Series
OUT
VDS
VOUT
5V
ROUT
470k
P.G.
+VDET+2.0V
0.7V
GND
RIN
470k
CIN
Output Delay Time Test Circuit (1)
Output Delay Time Test Circuit (2)
(Pull-up circuit is not necessary for
CMOS Output type.)
