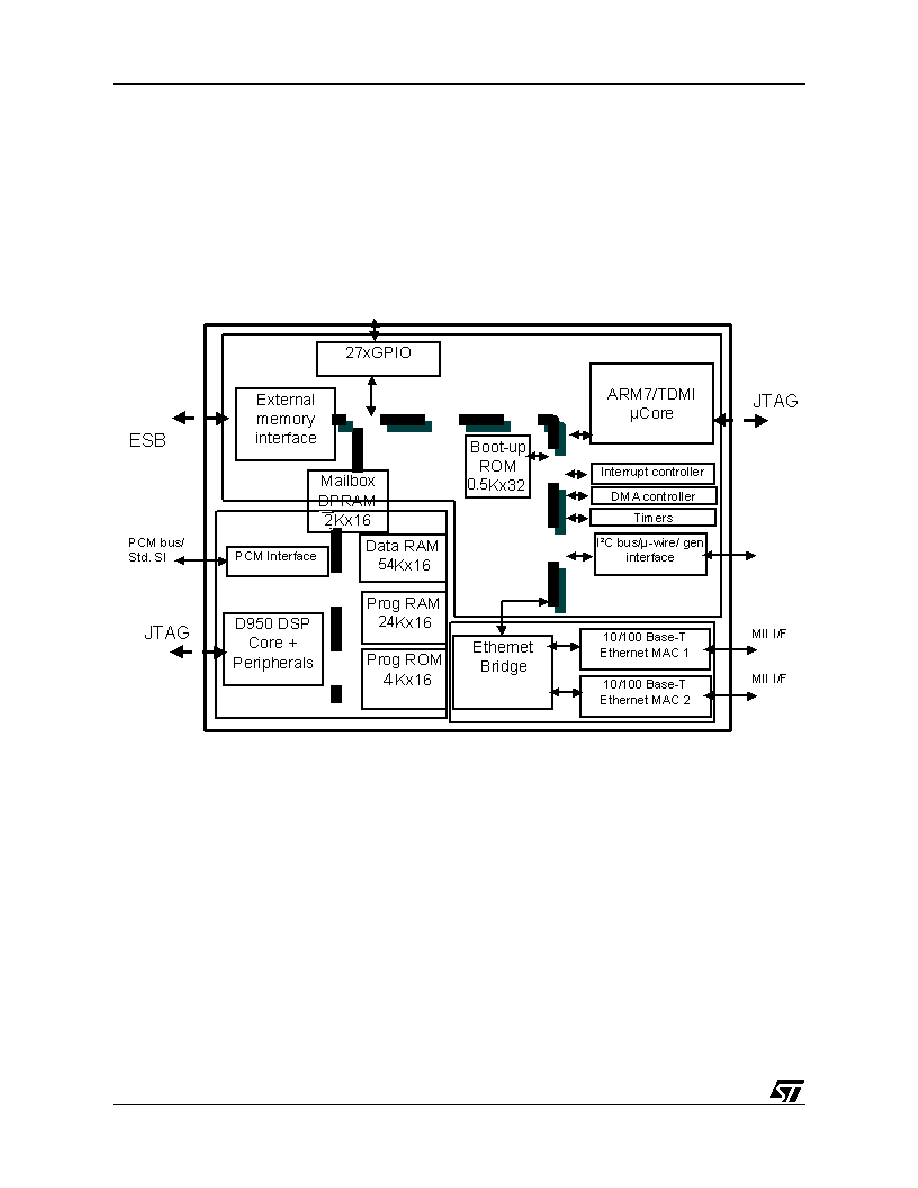

2 / 81 page  STLC1502 2/81 • Data Modem: V.34 datapump • Rate selection • High performance voice activity detector (VAD) • Comfort noise generator (CNG) • G.165 32 ms Line & acoustic echo canceller • Low latency system implementation Figure 1: Block diagram 3.0 SYSTEM OVERVIEW Three main blocks can be identified in the device architecture: ARM domain, the D950 domain and the Clocks tree domain. 3.1 ARM7 domain The ARM domain is a multibus microprocessor system based on the ARM7TDMI processor. • The system bus is based on the Advanced Microcontroller Bus Architecture (AMBA) that includes two distinct buses: • The Advanced High performance Bus (AHB) for high performances system modules • The Advanced Peripheral Bus (APB) for low power peripherals. • A high speed 32 bit data bus is provided to connect external memories. • A controller for external static memory (ESM) and a controller for external dynamic memory (EDM) are provided. • Static memories, like FLASH EPROM, SRAM and dynamic memories like EDO, SDRAM, can be |
|
