M24LR64E-R
M24LR64E-R to VCD frames
Doc ID 022712 Rev 3
59/140
12.4
EOF when using two subcarriers
12.4.1
High data rate
The EOF comprises a logic 0 that includes eight pulses at 423.75 kHz and nine pulses at
484.28 kHz, followed by 24 pulses at 423.75 kHz (fC/32) and 27 pulses at 484.28 kHz
(fC/28), as shown in Figure 45.
Bit coding using two subcarriers is not supported for the Fast commands.

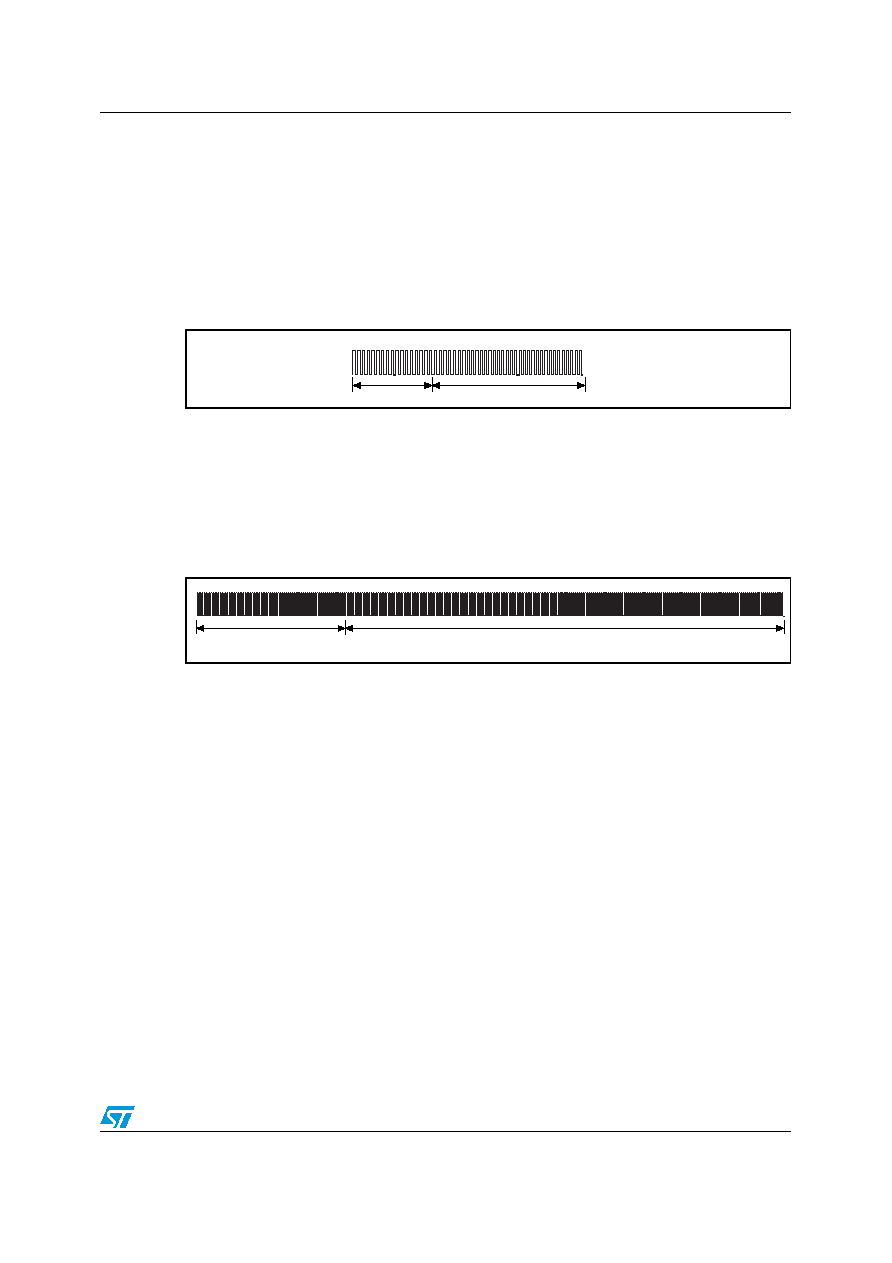

Figure 45.
End of frame, high data rate, two subcarriers
12.4.2
Low data rate
The EOF comprises a logic 0 that includes 32 pulses at 423.75 kHz and 36 pulses at
484.28 kHz, followed by 96 pulses at 423.75 kHz (fC/32) and 108 pulses at 484.28 kHz
(fC/28), as shown in Figure 46.
Bit coding using two subcarriers is not supported for the Fast commands.
Figure 46.
End of frame, low data rate, two subcarriers
112.39µs
ai12088
37.46µs
449.56µs
ai12089
149.84µs
