Data Sheet
ADRF6620
Rev. 0 | Page 43 of 52

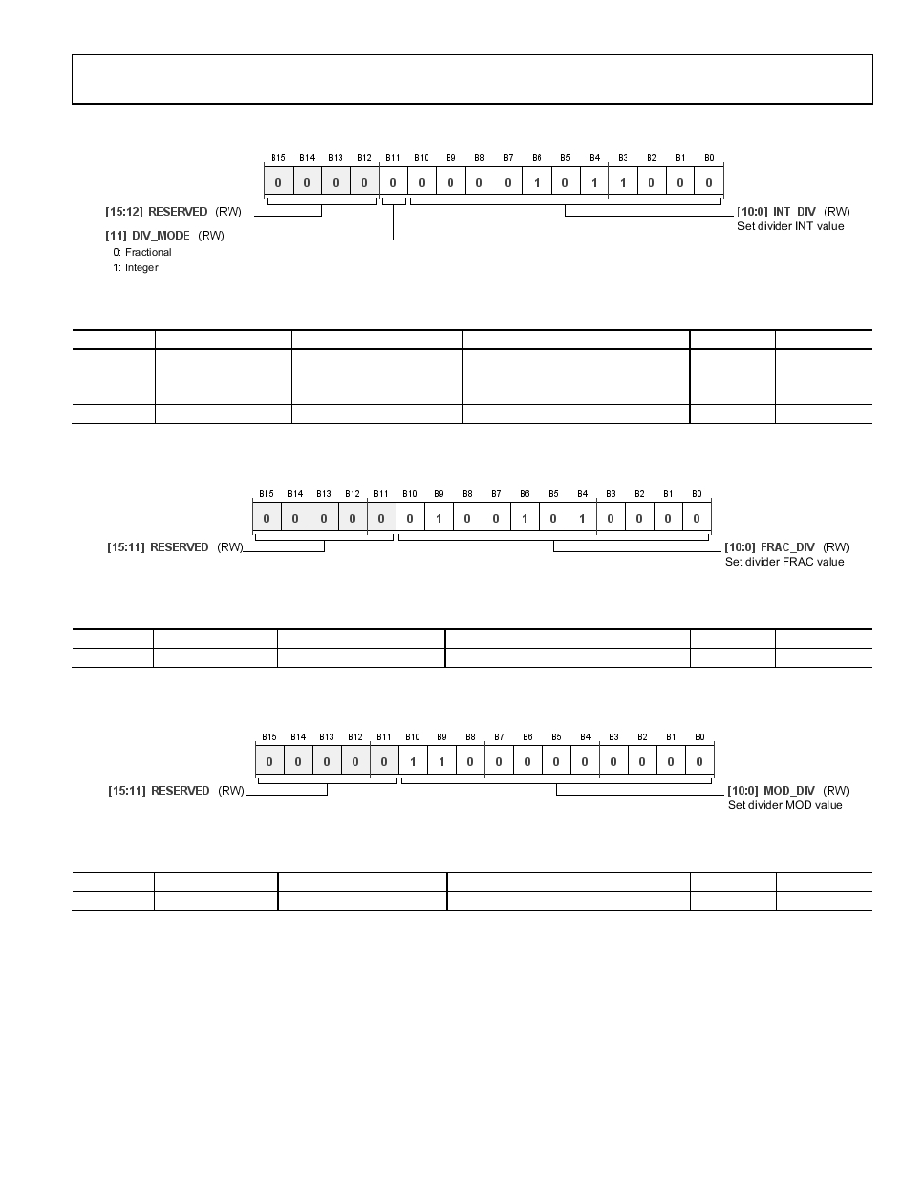

REGISTER 0x02, RESET: 0x0058, NAME: INT_DIV
Table 24. Bit Descriptions for INT_DIV
Bits
Bit Name
Settings
Description
Reset
Access
11
DIV_MODE
0x0
RW
0
Fractional
1
Integer
[10:0]
INT_DIV
Set divider INT value
0x58
RW
REGISTER 0x03, RESET: 0x0250, NAME: FRAC_DIV
Table 25. Bit Descriptions for FRAC_DIV
Bits
Bit Name
Settings
Description
Reset
Access
[10:0]
FRAC_DIV
Set divider FRAC value
0x250
RW
REGISTER 0x04, RESET: 0x0600, NAME: MOD_DIV
Table 26. Bit Descriptions for MOD_DIV
Bits
Bit Name
Settings
Description
Reset
Access
[10:0]
MOD_DIV
Set divider MOD value
0x600
RW
