ADRF6620
Data Sheet
Rev. 0 | Page 44 of 52

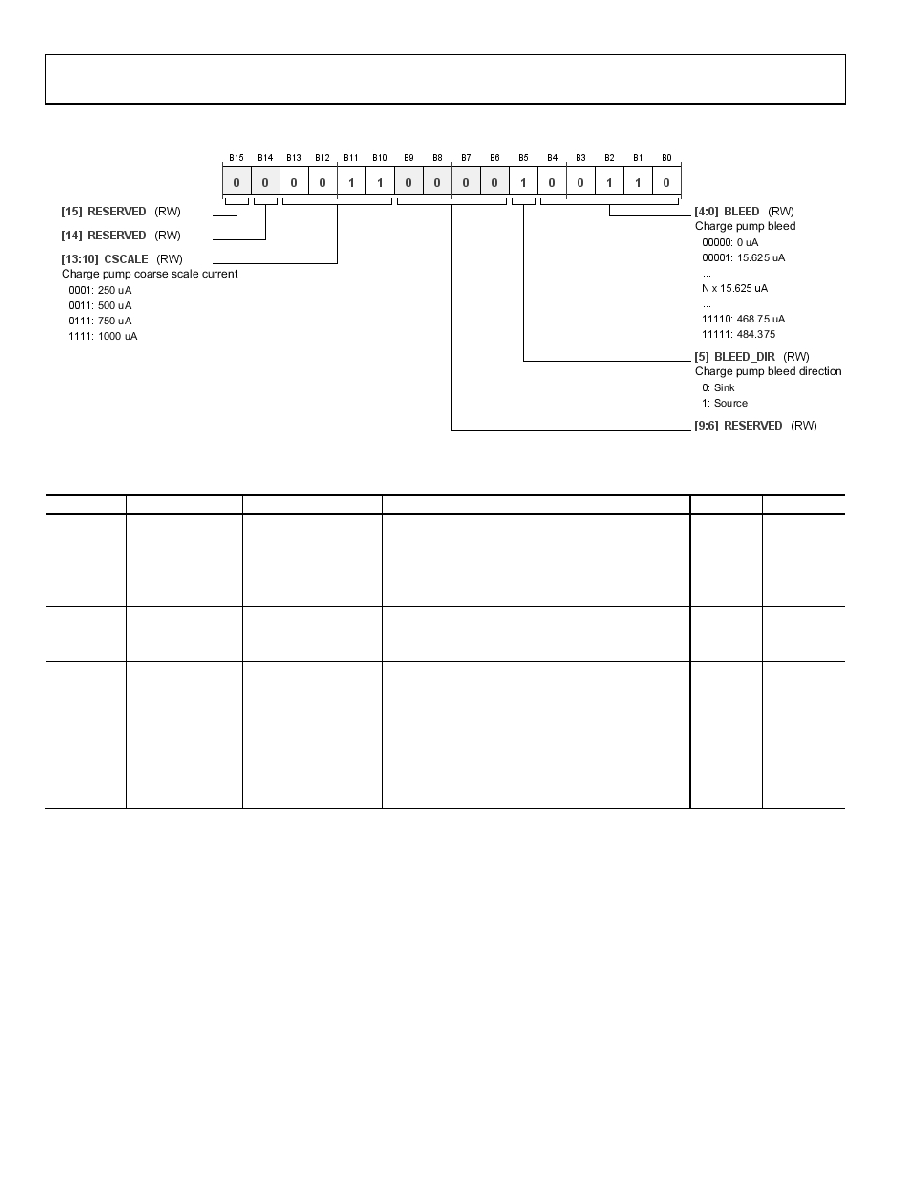

REGISTER 0x20, RESET: 0x0C26, NAME: CP_CTL
Table 27. Bit Descriptions for CP_CTL
Bits
Bit Name
Settings
Description
Reset
Access
[13:10]
CSCALE
Charge pump current
0x3
RW
0001
250 μA
0011
500 μA
0111
750 μA
1111
1000 μA
5
BLEED_DIR
Charge pump bleed direction
0x1
RW
0
Sink
1
Source
[4:0]
BLEED
Charge pump bleed
0x06
RW
00000
0 μA
00001
15.625 μA
…
…
N × 15.625 μA
…
11110
468.75 μA
11111
484.375 μA
