Data Sheet
ADRF6620
Rev. 0 | Page 47 of 52

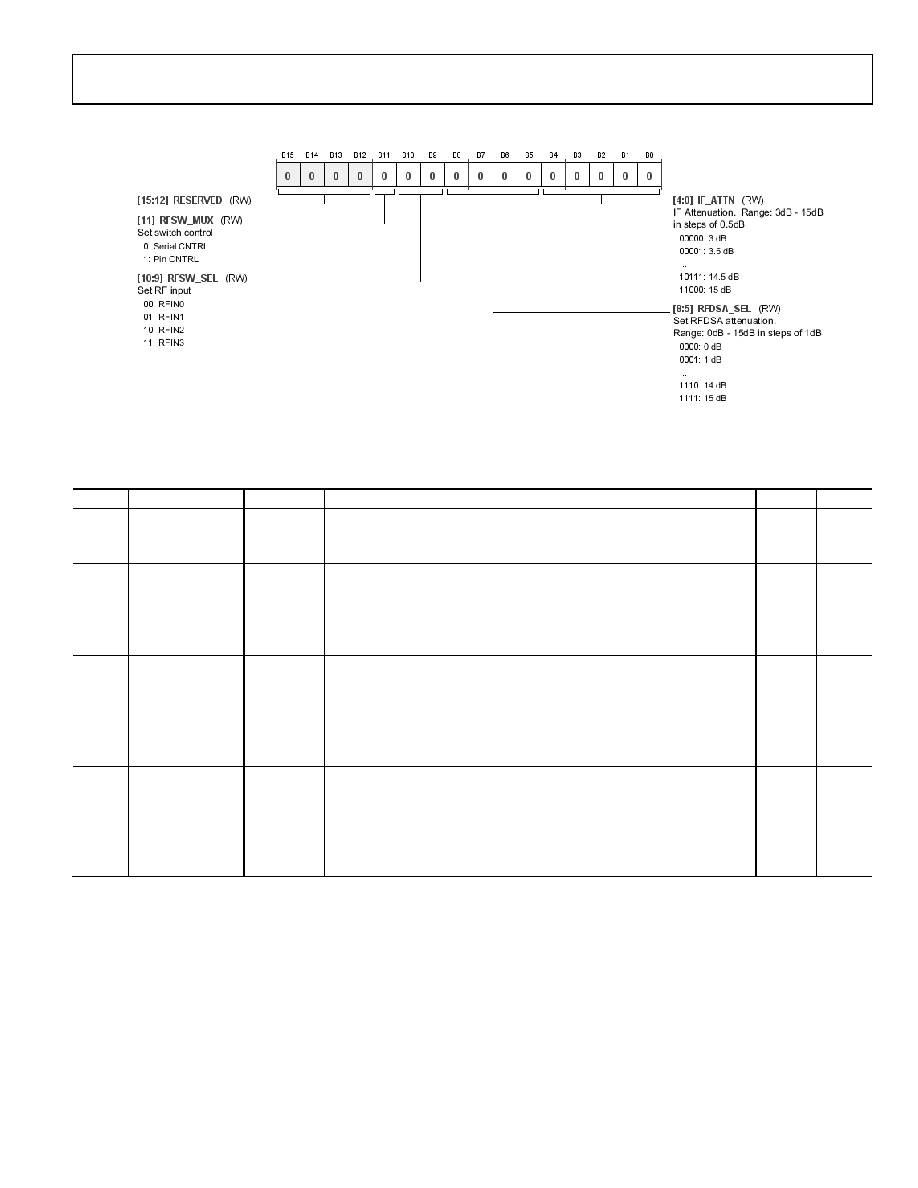

REGISTER 0x23, RESET: 0x0000, NAME: DGA_CTL
Table 30. Bit Descriptions for DGA_CTL
Bits
Bit Name
Settings
Description
Reset
Access
11
RFSW_MUX
Set switch control.
0x0
RW
0
Serial CNTRL
1
Pin CNTRL
[10:9]
RFSW_SEL
Set RF input.
0x0
RW
00
RFIN0
01
RFIN1
10
RFIN2
11
RFIN3
[8:5]
RFDSA_SEL
Set RFDSA attenuation. Range: 0 dB to 15 dB in steps of 1 dB.
0x0
RW
0000
0 dB
0001
1 dB
...
1110
14 dB
1111
15 dB
[4:0]
IF_ATTN
IF Attenuation. Range: 3 dB to 15 dB in steps of 0.5 dB.
0x0
RW
00000
3 dB
00001
3.5 dB
...
10111
14.5 dB
11000
15 dB
