ADRF6620
Data Sheet
Rev. 0 | Page 46 of 52

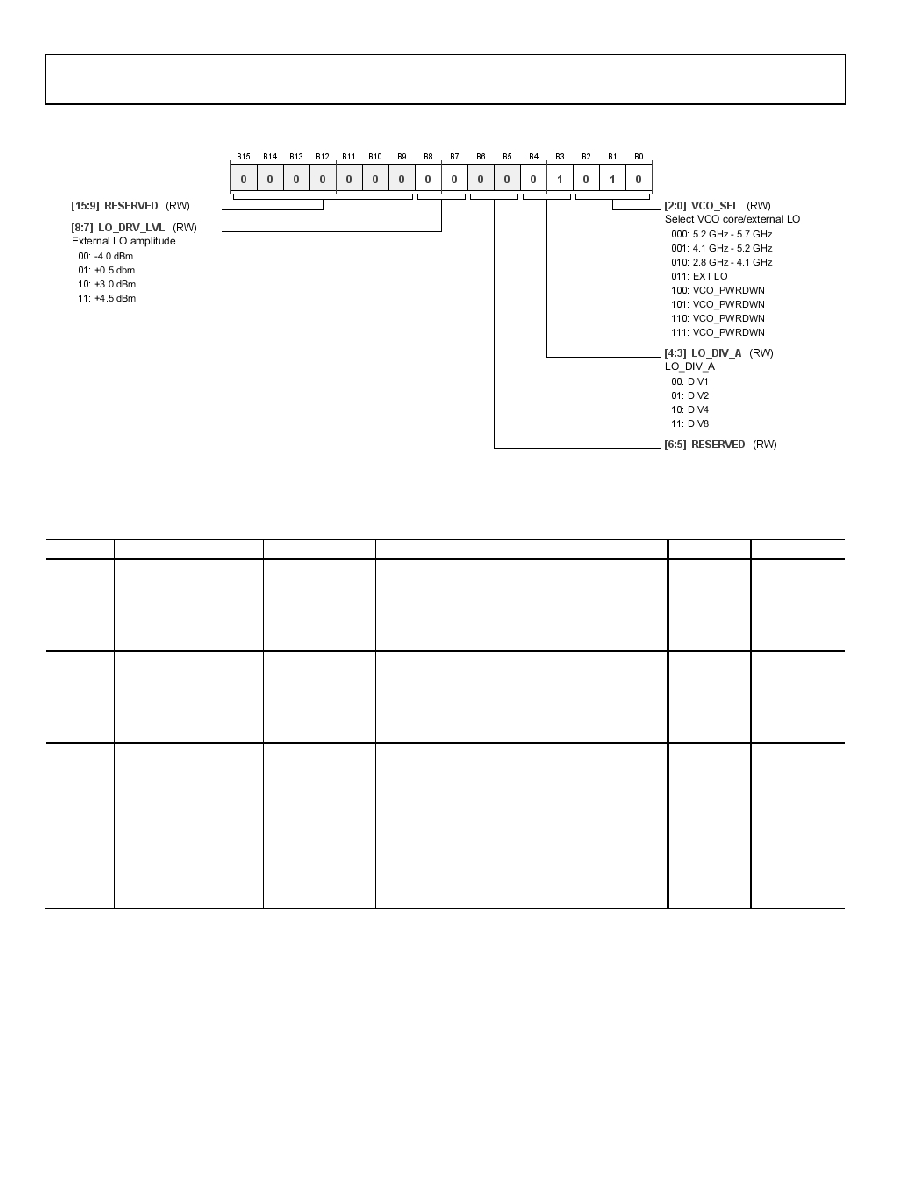

REGISTER 0x22, RESET: 0x000A, NAME: FLO_CTL
Table 29. Bit Descriptions for FLO_CTL
Bits
Bit Name
Settings
Description
Reset
Access
[8:7]
LO_DRV_LVL
LO amplitude
0x0
RW
00
−4 dBm
01
0.5 dBm
10
+3 dBm
11
+4.5 dBm
[4:3]
LO_DIV_A
LO_DIV_A
0x1
RW
00
DIV1
01
DIV2
10
DIV4
11
DIV8
[2:0]
VCO_SEL
Select VCO core/external LO
0x2
RW
000
5.2 GHz to 5.7 GHz
001
4.1 GHz to 5.2 GHz
010
2.8 GHz to 4.1 GHz
011
EXT LO
100
VCO_PWRDWN
101
VCO_PWRDWN
110
VCO_PWRDWN
111
VCO_PWRDWN
