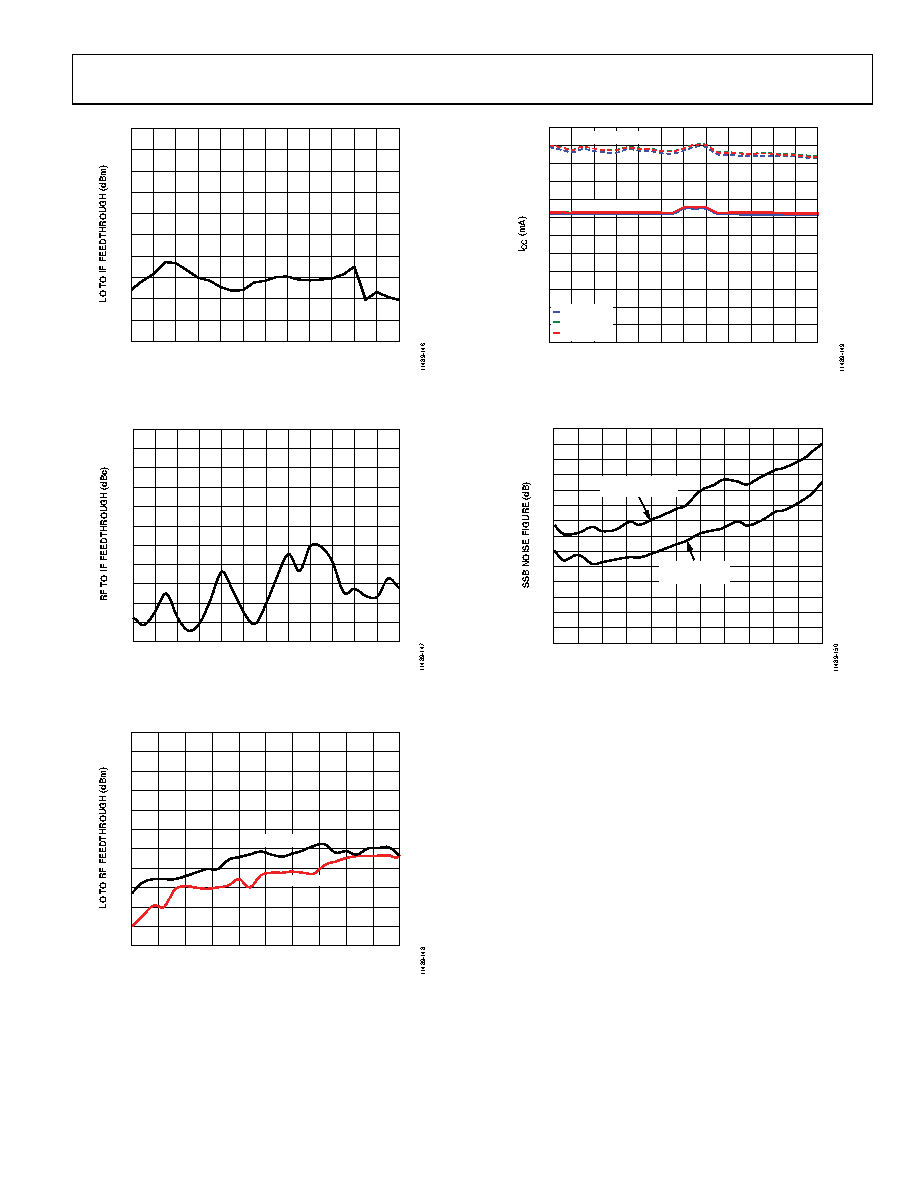

19 / 52 page

Data Sheet

ADRF6620

Rev. 0 | Page 19 of 52

–50

–45

–40

–35

–30

–25

–20

–15

–10

–5

800

1200

1600

2000

2400

2800

3200

LO FREQUENCY (MHz)

Figure 49. LO to IF Feedthrough at Mixer Output Without Filtering

800

1200

1600

2000

2400

2800

3200

RF FREQUENCY (MHz)

–55

–50

–45

–40

–35

–30

–25

–20

–15

–10

–5

Figure 50. RF to IF Feedthrough at Mixer Output Without Filtering;

Mixer Input Power = 0 dBm

–110

–100

–90

–80

–70

–60

–50

–40

–30

–20

–10

350

600

850

1100 1350 1600 1850 2100 2350 2600 2850

LO FREQUENCY (MHz)

EXTERNAL LO

INTERNAL LO

Figure 51. LO to RF Feedthrough; PLO = 0 dBm

100

125

150

175

200

225

250

275

300

600

1000

1400

1800

2200

2600

3000

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

INTERNAL LO

EXTERNAL LO

Figure 52. ICC vs. RF Frequency; DGA and LO Output Disabled

600

1000

1400

1800

2200

2600

RF FREQUENCY (MHz)

OPTIMIZED FOR

HIGH LINEARITY

NOISE FIGURE

OPTIMIZED

Figure 53. SSB Noise Figure vs. RF Frequency (see Table 16)
