AT86RF211DAI-R 데이터시트(PDF) 45 Page - ATMEL Corporation

부품명 AT86RF211DAI-R
상세설명  FSK Transceiver for ISM Radio Applications
PDF  48 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ATMEL [ATMEL Corporation]
홈페이지  http://www.atmel.com
Logo ATMEL - ATMEL Corporation

AT86RF211DAI-R 데이터시트(HTML) 45 Page - ATMEL Corporation

Back Button AT86RF211DAI-R Datasheet HTML 40Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 41Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 42Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 43Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 44Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 45Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 46Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 47Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 48Page - ATMEL Corporation
Zoom Inzoom in Zoom Outzoom out
 45 / 48 page
background image
45
AT86RF211
1942C–WIRE–06/02

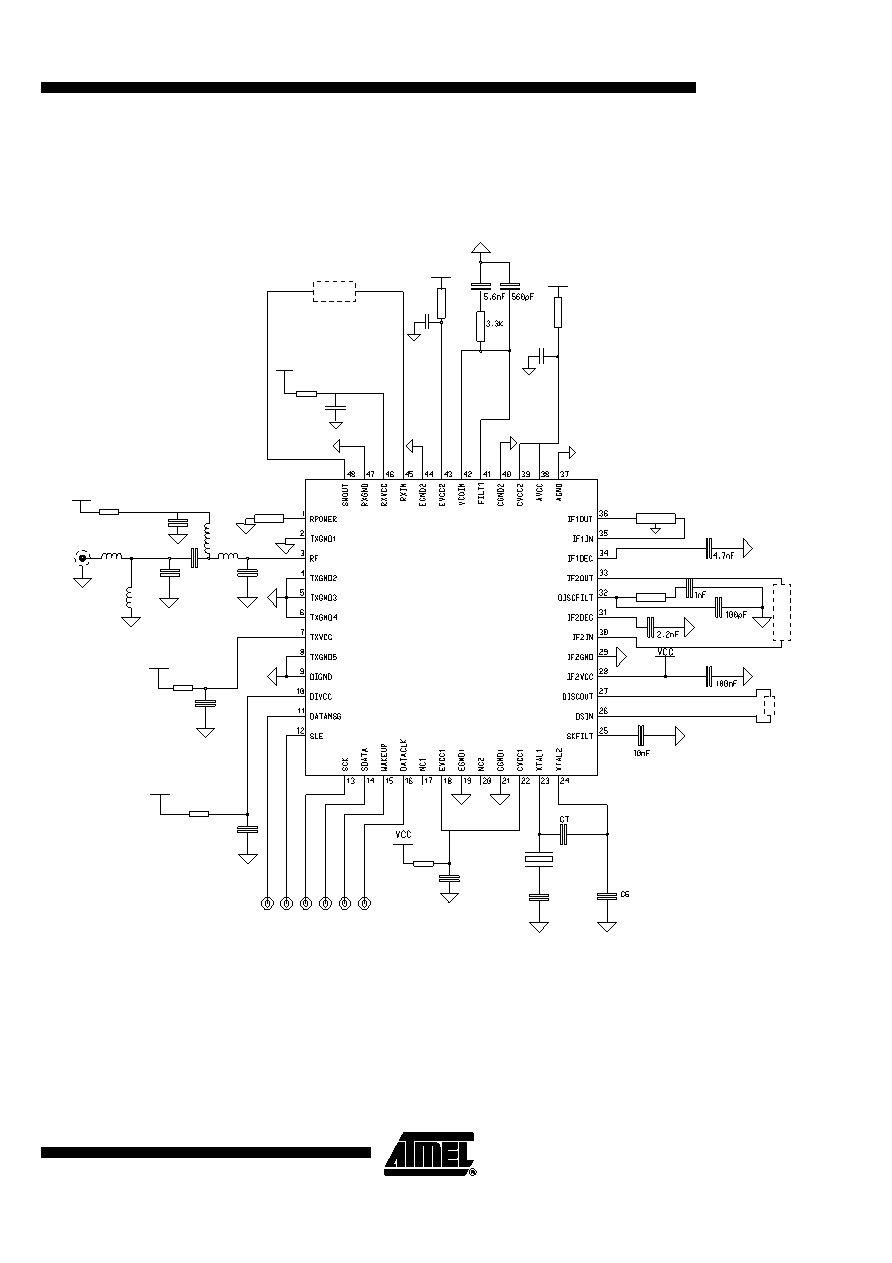

Typical Application
Implementation
Note:
Accurate information about parts and values of components to be used around AT86RF211 are described in our application
notes. "RF Bill-of-Material/cost for 868-915 MHz applications".
IF1 Filter: 10.7 MHz
or
21.4 MHz
10.245 MHz
or
20.945 MHz
AT86RF211
Rpower
VCC
VCC
VCC
Optional
SAW Filter
VCC
VCC
Optional
RC Filter
IF2
Optional
Ceramic
Filter
(455 kHz)
SAW
VCC
VCC
ANTENNA
