AT86RF211DAI-R 데이터시트(PDF) 5 Page - ATMEL Corporation

부품명 AT86RF211DAI-R
상세설명  FSK Transceiver for ISM Radio Applications
PDF  48 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ATMEL [ATMEL Corporation]
홈페이지  http://www.atmel.com
Logo ATMEL - ATMEL Corporation

AT86RF211DAI-R 데이터시트(HTML) 5 Page - ATMEL Corporation

  AT86RF211DAI-R Datasheet HTML 1Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 2Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 3Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 4Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 5Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 6Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 7Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 8Page - ATMEL Corporation AT86RF211DAI-R Datasheet HTML 9Page - ATMEL Corporation Next Button
Zoom Inzoom in Zoom Outzoom out
 5 / 48 page
background image
5
AT86RF211
1942C–WIRE–06/02
Block Diagram

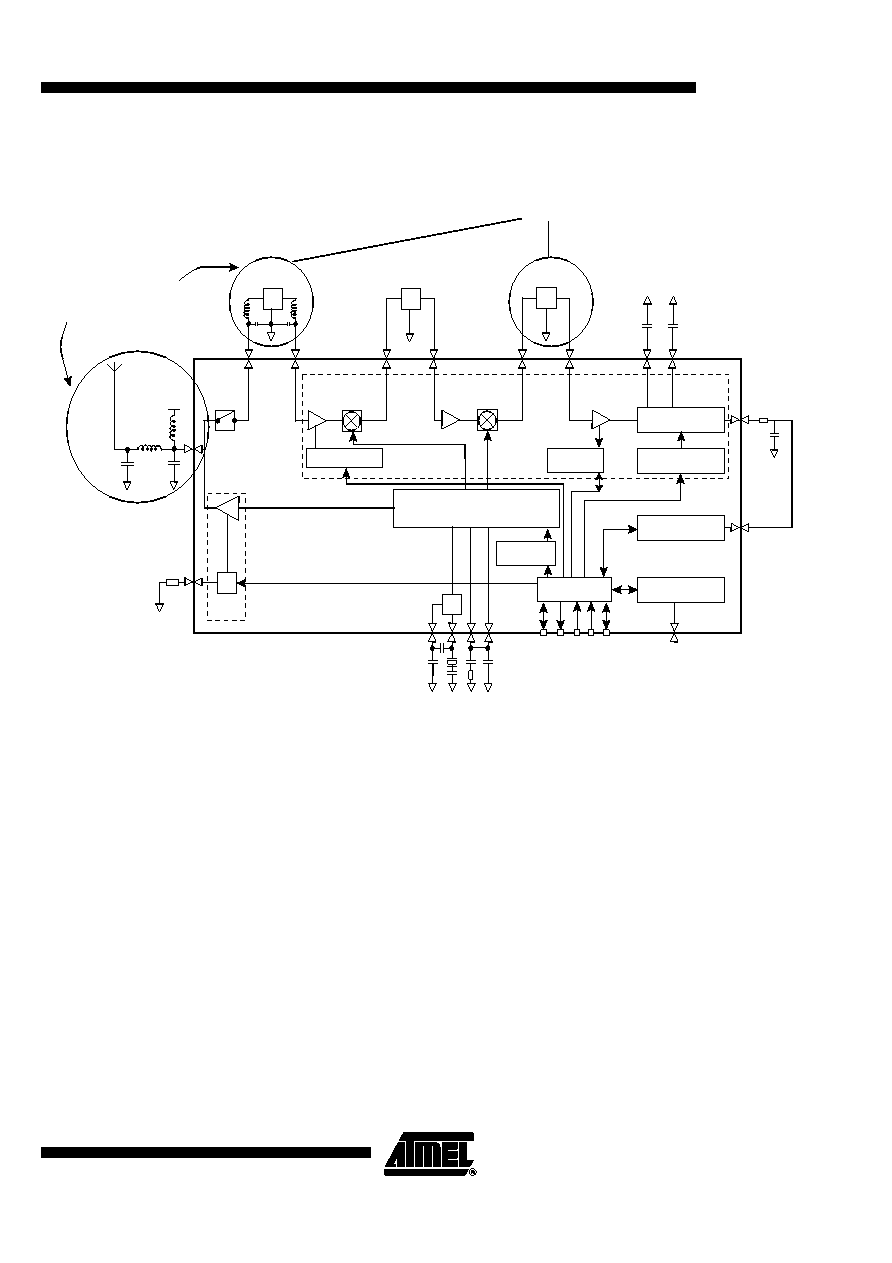

Figure 4. AT86RF211 Block Diagram
SYNTHESIZER
FREQUENCY
CTRL
CONTROL LOGIC
WAKE-UP
DATA SLICER
BANDWIDTH CTRL
RSSI LEVEL
FM DISCRIMINATOR
OPTIONAL
FILTER
IF2
FILTER
455 kHz
PWR
CTRL
TX
PA
Optional
These are the only blocks that depend
on the selected ISM band (433, 868
or 915 MHz): dual band applications
can be done by only switching them.
Synthesizer, loop filter, IF filter(s),
power supply decoupling are identical.
GAIN MIN/MAX
Rx
AERIAL
MATCHING
CIRCUIT
DATA
MSG
DATA
CLK
SDATA
WAKE-UP
SLE
SCK
IF2
AMP
IF1
AMP
MIXER2
IF1
FILTER
10.7 MHz
or
21.4 MHz
LNA
MIXER1
TX/RX
RF
FILTER
RPOWER
OSC
10.245 MHz
or
20.945 MHz
