DS31256 256-Channel, High-Throughput HDLC Controller
10 of 183

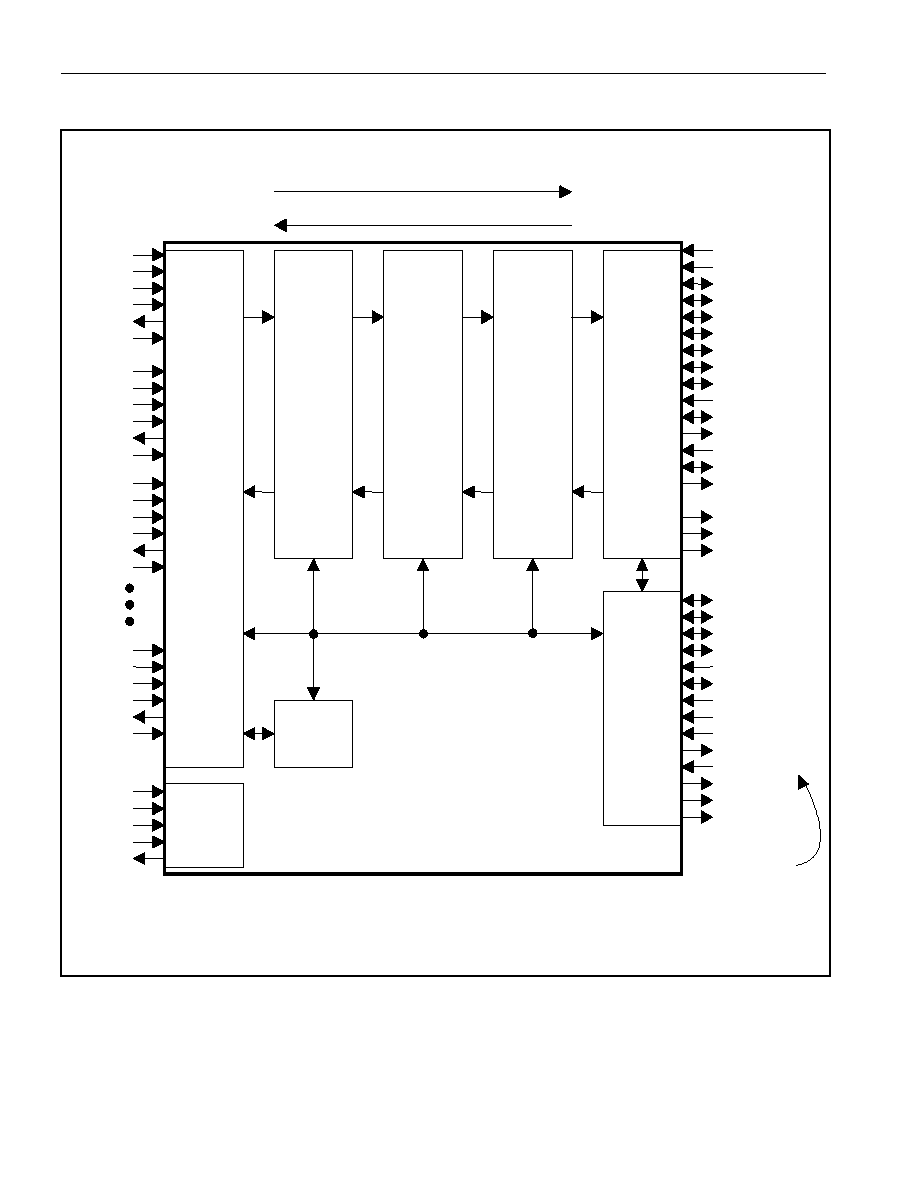

Figure 2-1. Block Diagram
RC2
RD2
RS2
TC2
TD2
TS2
JTDO
PCLK
PAD[31:0]
PRST
PCBE[3:0]
PPAR
PFRAME
PIRDY
PTRDY
PSTOP
PIDSEL
PDEVSEL
PREQ
PGNT
PPERR
PSERR
RC15
RD15
RS15
TC15
TD15
TS15
RC0
RD0
RS0
TC0
TD0
TS0
RC1
RD1
RS1
TC1
TD1
TS1
PXAS
PXDS
PXBLAST
JTRST
JTDI
JTMS
JTCLK
LA[19:0]
LD[15:0]
LWR (LR/W)
LRD (LDS)
LIM
LINT
LRDY
LMS
LCS
LHOLD (
LBR)
LHLDA (
LBG)
LBGACK
LCLK
Pin Names in ( )
are active when
the device is in
the MOT mode
(i.e., LIM = 1)
LBHE
JTAG
Test
Access
(Sec. 12)
Local
Bus
Block
(Sec. 11)
Layer
One
Block
(Sec. 6)
HDLC
Block
(Sec. 7)
FIFO
Block
(Sec. 8)
DMA
Block
(Sec. 9)
PCI
Block
(Sec. 10)
BERT
(Sec. 6.5)
RECEIVE DIRECTION
TRANSMIT DIRECTION
Dallas Semiconductor
DS31256



Html Pages
