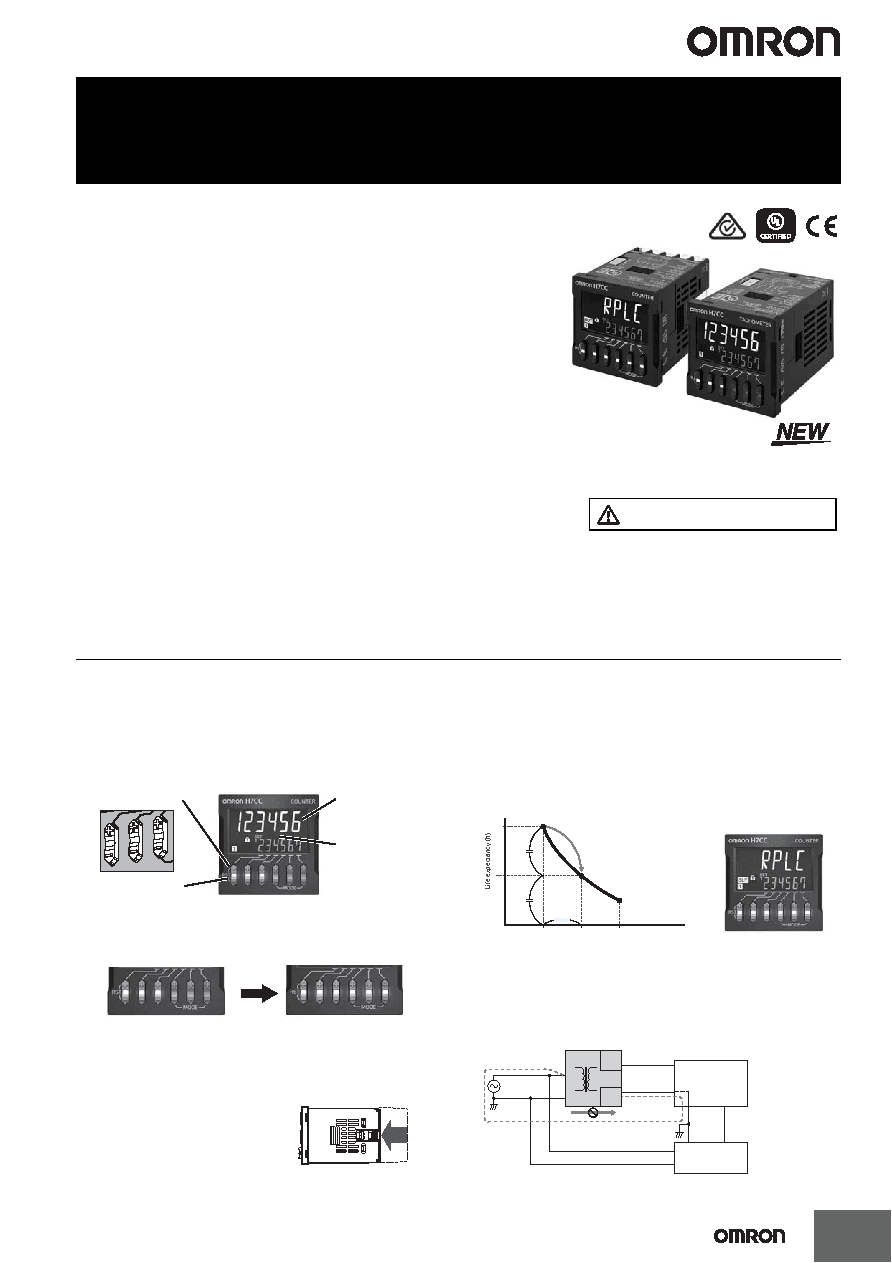

1 / 66 page  1 Digital Counter/Tachometer H7CC New and improved design for easier use, programming, maintenance and user feedback The improved user interface is intuitive and offers better overall visibility. Replacement time notification function notifies the user of potential preventive maintenance Basic Features • The white-color display offers better visual clarity and visibility, and the color universal design is used. • Up/Down Keys are provided for all six digits, which reduces the number of button operations during setup and other processes. • An easy operation is realized by the operation guide on which each key lights up. • The progress can be easily understood at one glance from the status indicators of the present value and the measurement value. • The body depth of all models with screw terminals has been reduced to 59 mm. Safety and Reliability • The replacement time is notified in advance by predicting the service life. • The power supply circuit and input circuits are isolated in all models, and therefore, there is no need of any wiring restrictions. Other Features • Follows the ratings, characteristics, and functionality of the H7CX-N. • Equipped with the Output Allocation and Output ON/OFF Inversion Function. • Equipped with a Memory Backup and H7AN Compatibility Function to facilitate problem-free conversion from H7CN/H7AN. Features Basic Features Better visual feedback and operation The white-color display offers better visual clarity and visibility, and the color universal design is used. The keys of all six digits can be operated up/down for easier use. The LED indicator of the operable keys lights up to support setup. Status Notification by Status Indicator The status can be indicated by the ratio of the present value or measurement value to the set value, which makes it easy to understand the status. Shortened Body The body depth of all models with screw terminals has been reduced to 59 mm, which contributes to thinner control panels! Safety and Reliability Notification of Replacement Time The service life prerequisites of the counter include the relay output count and the deterioration of the electrolytic capacitors. In the H7CC, in addition to the relay output count, an alarm is displayed when the deterioration of electrolytic capacitors due to the cumulative run time reaches the standard value, and planned maintenance is supported. Note: For details, refer to Replacement Time Notification Function on pages 41 and 57. Isolated Power Supply and Input Circuits In all models, the power supply circuit and input circuits are isolated. Previous non-isolated counters had wiring restrictions and could be damaged if wired incorrectly. The H7CC removes these worries. Refer to Safety Precautions page 61. For the most recent information on models that have been certified for safety standards, refer to your OMRON website. Simplified operation by the Up/Down Keys for all six digits The operable keys light up to support setup Color universal design is used White-color display improves visibility Three indicators light up when the status reaches 50% All indicators light up when the status reaches 100% Models with Screw Terminals: 59 mm Models with Sockets: 63.7 mm (case dimension) New models Previous models Relationship between the life expectancy of electrolytic capacitors and temperature (Example) a 35 45 55 Temperature (°C) 10°C a 2 The service life reduces to half when the temperature rises to 10°C. H7CC Input terminal 0V terminal COM terminal -V +V DC stabilized power supply There is no sneak current from wires because of transformer-type power supply. * Grounding of AC power supply implies grounding at the commercial power supply side. AC power supply * PLC or other output terminals |
