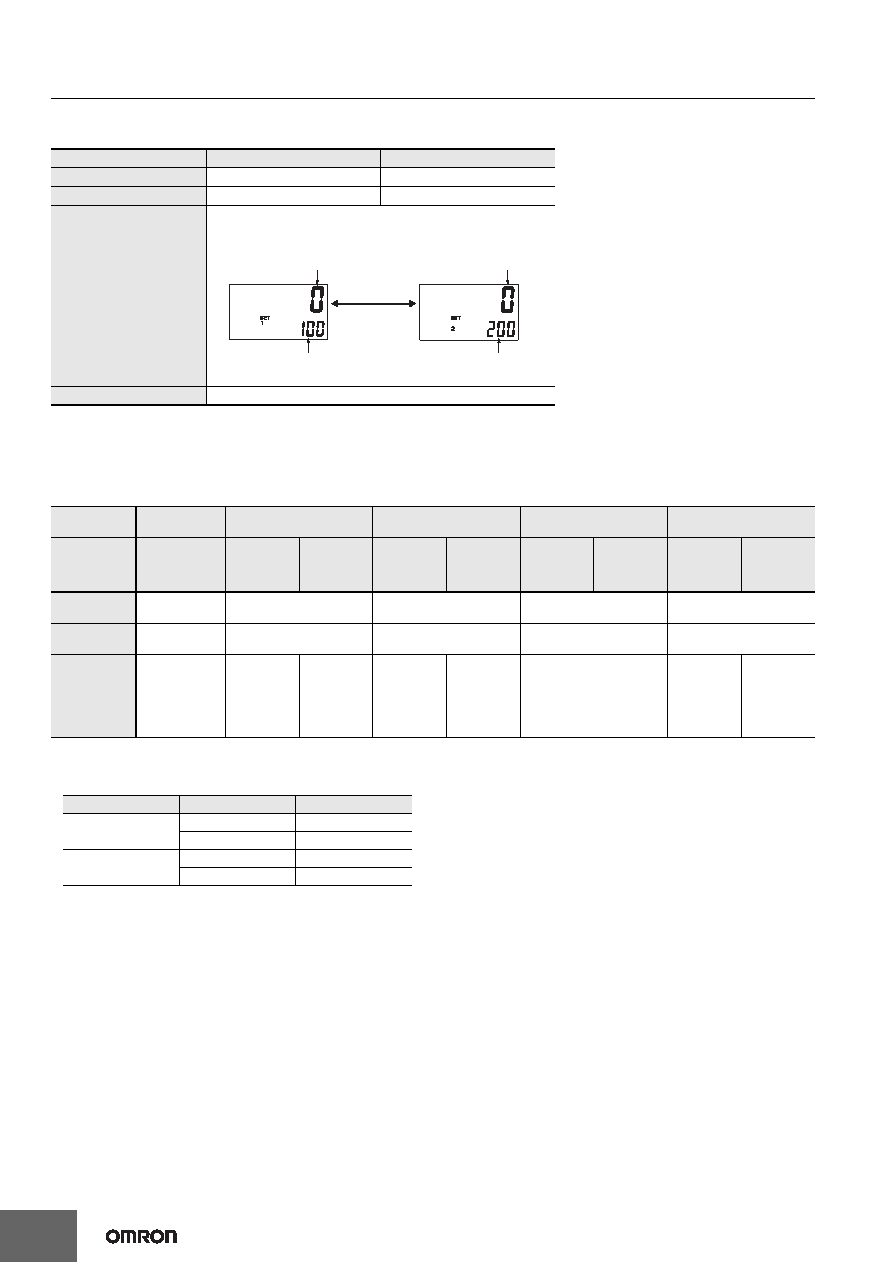

H7CC-R11D datasheet(30/66 Pages) OMRON

30 / 66 page

H7CC-A

Counter

Twin Counter Operation

Two independent counters are built in.

Note: 1. Only 2-stage models

2. Increment mode only for counters 1 and 2.

3. The settings for prescaling and the decimal point are used by both counter 1 and 2.

Reset Function List

I/O Functions for Counter Operation

• The following table shows the delay from when the present value passes the set value until the output is produced.

Actual measurements in N and K-2 modes (Reference values)

Note: The above times may vary slightly depending on the mode or operating conditions.

Counter 1

Counter 2

Counter input

CP1

CP2

Reset input

Reset 1

Reset 2

Present value display and

setting

Reset operation

Only counters appearing on the display will be reset.

Counter 1 present value

Counter 1 set value

Counter 2 present value

Counter 2 set value

Counter 1 display

Counter 2 display

UP1+UP3

DW1+DW3

Function

1-stage/2-stage

preset counter

Total and preset counter

Batch counter

Dual counter

Twin counter

Screen

displayed in

run mode

Present value/

set value (1, 2)

Present

value/

set value

Total count

value

Present

value/

set value

Batch count

value/

batch count

set value

Dual count

value/dual

count set

value

CP1 present

value/

CP2 present

value

Present

value 1/

Set value 1

Present

value 2/

Set value 2

Reset/reset 1

Present value

and output reset.

Present value and output

reset.

Present value and output

reset.

Only the CP1 present value is

reset.

Only the CP1 present value is

reset.

Total reset or

reset 2

No effect

Only the total count value is

reset.

Batch count value and batch

output reset.

Only the CP2 present value is

reset.

Only the CP2 present value is

reset.

Reset

operation

Present value

and output reset.

Present value

and output

reset.

Present

value, total

count value,

and output

reset.

Present value

and output

reset.

Present

value, batch

count value,

output and

batch output

reset.

CP1 present value, CP2

present value, dual count

value, and output reset.

CP1 present

value reset

CP2 present

value reset

Control output type

Max. counting speed

Output delay time

Contact output

30 Hz

16.4 to 18.2 ms

5 kHz

3.9 to 5.4 ms

Transistor output

30 Hz

11.2 to 14.2 ms

5 kHz

0.09 to 0.1 ms
