P9221-R3 Datasheet
© 2017 Integrated Device Technology, Inc.
27
October 20, 2017

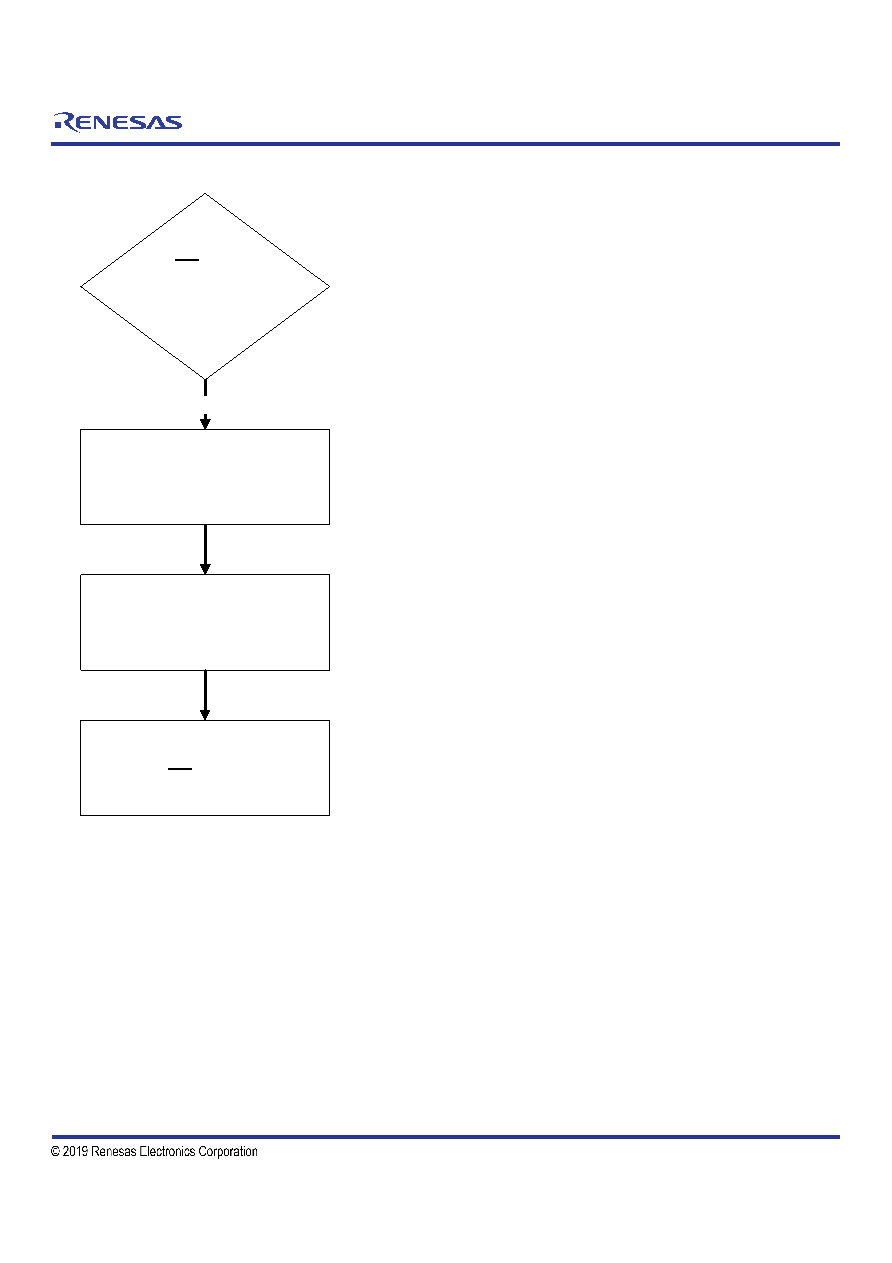

Figure 26. State Diagram for Reading User Data Received from the P9242-R3
Read the incoming user data
registers 0058HEX and 0059HEX
Yes
Set bit 4 of register 0056HEX to “1”
to clear the received data flag
Did the INT pin transition
from HIGH to LOW and is
bit 4 of register 0034HEX
set to “1”?
Set bit 5 of register 004EHEX to “1”
to reset the INT pin
