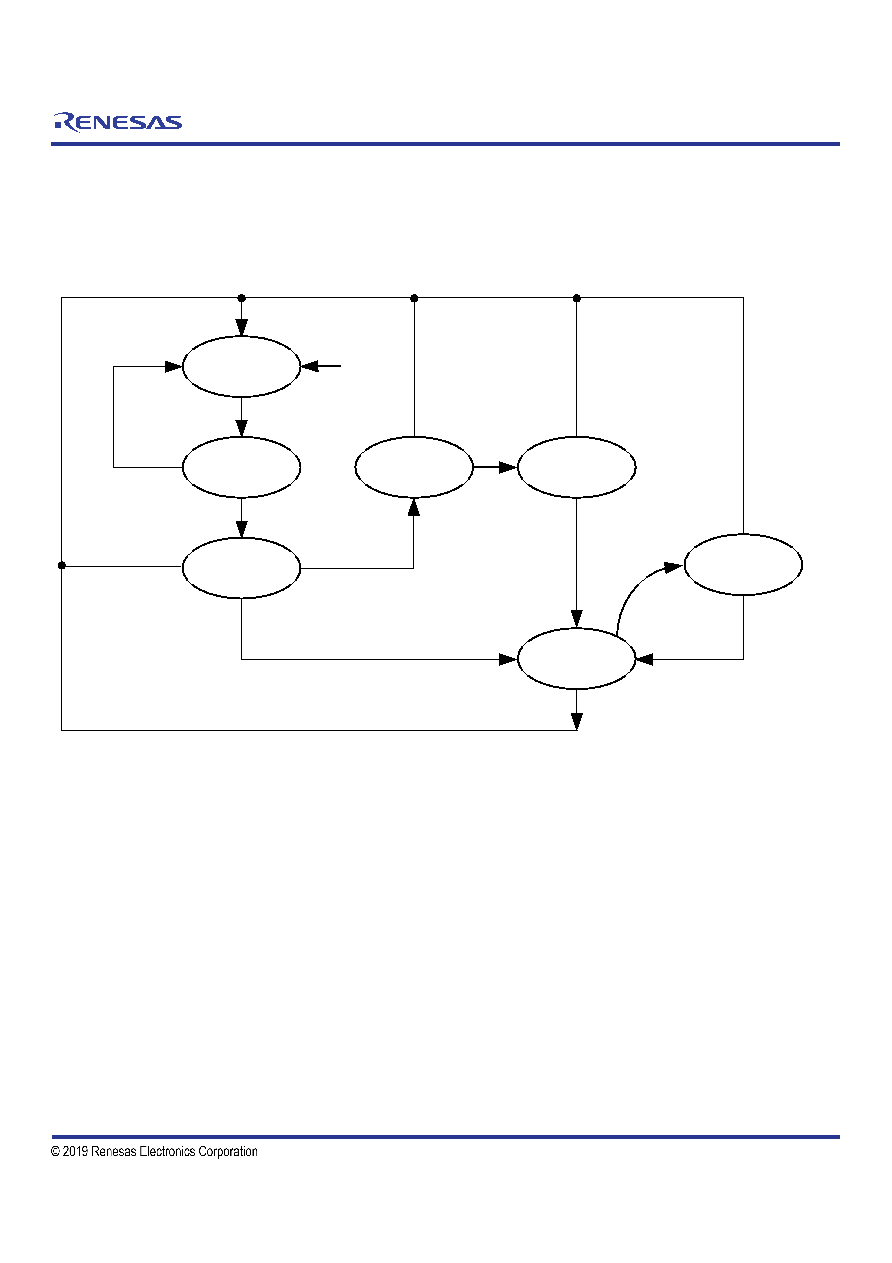

28 / 46 page ![]() P9221-R3 Datasheet © 2017 Integrated Device Technology, Inc. 28 October 20, 2017 11. WPC Mode Characteristics The Extended Power Profile adds a negotiation phase, a calibration phase, and renegotiation phase to the basic system control functionality of the Baseline Power Profile, as shown in Figure 27. Figure 27. WPC Power Transfer Phases Flowchart START Object detected Error condition Negotiation failure or error condition or FOD Calibration successful Negotiation successful Negotiation requested No negotiation requested (≤5W power received only) Renegotiation completed Calibration failure or error condition No response or no power needed Selection Ping Identification and Configuration Negotiation Renegotiation Calibration Power Transfer Power receiver present Power transfer complete or error condition Renegotiation requested Error condition 11.1 Selection Phase or Startup In the selection phase, the power transmitter determines if it will proceed to the ping phase after detecting the placement of an object. In this phase, the power transmitter typically monitors the interface surface for the placement and removal of objects using a small measurement signal. This measurement signal should not wake up a power receiver that is positioned on the interface surface. 11.2 Ping Phase (Digital Ping) In the ping phase, the power transmitter will transmit power and will detect the response from a possible power receiver. This response assures the power transmitter that it is dealing with a power receiver rather than some unknown object. When a mobile device containing the P9221-R3 is placed on a WPC “Qi” charging pad, it responds to the application of a power signal by rectifying this power signal. When the voltage on the VRECT pin is greater than the UVLO threshold, then the internal bandgaps, reference voltage, and internal voltage regulators (5V and 1.8V) are turned on and the microcontroller’s startup is initiated enabling the WPC communication protocol. If the power transmitter correctly receives a signal strength packet, the power transmitter proceeds to the identification and configuration phase of the power transfer, maintaining the power signal output. |
|
