Data Sheet

ADAR4002

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 31 of 66

NOISE FIGURE

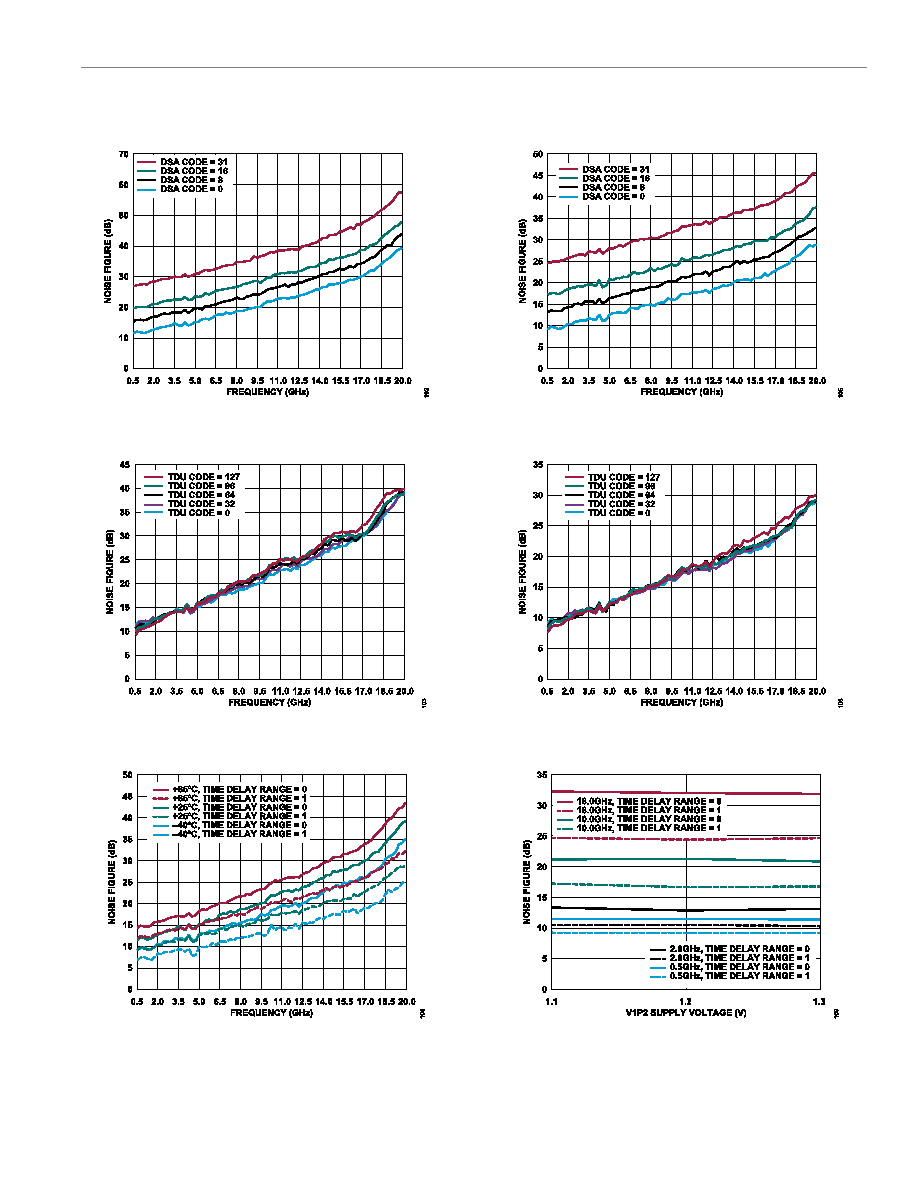

Figure 94. Noise Figure vs. Frequency over DSA Code 0, DSA Code 8, DSA

Code 16, and DSA Code 31, Time Delay Range 0

Figure 95. Noise Figure vs. Frequency over TDU Code 0, TDU Code 32, TDU

Code 64, TDU Code 96, and TDU Code 127, Time Delay Range 0

Figure 96. Noise Figure vs. Frequency over Temperature and Time Delay

Range

Figure 97. Noise Figure vs. Frequency over DSA Code 0, DSA Code 8, DSA

Code 16, and DSA Code 31, Time Delay Range 1

Figure 98. Noise Figure vs. Frequency over TDU Code 0, TDU Code 32, TDU

Code 64, TDU Code 96, and TDU Code 127, Time Delay Range 1

Figure 99. Noise Figure vs. V1P2 Supply Voltage over Frequency and Time

Delay Range
