Data Sheet

ADAR4002

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 21 of 66

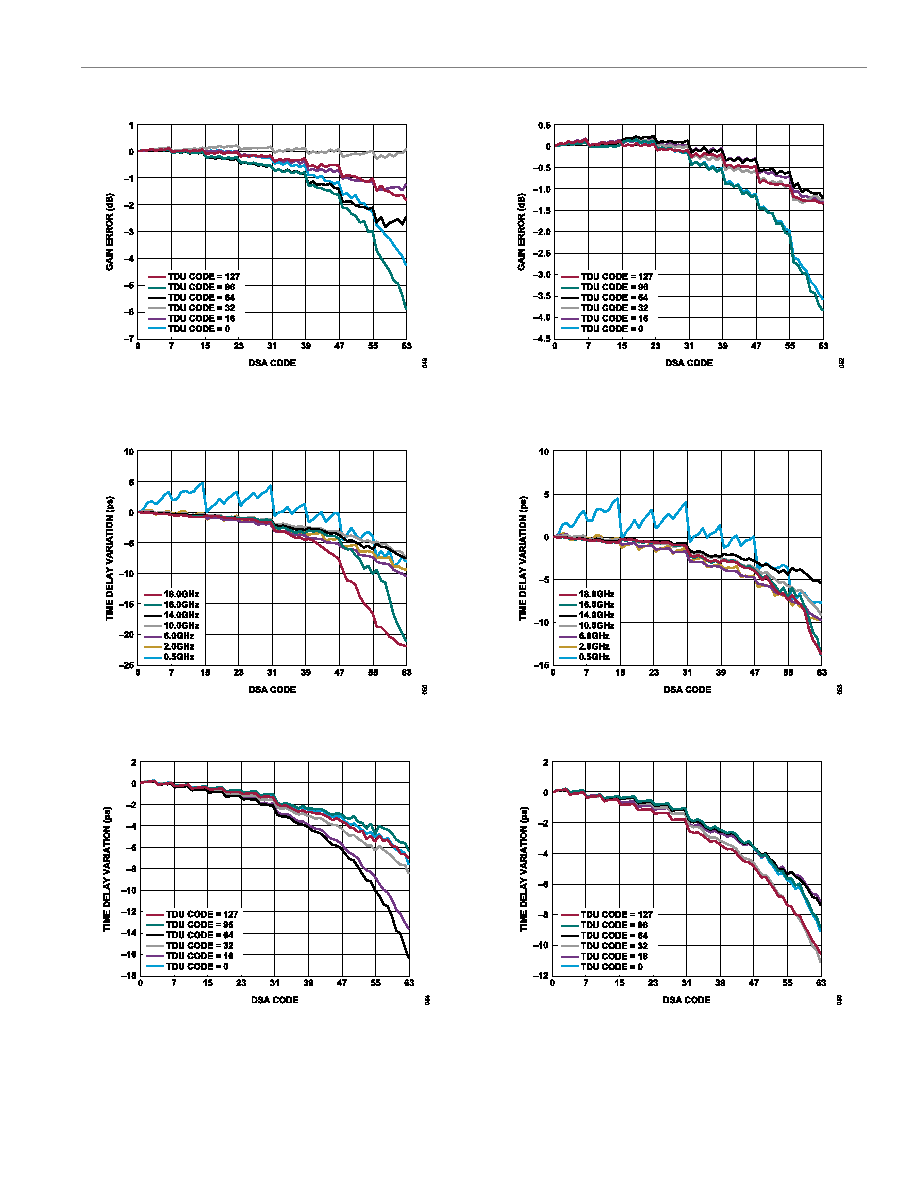

Figure 42. Gain Error vs. DSA Code over TDU Code 0, TDU Code 8, TDU

Code 16, TDU Code 32, TDU Code 64, TDU Code 96, and TDU Code 127, Time

Delay Range 0

Figure 43. Time Delay Variation vs. DSA Code over Frequency, Time Delay

Range 0

Figure 44. Time Delay Variation vs. DSA Code over TDU Code 0, TDU Code 8,

TDU Code 16, TDU Code 32, TDU Code 64, TDU Code 96, and TDU Code 127,

Time Delay Range 0

Figure 45. Gain Error vs. DSA Code over TDU Code 0, TDU Code 8, TDU

Code 16, and TDU Code 32, TDU Code 64, TDU Code 96, and TDU Code 127,

Time Delay Range 1

Figure 46. Time Delay Variation vs. DSA Code over Frequency, Time Delay

Range 1

Figure 47. Time Delay Variation vs. DSA Code over TDU Code 0, TDU Code 8,

TDU Code 16, TDU Code 32, TDU Code 64, TDU Code 96, and TDU Code 127,

Time Delay Range 1
