Data Sheet

ADAR4002

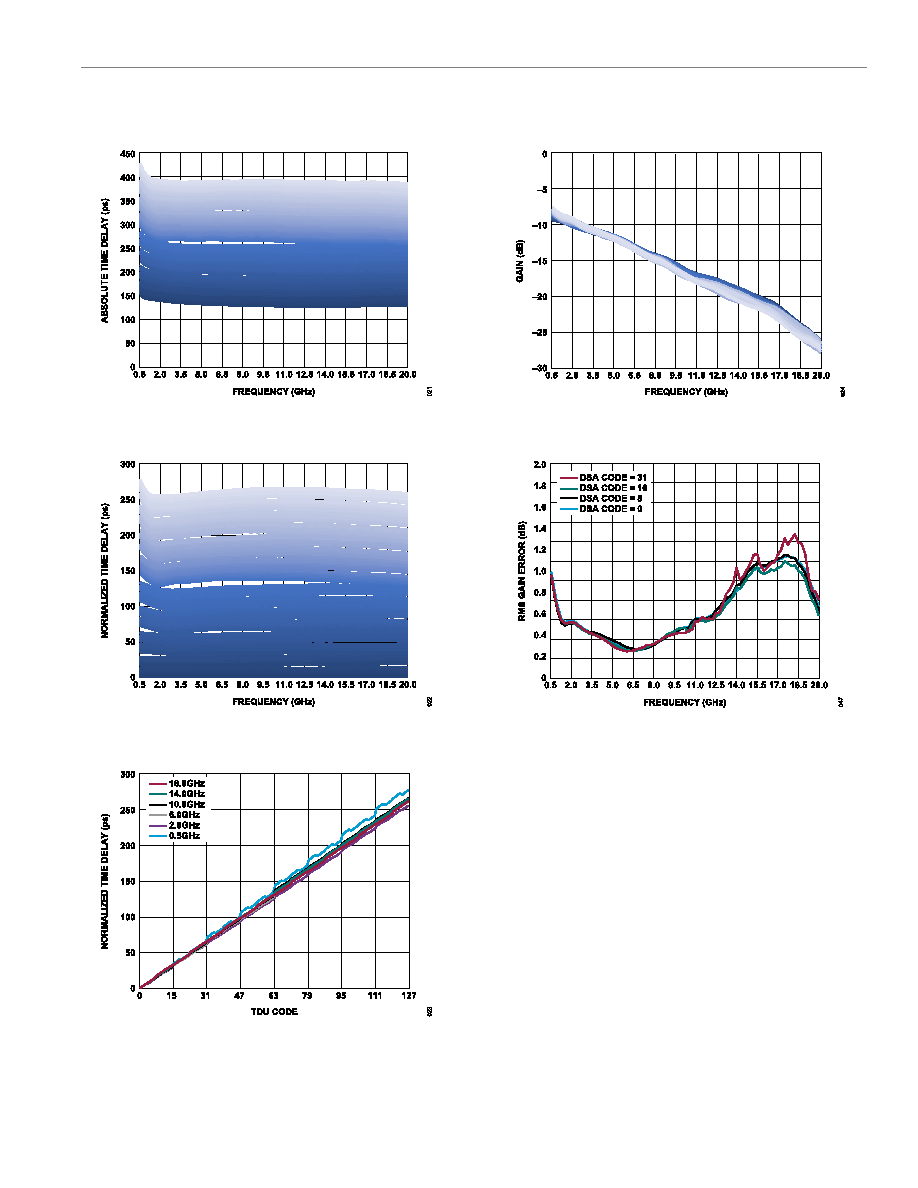

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. A | 16 of 66

TIME DELAY SWEEP, TIME DELAY RANGE 1

Figure 15. Absolute Time Delay vs. Frequency over TDU Code 0 to TDU Code

127, Darkest Blue Is TDU = 0 and Lightest Blue is TDU = 127

Figure 16. Normalized Time Delay vs. Frequency over TDU Code 0 to TDU

Code 127, Darkest Blue Is TDU = 0 and Lightest Blue is TDU = 127

Figure 17. Normalized Time Delay vs. TDU Code over Frequencies 0.5 GHz,

2.0 GHz, 6.0 GHz, 10.0 GHz, 14.0 GHz, and 18.0 GHz

Figure 18. Gain vs. Frequency over TDU Code 0 to TDU Code 127, Darkest

Blue Is TDU = 0 and Lightest Blue is TDU = 127

Figure 19. RMS Gain Variation vs. Frequency, Computed over TDU Code 0 to

TDU Code 127 at DSA Code 0, DSA Code 8, DSA Code 16, and DSA Code 31
