The package for the ADRF6806 features an exposed paddle on

the underside that should be well soldered to an exposed

opening in the solder mask on the evaluation board. Figure 45

illustrates the dimensions used in the layout of the ADRF6806

footprint on the ADRF6806 evaluation board (1 mil. = 0.0254 mm).

Note the use of nine via holes on the exposed paddle. These

ground vias should be connected to all other ground layers on

the evaluation board to maximize heat dissipation from the device

package. Under these conditions, the thermal impedance of the

ADRF6806 was measured to be approximately 30°C/W in still air.

0.168

0.232

0.177

0.035

0.050

0.012

0.025

0.020

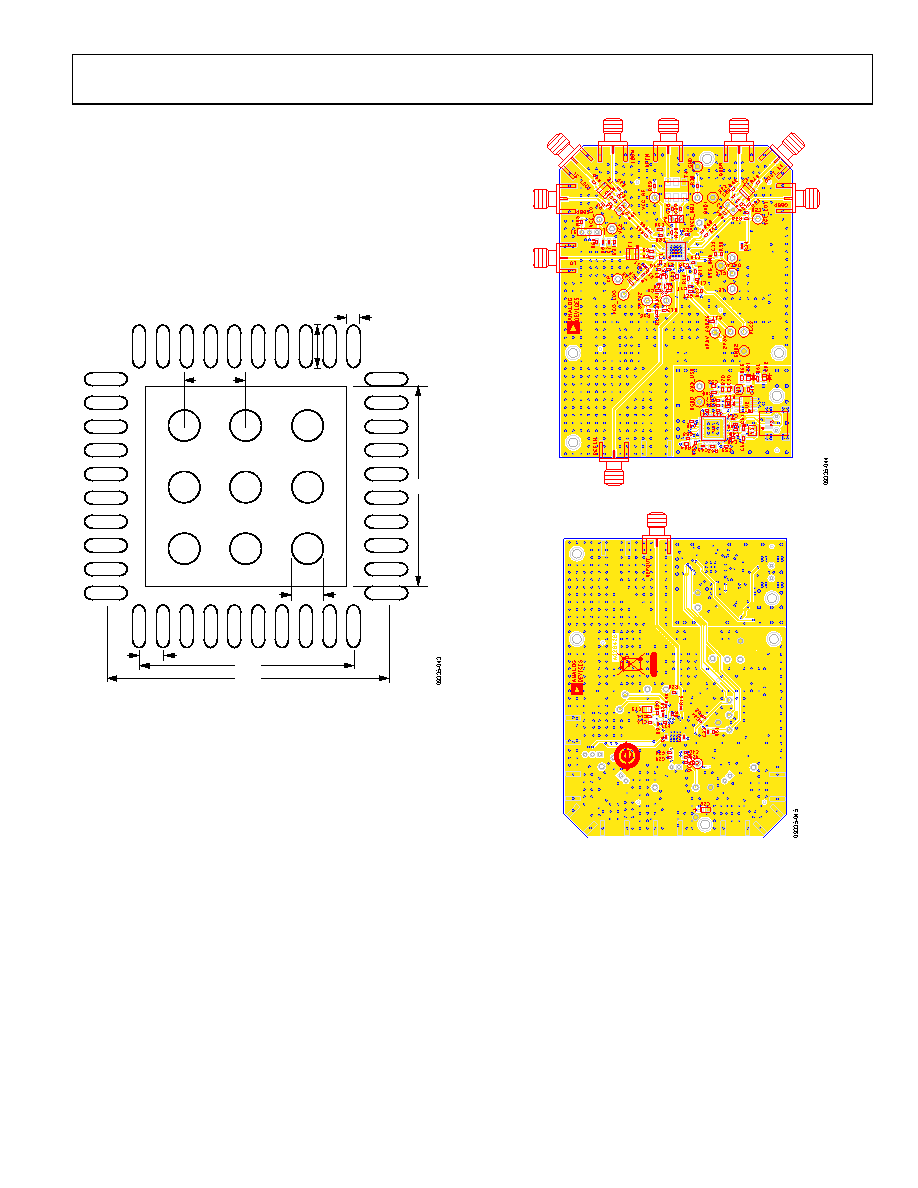

Figure 45. Evaluation Board Layout Dimensions for the ADRF6806 Package

Figure 46. ADRF6806 Evaluation Board Top Layer

Figure 47. ADRF6806 Evaluation Board Bottom Layer
