ADRF6806ACPZ-R7 데이터시트(PDF) 33 Page - Analog Devices

부품명 ADRF6806ACPZ-R7
상세설명  50 MHz to 525 MHz Quadrature Demodulator with Fractional-N PLL and VCO
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

ADRF6806ACPZ-R7 데이터시트(HTML) 33 Page - Analog Devices

Back Button ADRF6806ACPZ-R7 Datasheet HTML 28Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 29Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 30Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 31Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 32Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 33Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 34Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 35Page - Analog Devices ADRF6806ACPZ-R7 Datasheet HTML 36Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 33 / 36 page
background image
Data Sheet
ADRF6806
Rev. B | Page 33 of 36
R&S SMT03 SIGNAL GENERATOR
R&S SMT03 SIGNAL GENERATOR
AGILENT E3631A
POWER SUPPLY
MINI CIRCUITS
ZHL-42W AMPLIFIER
(SUPPLIED WITH +15VDC
FOR OPERATION)
AGILENT 11636A
POWER DIVIDER
(USED AS COMBINER)
REF
RF2
RF1
RF SWITCH MATRIX
ADRF6806
EVALUATION BOARD
RF
6dB
3dB
3dB
3dB
3dB
3dB
6dB
I CH
AGILENT 34980A
MULTIFUNCTION
SWITCH
(WITH 34950 AND 2×
34921 MODULES)
10-PIN
CONNECTION
(+5V VPOS1,
+3.3V VPOS2,
DC MEASURE)
9-PIN D-SUB CONNECTION
(VCO AND PLL PROGRAMMING)
RF
IE
IEEE
IEEE
AGILENT DMM
(FOR I 3.3V VP2 MEAS.)
R&S SMA100
SIGNAL GENERATOR
AGILENT MXA
SPECTRUM ANALYZER
HP 8508A
VECTOR
VOLTMETER
Q CH
AGILENT DMM
(FOR I-5V VP1 MEAS.)
REF
IEEE
IEEE
IEEE
IEEE
IEEE
IEEE
IEEE
IEEE
IEEE
CH A
CH B
6dB

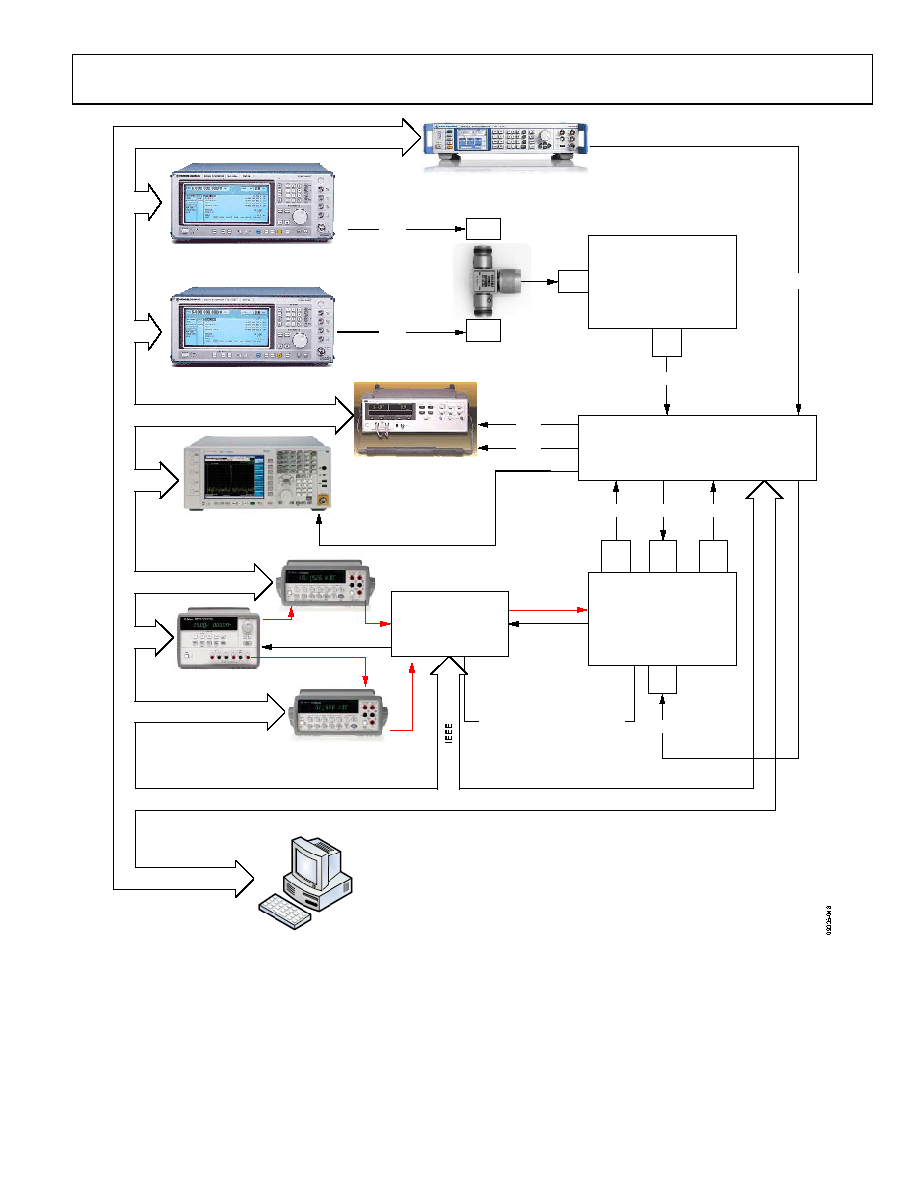

Figure 50. General Characterization Setup
