6 / 20 page

PL138-48

DS20005543B-page 6

 2016 Microchip Technology Inc.

2.0

PIN DESCRIPTIONS

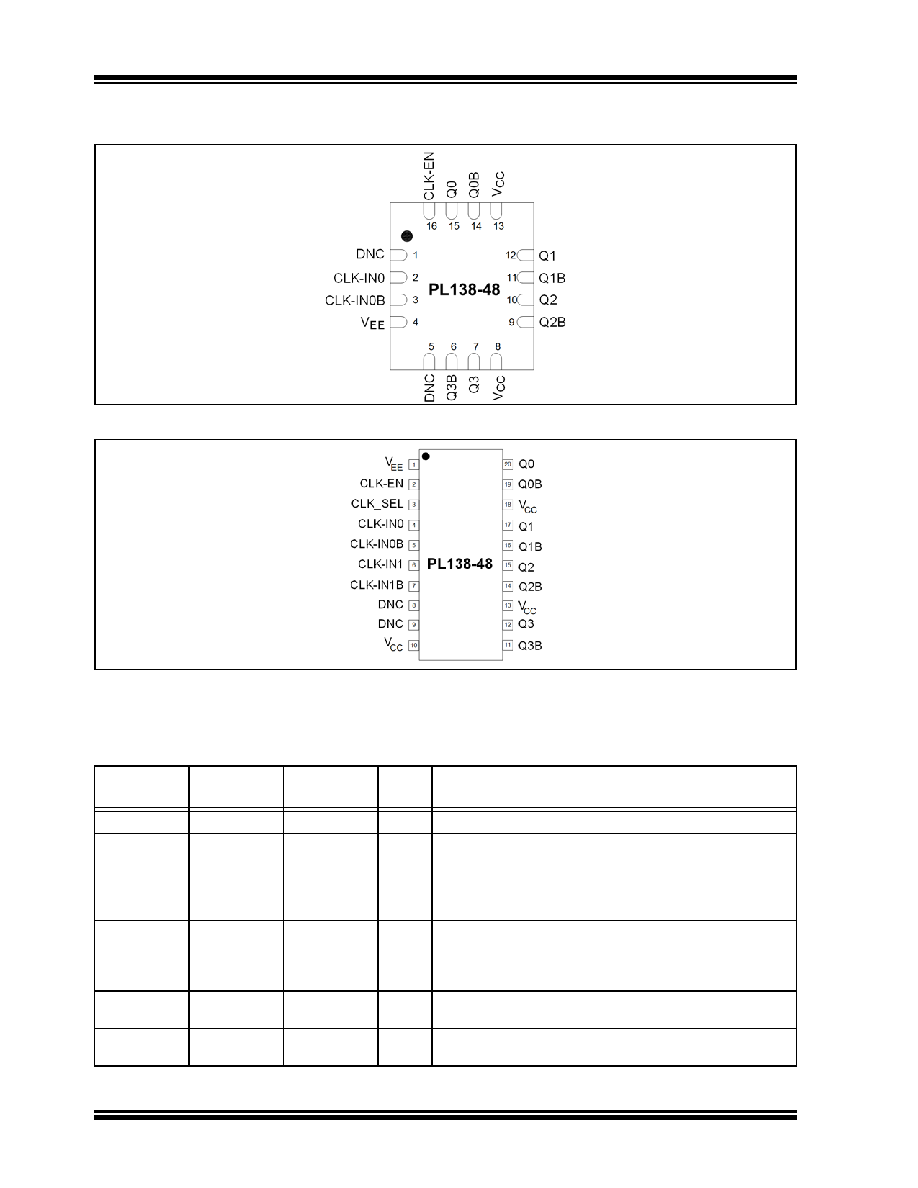

FIGURE 2-1:

Pin Configuration, 16-Pin QFN.

FIGURE 2-2:

Pin Configuration, 20-Pin TSSOP.

The descriptions of the pins are listed in Table 2-1.

TABLE 2-1:

PIN FUNCTION TABLE

Pin Number

QFN-16

Pin Number

TSSOP-20

Pin Name

Type

Description

VEE

Power supply pin connection.

CLK-EN

Synchronizing clock enable.

When HIGH, clock outputs follow clock input. When LOW, Q

outputs are forced low, QB outputs are forced high.

LVTTL/LVCMOS interface levels.

50 kΩ internal pull-up resistor.

—

CLK-SEL

Clock select input. When HIGH, selects CLK1 input. When

LOW, selects CLK0 input.

LVTTL/LVCMOS interface levels.

50 kΩ internal pull-down resistor.

CLK-IN0

True part of differential clock input signal. 75 kΩ internal

pull-down resistor.

CLK-IN0B

Complementary part of differential clock input signal.

100 kΩ internal pull-up and pull-down resistors.
