 2016 Microchip Technology Inc.

DS20005543B-page 1

PL138-48

Features

• Four Differential 2.5V/3.3V LVPECL Output Pairs

• Output Frequency: ≤800 MHz

• Two Selectable Differential Input Pairs

• Translates Any Standard Single-Ended or

Differential Input Format to LVPECL Output. It

Can Accept the Following Standard Input Formats

and More:

- LVPECL, LVCMOS, LVDS, HCSL, SSTL,

LVHSTL, CML

• Output Skew: 25 ps (typ.)

• Part-to-Part Skew: 140 ps (typ.)

• Propagation Delay: 1.5 ns (typ.)

• Additive Jitter: <100 fs (max.)

• Operating Supply Voltage: 2.375V ~ 3.63V

• Operating Temperature Range from –40°C to

+85°C

• Package Availability: 16-Pin QFN and 20-Pin

TSSOP

General Description

The PL138-48 is a high performance low-cost 1:4

outputs differential LVPECL fanout buffer.

Microchip’s family of differential LVPECL buffers are

designed to operate from a single power supply of 2.5V

±5% or 3.3V ±10%. The differential input pairs are

designed to accept most standard input signal levels,

using an appropriate resistor bias network, and

produce a high quality set of outputs with the lowest

possible skew on the outputs, which is guaranteed for

part-to-part or lot-to-lot skew.

Designed to fit in a small form-factor package, the

PL138-48 offers up to 800 MHz of output operation with

very low-power consumption and lowest additive jitter

of any comparable device.

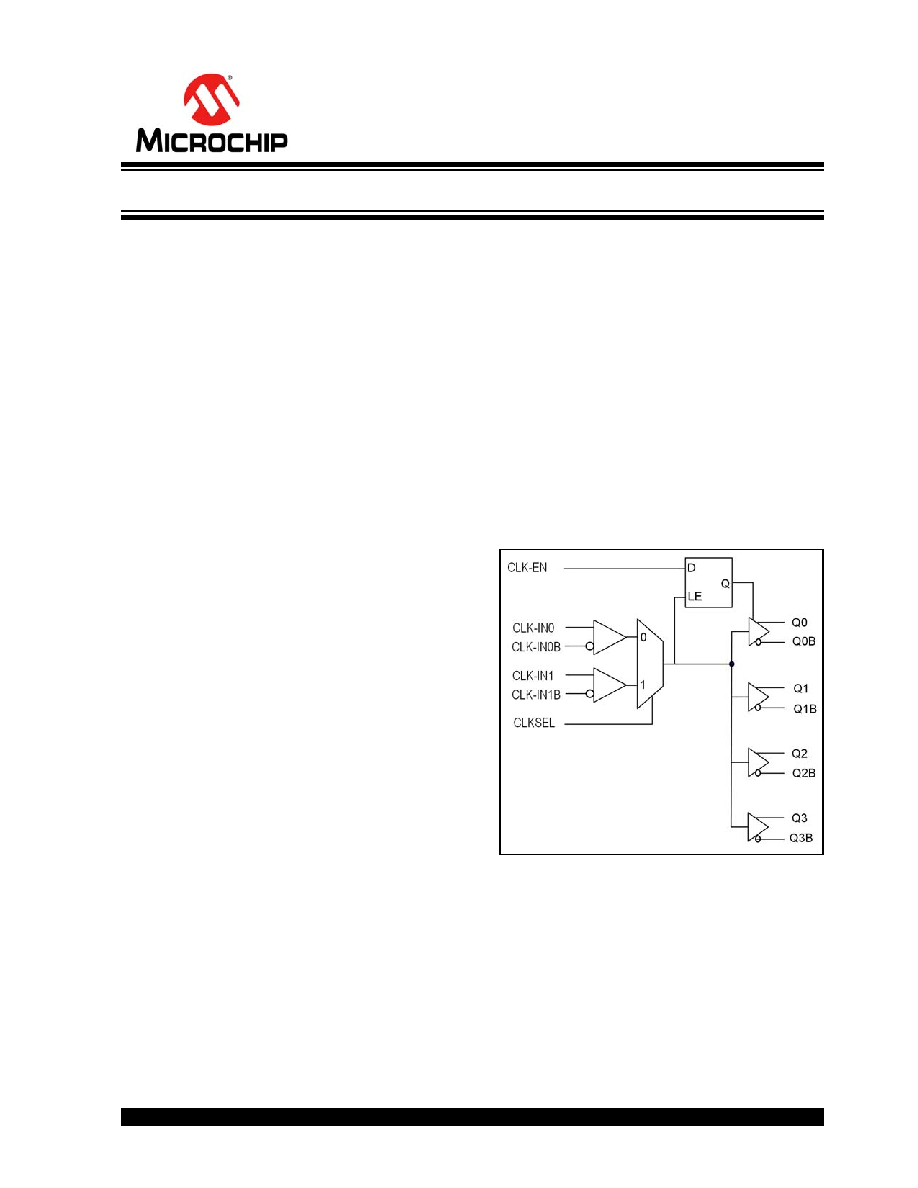

Block Diagram

2.5V to 3.3V, Low-Skew, 1:4 Differential PECL Fanout Buffer
