Data Sheet
ADRF6820
Rev. C | Page 33 of 45

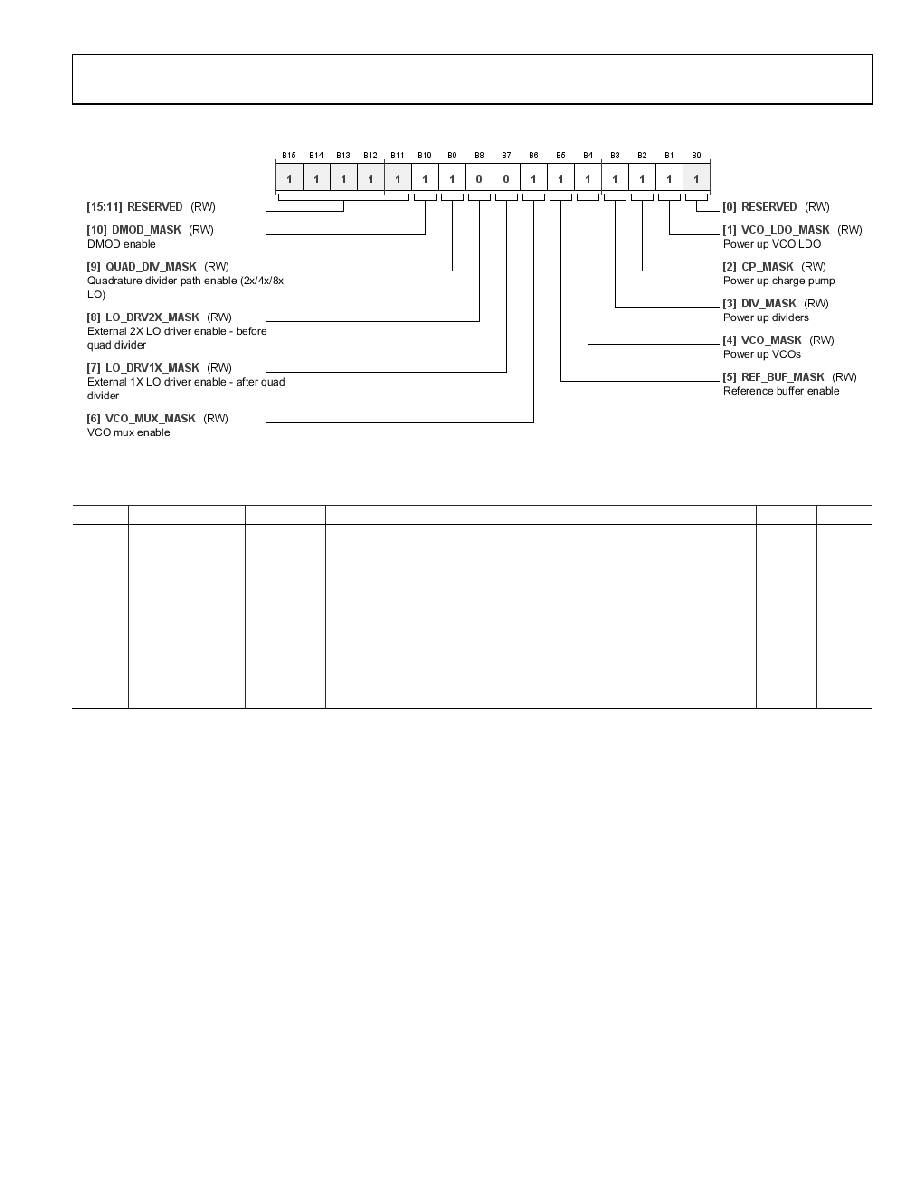

Address: 0x10, Reset: 0xFE7F, Name: PWRDWN_MASK
Table 23. Bit Descriptions for PWRDWN_MASK
Bits
Bit Name
Settings
Description
Reset
Access
10
DMOD_MASK
Demodulator (DMOD) enable
0x1
RW
9
QUAD_DIV_MASK
Quadrature divider path enable (2×/4×/8× LO)
0x1
RW
8
LO_DRV2X_MASK
External 2× LO driver enable—before quad divider
0x0
RW
7
LO_DRV1X_MASK
External 1× LO driver enable—after quad divider
0x0
RW
6
VCO_MUX_MASK
VCO mux enable
0x1
RW
5
REF_BUF_MASK
Reference buffer enable
0x1
RW
4
VCO_MASK
Power up VCOs
0x1
RW
3
DIV_MASK
Power up dividers
0x1
RW
2
CP_MASK
Power up charge pump
0x1
RW
1
VCO_LDO_MASK
Power up VCO LDO
0x1
RW
