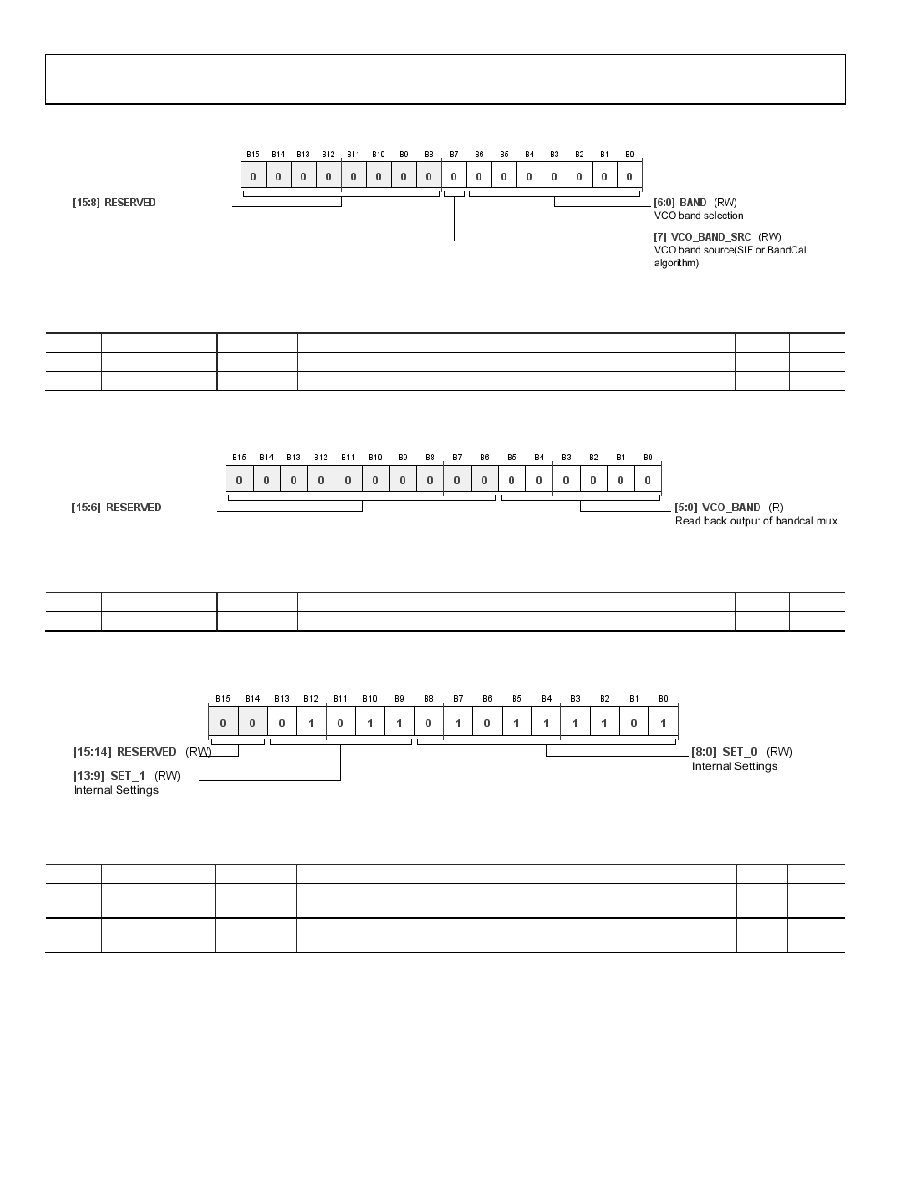

ADRF6820
Data Sheet
Rev. C | Page 44 of 45
Address: 0x45, Reset: 0x0000, Name: VCO_CTL2
Table 37. Bit Descriptions for VCO_CTL2
Bits
Bit Name
Settings
Description
Reset
Access
7
VCO_BAND_SRC
VCO band source (SIF or BANDCAL algorithm)
0x0
RW
[6:0]
BAND
VCO band selection
0x00
RW
Address: 0x46, Reset: 0x0000, Name: VCO_RB
Table 38. Bit Descriptions for VCO_RB
Bits
Bit Name
Settings
Description
Reset
Access
[5:0]
VCO_BAND
Read back output of BANDCAL mux
0x00
R
Address: 0x49, Reset: 0x16BD, Name: VCO_CTL3
Table 39. Bit Descriptions for VCO_CTL3
Bits
Bit Name
Settings
Description
Reset
Access
[13:9]
SET_1
Internal settings (refer to the Required PLL/VCO Settings and Register Write
Sequence section)
0xB
RW
[8:0]
SET_0
Internal settings (refer to the Required PLL/VCO Settings and Register Write
Sequence section)
0xBD
RW
