Data Sheet
ADRF6820
Rev. C | Page 37 of 45

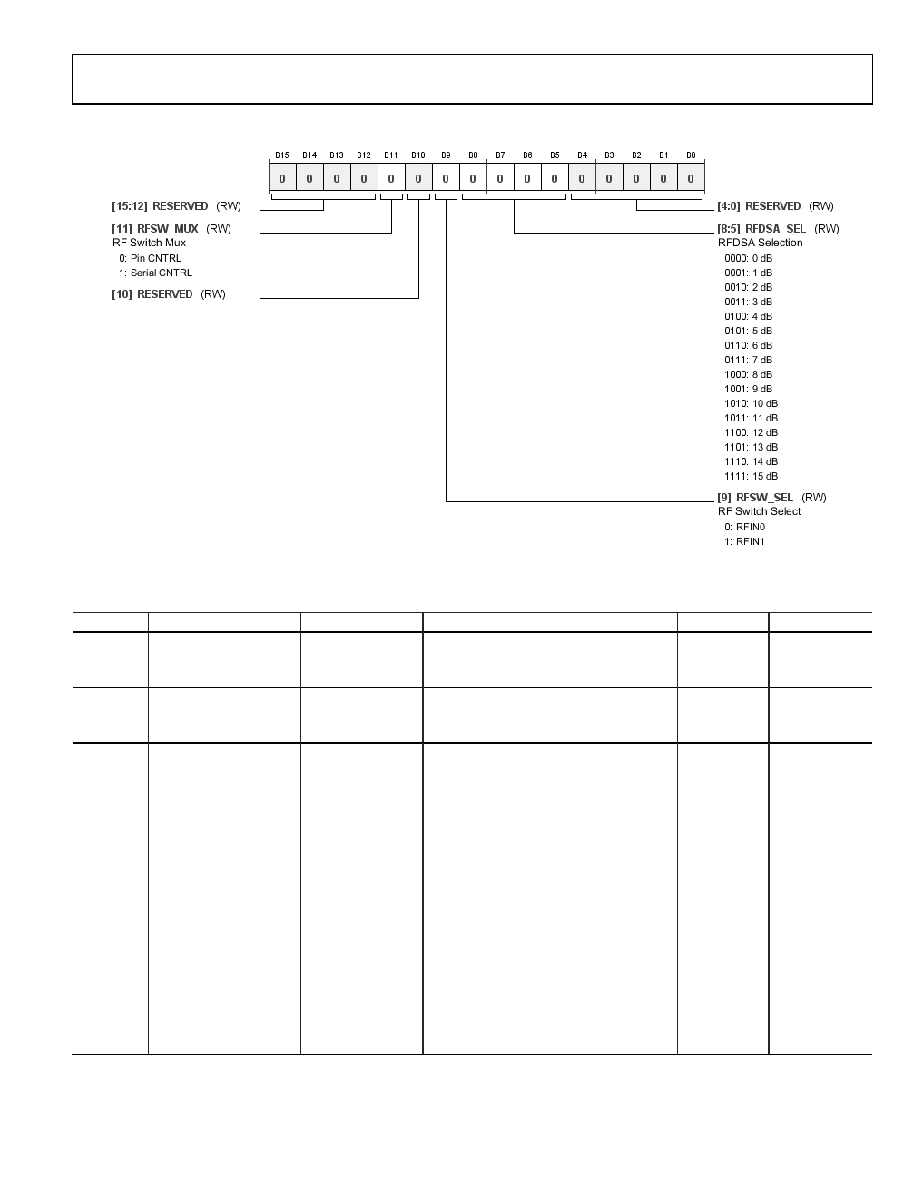

Address: 0x23, Reset: 0x0000, Name: DGA_CTL
Table 27. Bit Descriptions for DGA_CTL
Bits
Bit Name
Settings
Description
Reset
Access
11
RFSW_MUX
RF switch mux
0x0
RW
0
Pin control (CNTRL)
1
Serial control (CNTRL)
9
RFSW_SEL
RF switch select
0x0
RW
0
RFIN0
1
RFIN1
[8:5]
RFDSA_SEL
RFDSA selection
0x0
RW
0000
0 dB
0001
1 dB
0010
2 dB
0011
3 dB
0100
4 dB
0101
5 dB
0110
6 dB
0111
7 dB
1000
8 dB
1001
9 dB
1010
10 dB
1011
11 dB
1100
12 dB
1101
13 dB
1110
14 dB
1111
15 dB
